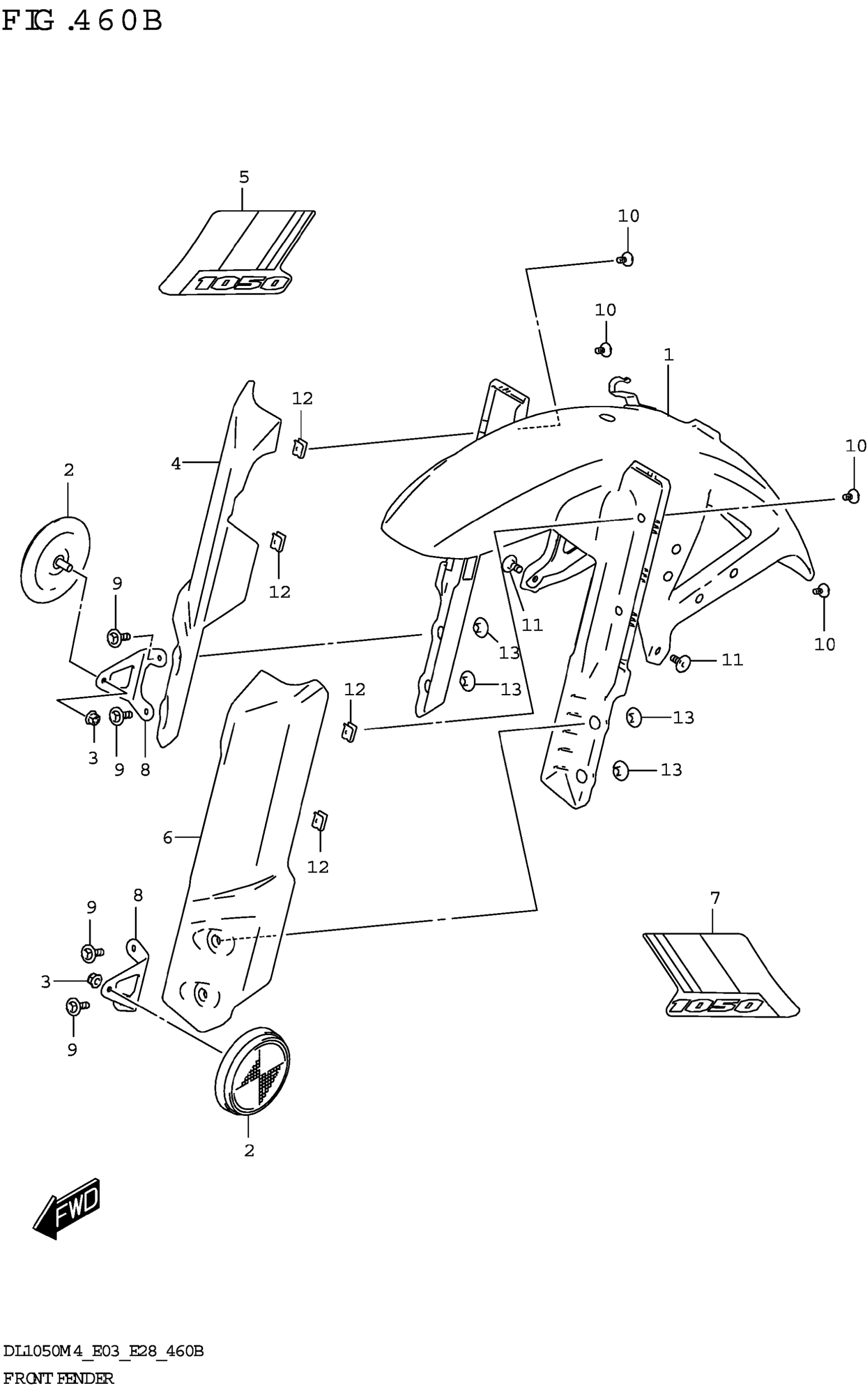

Suzuki DL1050RJM4 (2024) FRONT FENDER (DL1050RJ) Diagram

#

Description
Price

1

FENDER,FRONT

53110-06L00

$294.20

2

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$11.41

3

NUT

08319-3105B

$3.25

4-1

COVER,FR FENDER SIDE,R (YELLO | ) BODY COLOR:CD8

53120-06L00-YU1

$84.15

4-2

COVER,FR FENDER SIDE,R (WHITE | BODY COLOR:JWN

53120-06L00-30H

$84.55

4-3

COVER,FR FENDER SIDE,R (BLACK | BODY COLOR:KGL

53120-06L00-019

$84.15

5-1

.TAPE,FRONT FENDER,R | BODY COLOR:CD8

68151-06L00-CGS

$26.83

5-2

.TAPE,FRONT FENDER,R (BLACK,B | UE,WHITE) BODY COLOR:JWN

68151-06L00-BCN

$26.83

5-3

.TAPE,FRONT FENDER,R | BODY COLOR:KGL

68151-06L00-CGT

$26.83

6-1

COVER,FR FENDER SIDE,L (YELLO | ) BODY COLOR:CD8

53130-06L00-YU1

$85.73

6-2

COVER,FR FENDER SIDE,L (WHITE | BODY COLOR:JWN

53130-06L00-30H

$86.15

6-3

COVER,FR FENDER SIDE,L (BLACK | BODY COLOR:KGL

53130-06L00-019

$85.73

7-1

.TAPE,FRONT FENDER,L | BODY COLOR:CD8

68161-06L00-CGS

$26.83

7-2

.TAPE,FRONT FENDER,L (BLACK,B | UE,WHITE) BODY COLOR:JWN

68161-06L00-BCN

$26.83

7-3

.TAPE,FRONT FENDER,L | BODY COLOR:KGL

68161-06L00-CGT

$26.83

8

BRACKET,FRONT SIDE RR

47451-06L00

$14.97

9

BOLT (6X20)

09116-06188

$2.25

10

SCREW (5X13)

09139-05092

$2.22

11

SCREW (6X16)

09139-06221

$3.62

12

NUT (M5)

09148-05052

$3.04

13

SPACER,6X9.8X6 (6X9.8X6)

09180-06086

$2.72
