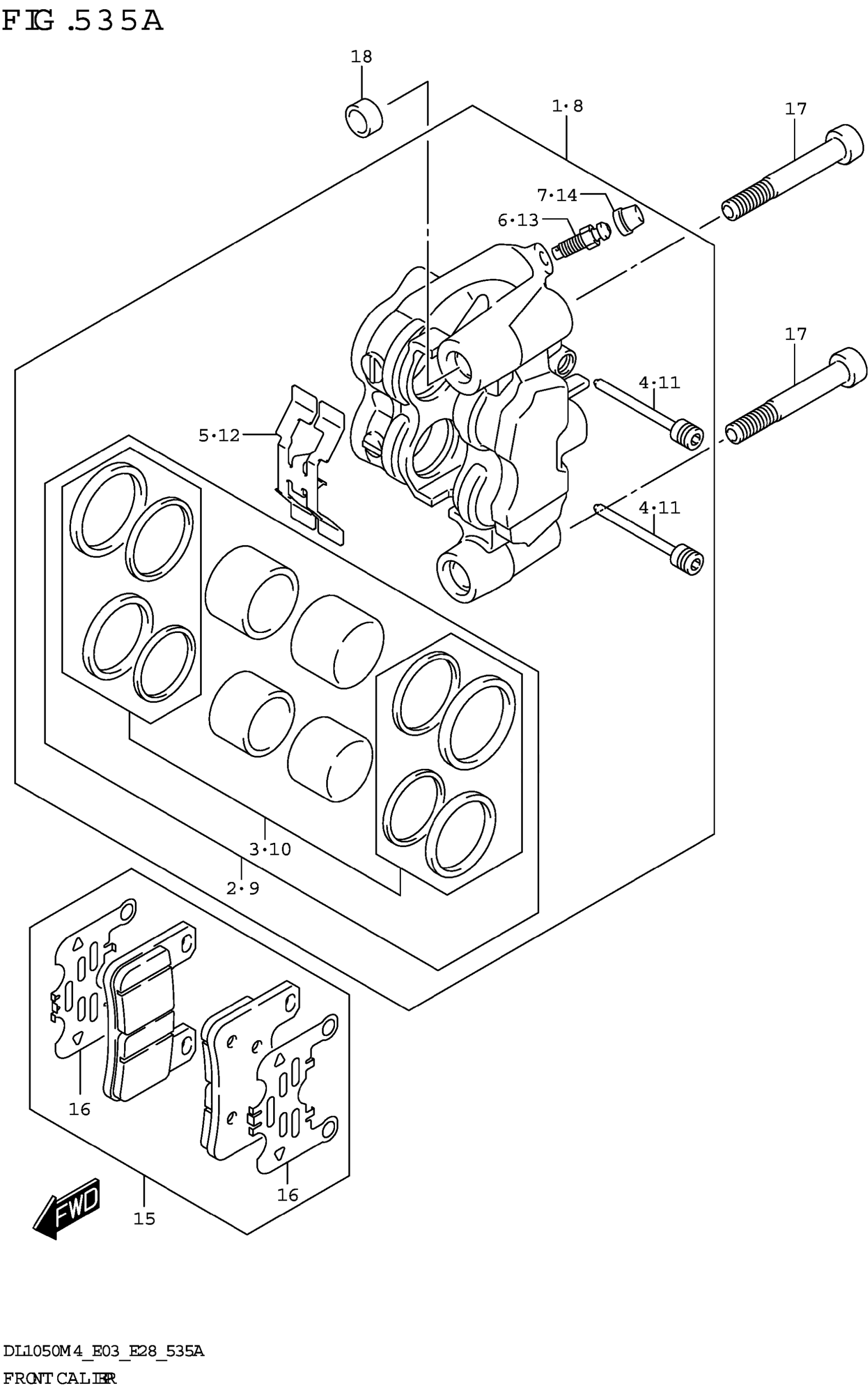

Suzuki DL1050RJM4 (2024) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FR RH

59100-31J00-999

$537.27

2

.PISTON SET

59100-31810

$142.88

3

..SEAL SET,PISTON

59101-47810

$94.55

4

.PIN

59141-41G10

$26.99

5

.SPRING,PAD

59151-29G00

$12.48

6

.BLEEDER

59121-18410

$8.73

7

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$5.17

8

CALIPER ASSY,FR LH

59300-31J00-999

$550.70

9

.PISTON SET

59100-31810

$142.88

10

..SEAL SET,PISTON

59101-47810

$94.55

11

.PIN

59141-41G10

$26.99

12

.SPRING,PAD

59151-29G00

$12.48

13

.BLEEDER

59121-18410

$8.73

14

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$5.17

15

PAD & SHIM SET

59100-31820

$77.44

16

.SHIM

59171-31J00

Unavailable

17

BOLT

09106-10096

$4.25

18

PIN,CALIPER

59151-41G00

$11.64
