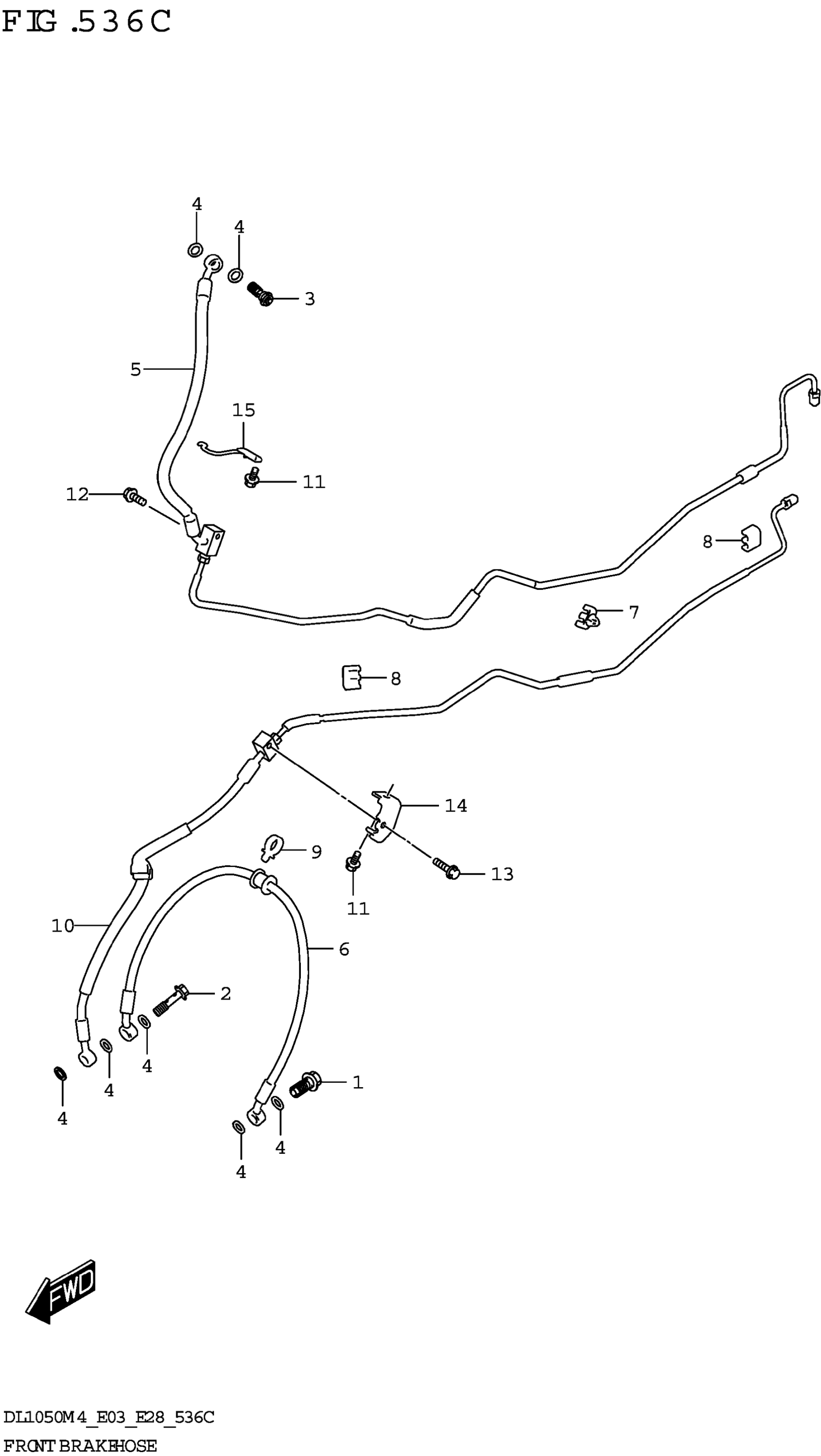

Suzuki DL1050RJM4 (2024) FRONT BRAKE HOSE (DL1050RR) Diagram

#

Description
Price

1

UNION This part replaces 09360-10042.

09360-10062

$5.81

2

UNION

09360-10069

$6.75

3

UNION (10X1.25X22)

09360-10053

$9.70

4

WASHER (10X15X1.5)

09161-10009

$1.83

5

HOSE ASSY,FR BK MASTER TO UNI

59200-06L60

$92.88

6

HOSE,FR BK CLPR TO CLPR

59240-06L00

$98.75

7

CLAMP

09403-07344

$2.72

8

CLAMP

09403-06324

Unavailable

9

CLAMP

09403-16412

$3.08

10

HOSE ASSY,FR UNIT TO BK CLPR

59400-06L60

$89.85

11

BOLT

01547-0612B

$1.22

12

BOLT

01547-0616B

$2.43

13

BOLT

01547-0625B

$2.43

14

CLAMP,FR BRAKE HOSE NO.1

59261-06L00

$11.93

15

GUIDE,FR BRAKE HOSE

59260-06L00

$13.70
