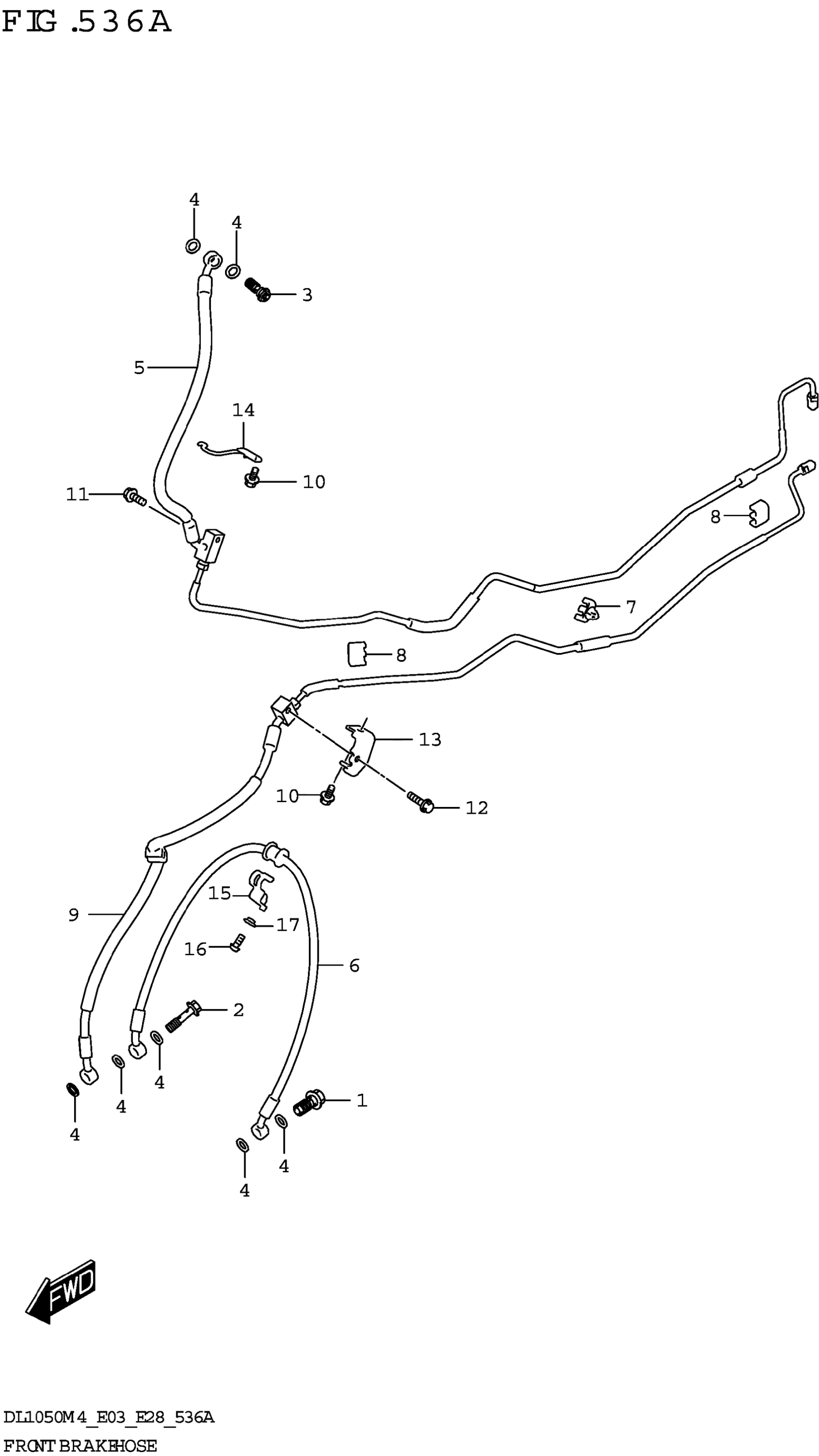

Suzuki DL1050RJM4 (2024) FRONT BRAKE HOSE (DL1050RJ) Diagram

#

Description
Price

1

UNION This part replaces 09360-10042.

09360-10062

$6.43

2

UNION

09360-10069

$6.20

3

UNION (10X1.25X22)

09360-10053

$8.92

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE ASSY,FR BK MASTER TO UNI

59200-06L40

$87.43

6

HOSE,FR BK CLPR TO CLPR

59240-06L20

$43.50

7

CLAMP

09403-07344

$2.50

8

CLAMP

09403-06324

Unavailable

9

HOSE ASSY,FR UNIT TO BK CLPR

59400-06L40

$83.05

10

BOLT

01547-0612B

$1.49

11

BOLT

01547-0616B

$2.45

12

BOLT

01547-0625B

$2.45

13

CLAMP,FR BRAKE HOSE NO.1

59261-06L00

$10.58

14

GUIDE,FR BRAKE HOSE

59260-06L00

$12.13

15

CLAMP,FR BK HOSE NO.3

59270-15H00

$12.82

16

BOLT (6X14)

09103-06281

$2.95

17

WASHER

09169-06082

$4.32
