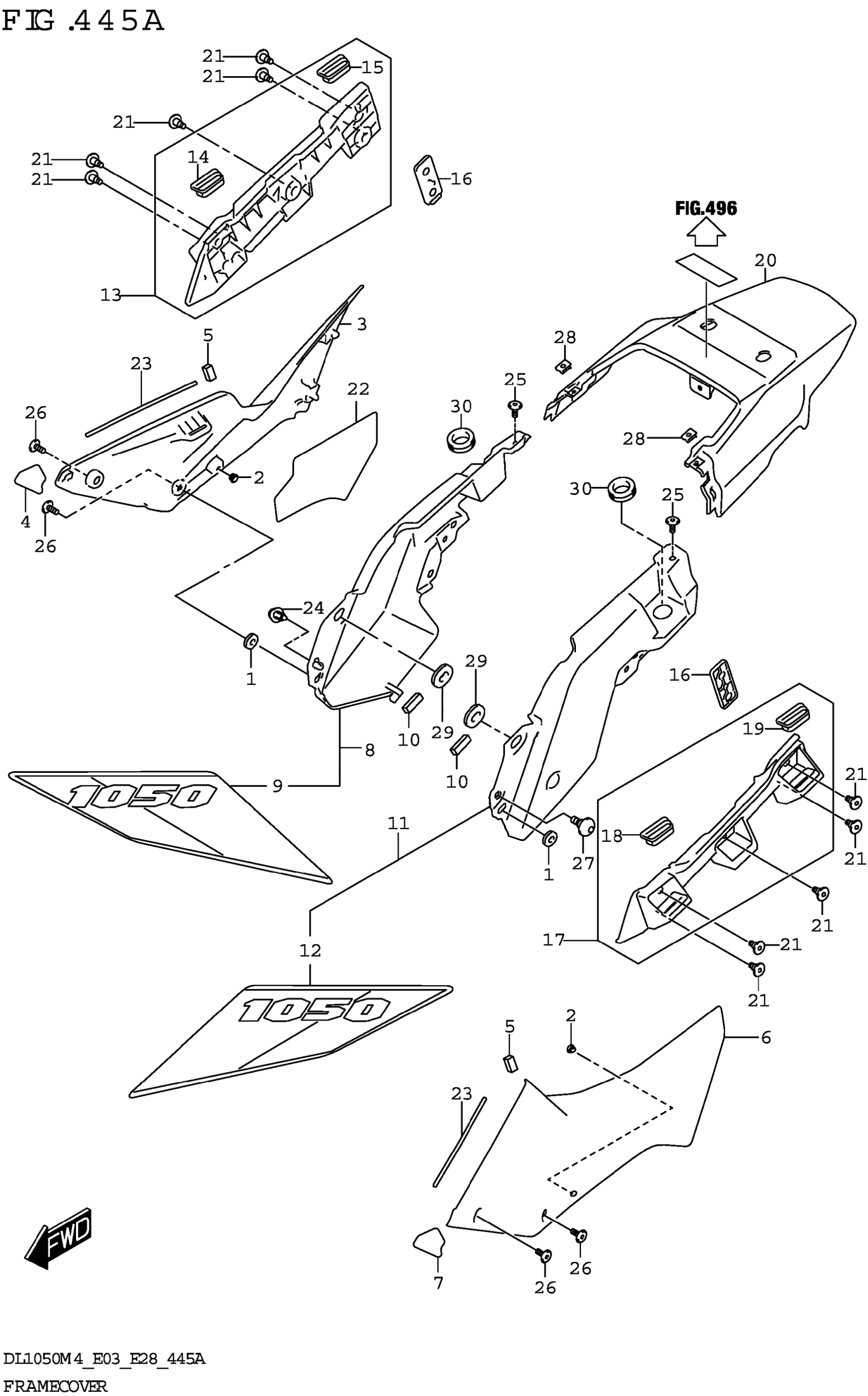

Suzuki DL1050RJM4 (2024) FRAME COVER (DL1050RR) Diagram

#

Description
Price

1

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$4.16

2

CUSHION,SEAT MOUNT

45148-27J00

$17.72

3

COVER,FRAME FRONT,R

47111-06L30

$69.37

4

PROTECTOR,FRAME COVER RH

47121-06L00

$43.98

5

CUSHION,FRAME COVER FR RR

47131-06L00

$5.87

6

COVER,FRAME FRONT,L

47211-06L30

$69.37

7

PROTECTOR,FRAME COVER LH

47221-06L00

$13.90

8-1

COVER,FRAME,R (ORANGE) | BODY COLOR:CGH

47310-06L20-QRE

Unavailable

8-2

COVER,FRAME,R (BLUE) | BODY COLOR:CGJ

47310-06L20-YKY

Unavailable

8-3

COVER,FRAME,R (BLACK) | BODY COLOR:A3X

47310-06L20-6UX

Unavailable

8-4

COVER,FRAME,R | BODY COLOR:CQX

47310-06L20-CRX

Unavailable

9-1

.TAPE,FRAME COVER,R | BODY COLOR:CGH

68135-06L20-CHN

$25.95

9-2

.TAPE,FRAME COVER,R (WHITE,BL | CK,BLUE) BODY COLOR:CGJ

68135-06L20-CGN

$25.95

9-3

.TAPE,FRAME COVER,R (GRAY,BLU | ,BLACK) BODY COLOR:A3X

68135-06L20-CHP

$25.95

9-4

.TAPE,FRAME COVER,R | BODY COLOR:CQX

68135-06L20-CHQ

$25.95

10

CUSHION,FRM COV SIDE NO.5

47312-06L00

$6.22

11-1

COVER,FRAME,L (ORANGE) | BODY COLOR:CGH

47350-06L20-QRE

Unavailable

11-2

COVER,FRAME,L (BLUE) | BODY COLOR:CGJ

47350-06L20-YKY

Unavailable

11-3

COVER,FRAME,L (BLACK) | BODY COLOR:A3X

47350-06L20-6UX

Unavailable

11-4

COVER,FRAME,L | BODY COLOR:CQX

47350-06L20-CRX

Unavailable

12-1

.TAPE,FRAME COVER,L | BODY COLOR:CGH

68145-06L20-CHN

$25.95

12-2

.TAPE,FRAME COVER,L (WHITE,BL | CK,BLUE) BODY COLOR:CGJ

68145-06L20-CGN

$25.95

12-3

.TAPE,FRAME COVER,L (GRAY,BLU | ,BLACK) BODY COLOR:A3X

68145-06L20-CHP

$25.95

12-4

.TAPE,FRAME COVER,L | BODY COLOR:CQX

68145-06L20-CHQ

$25.95

13

BRKT,SIDE CASE UPR RH

47510-06L00

$71.85

14

.BUSH,SIDE CASE BRKT FR RH

47811-06L00

$6.88

15

.BUSH,SIDE CASE BRKT RR RH

47911-06L00

$6.88

16

SPACER,FRAME COVER

47510-28K00

$17.72

17

BRKT,SIDE CASE UPR LH

47610-06L00

$71.85

18

.BUSH,SIDE CASE BRKT FR LH

47812-06L00

$6.88

19

.BUSH,SIDE CASE BRKT RR LH

47912-06L00

$6.88

20-1

COVER,FRAME CTR (ORANGE) | BODY COLOR:CGH

47711-06L00-QRE

$220.78

20-2

COVER,FRAME CENTER (BLUE) | BODY COLOR:CGJ

47711-06L00-YKY

$156.07

20-3

COVER,FRAME CTR (BLACK) | BODY COLOR:A3X

47711-06L00-YVB

$190.70

20-4

COVER,FRAME CENTER (GRAY) | BODY COLOR:CQX

47711-06L00-QT7

$156.07

21

SCREW

47913-06L00

$1.65

22

HEATSHIELD,FRAME COVER,R

47113-06L10

$22.42

23

CUSHION,FRAME COVER

94417-24F00

$5.78

24

CLIP

94479-35F00

$5.62

25

SCREW (5X13)

09139-05091

$2.03

26

SCREW (5X13)

09139-05091

$2.03

27

SCREW (6X16)

09139-06169

$3.10

28

NUT (M5)

09148-05052

$3.37

29

CUSHION

09320-08029

$2.41

30

CUSHION (20X32X9)

09320-20011

$2.69
