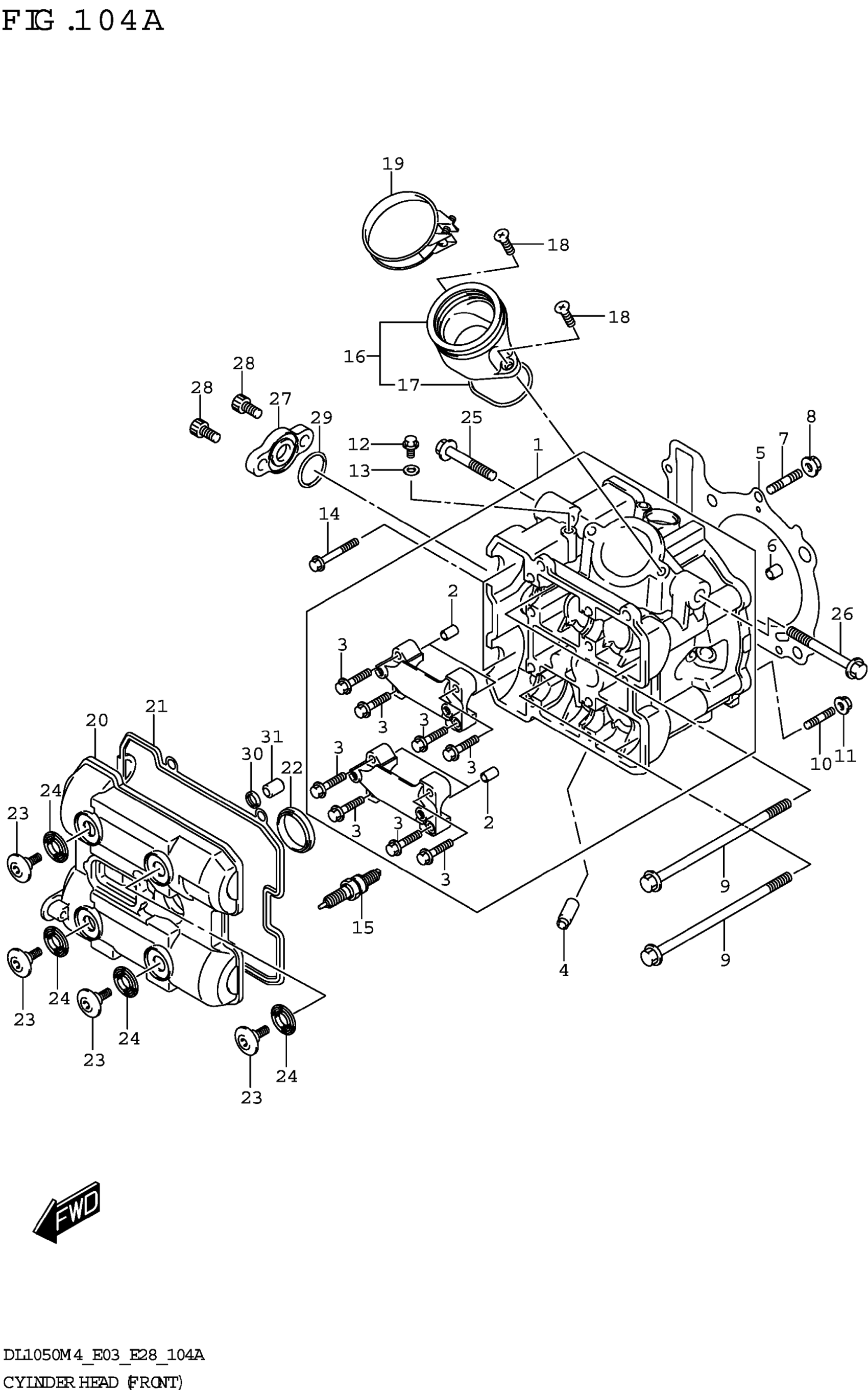

Suzuki DL1050RJM4 (2024) CYLINDER HEAD (FRONT) (DL1050RR) Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER FRONT

11100-31J20

$1,008.28

2

.PIN (8X11)

09206-08001

$1.77

3

.BOLT (6X40)

09103-06266

$2.13

4

GUIDE,VALVE (OS:0.3)

11115-32E70

$44.28

5

.GASKET,CYLINDER HEAD

11141-31J00

$58.90

6

PIN (10.4X13X18)

04211-13189

$2.19

7

BOLT,STUD (L:35)

09108-08143

$4.12

8

NUT

08316-1008B

$2.65

9

BOLT,CYLINDER HEAD,L165 (10X1 | 5)

11117-33H00

$20.13

10

BOLT,STUD (6X30)

09108-06096

Unavailable

11

NUT

08316-1006B

$2.50

12

BOLT

01550-0612A

$1.97

13

GASKET (5.8X13X1.2)

09168-06023

$2.01

14

BOLT (6X60)

09103-06220

$2.68

15

PLUG,SPARK (LMAR8BI-9)

09482-00635

$21.76

16

PIPE ASSY,INTAKE FRONT

13101-06L00

$67.95

17

.O-RING (D:2.4,ID:55.6)

09280-55005

$5.88

18

SCREW

02122-0616B

$1.98

19

CLAMP

13826-22H00

$5.23

20

COVER,CYLINDER HEAD FRONT

11171-06L00

$311.18

21

.GASKET,CYL HEAD COVER NO.1

11173-02F00

$33.68

22

.GASKET,CYL HEAD COVER NO.2

11178-17E00

$6.08

23

BOLT (7X17.5)

09106-07021

$4.07

24

WASHER,CYL HEAD COVER (10.6X2 | .5X1.6)

11191-27E00

$3.72

25

BOLT

01550-1050A

$3.50

26

BOLT

01550-1070A

$4.03

27

COVER,CYL HEAD NO.2

11134-31J10

$26.40

28

BOLT (6X12)

09106-06075

$2.50

29

O-RING (D:2.4,ID:19)

09280-19005

$2.55

30

.GASKET,2ND AIR PASSAGE

11182-35F10

$4.11

31

PIN (8.2X10X13)

09206-10016

$7.36
