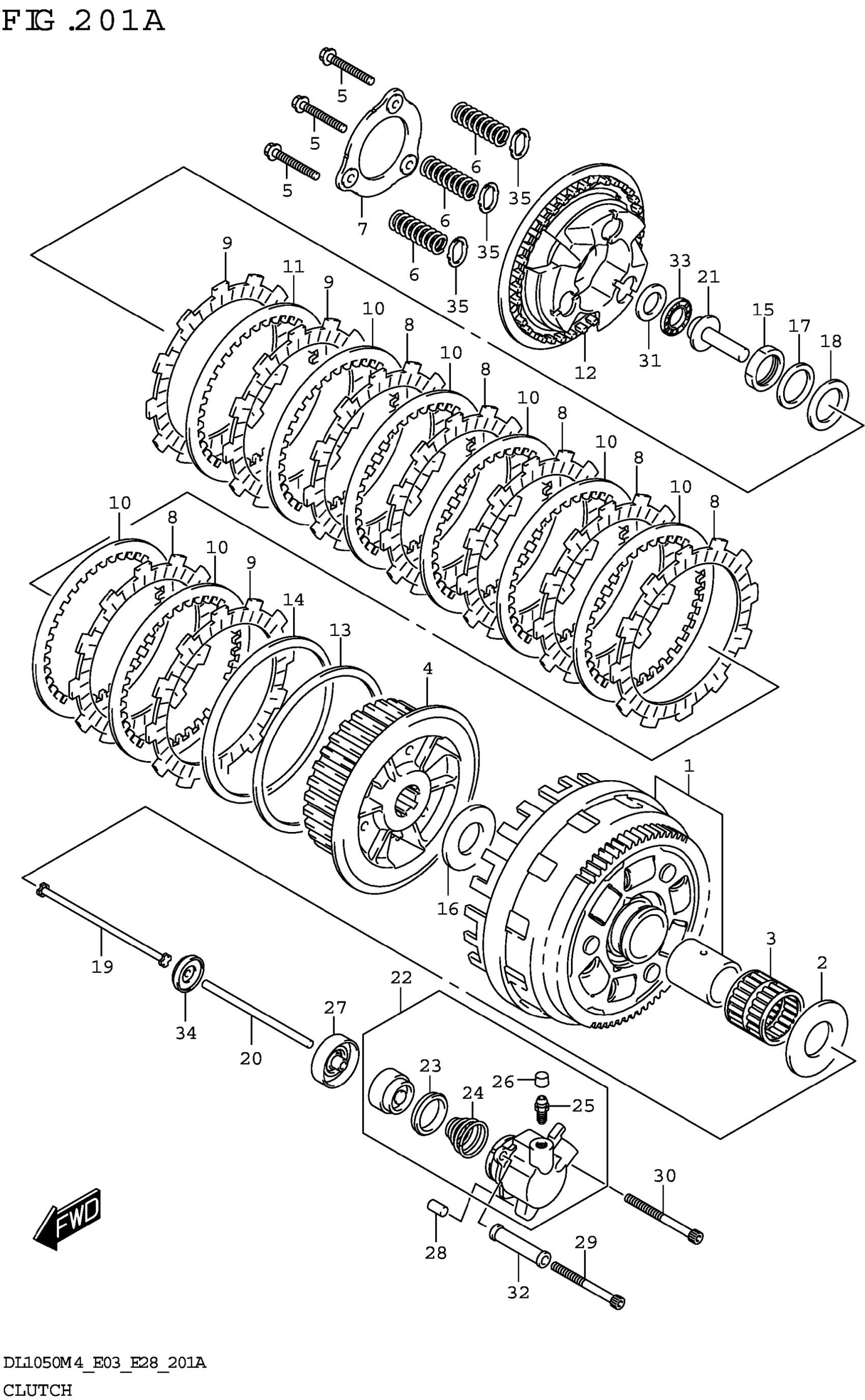

Suzuki DL1050RJM4 (2024) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY,PRIMARY DRIVEN

21200-31Y20

$332.37

2

WASHER (25X52X2.5)

09160-25074

$7.82

3

BEARING (35X40X39.8)

09263-35013

$35.56

4

.HUB,CLUTCH SLEEVE

21411-31J10

$147.07

5

.BOLT,CLUTCH SPRING

21412-31J00

$4.12

6

.SPRING,CLUTCH

21413-31J10

$5.23

7

.PLATE,STOPPER

21414-31J00

$19.43

8

.PLATE,CLUTCH DRIVE NO.1

21441-31J10

$20.30

9

.PLATE,CLUTCH DRIVE NO.2 (T:3 | 8)

21442-31J00

$24.15

10

.PLATE,CLUTCH DRIVEN NO.1 (T: | .0)

21451-24F00

$11.59

11

.PLATE,CLUTCH DRIVEN NO.2 (T: | .0)

21452-31J00

$14.75

12

.DISC,CLUTCH PRESSURE

21462-31J10

$98.92

13

.SEAT,WAVE WASHER

21471-24F00

$14.26

14

.WASHER,CLUTCH PLATE WAVE

21472-24F00

$15.50

15

NUT

09159-24010

$13.22

16

.WASHER (25X50X2.5)

09160-25056

$11.61

17

WASHER (24.2X35X2.7)

09164-24008

$4.60

18

SHIM (25X38X1)

09181-25223

$3.21

19

ROD,CLUTCH (L:161)

23110-27A00

$21.09

20

ROD,CLUTCH PUSH,L (L:132.5)

23111-26D00

$15.88

21

PIECE,CLUTCH PUSH

23121-31E00

$23.92

22

CYLINDER,CLUTCH RELEASE

23160-06G21

$106.74

23

.CUP

23163-06B00

$7.22

24

.SPRING

23164-05A00

$4.34

25

.BLEEDER

59121-01A00

$8.73

26

.CAP,BLEEDER

59122-01A00

$4.34

27

COVER,DUST

23166-06G10

$18.08

28

PIN

04221-08149

$1.96

29

BOLT

07130-0665B

$3.79

30

BOLT

07130-0670B

$3.89

31

WASHER (15.5X28X1)

09160-15045

$3.89

32

SPACER,CL RLSE CYL

23171-06G00

$8.13

33

BEARING (15X28X2)

09263-15003

$8.29

34

SEAL,OIL (6X34X10.5)

09283-06008

$16.80

35

.SEAT,CLUTCH SPRING

21415-31J00

$15.45
