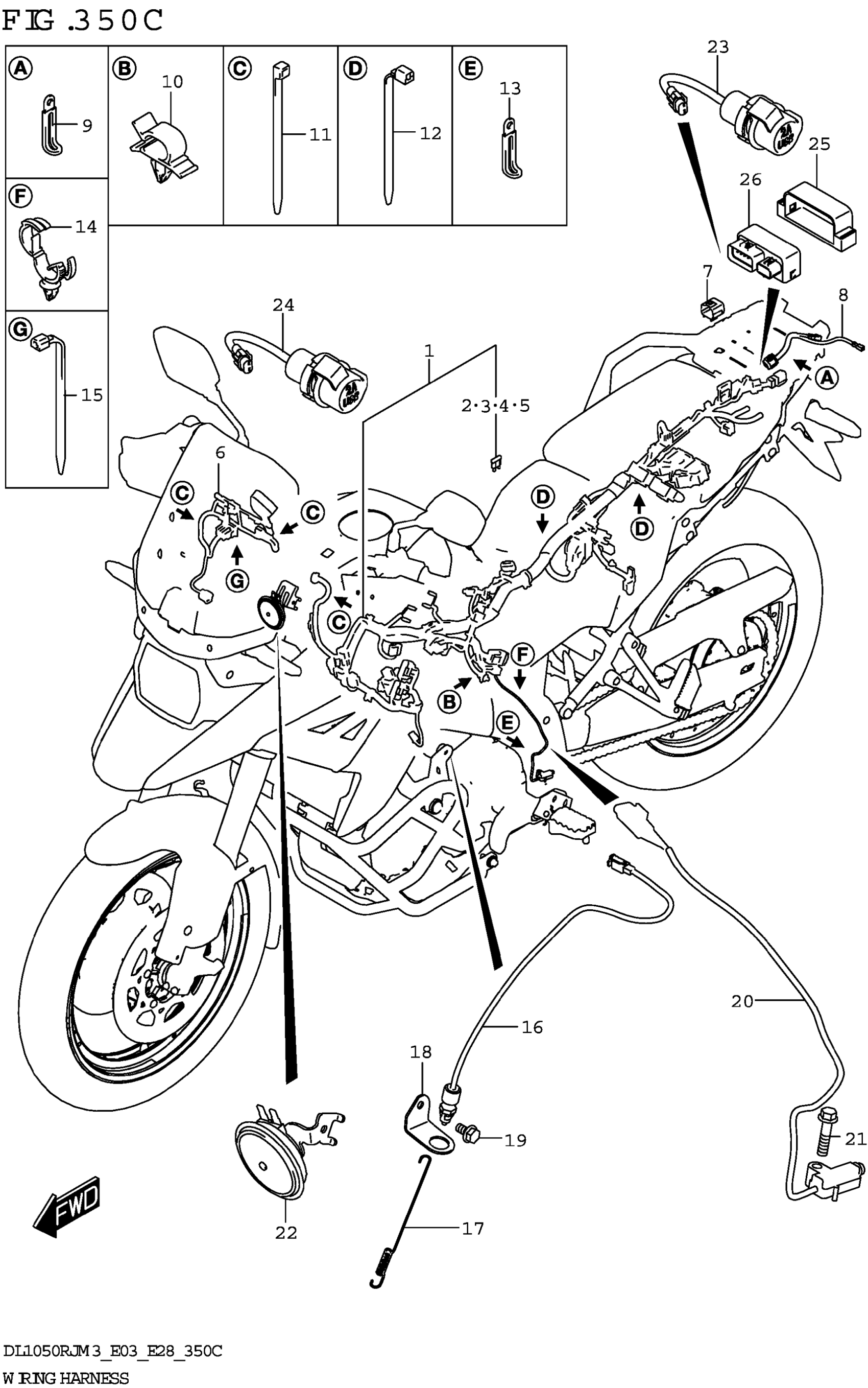

Suzuki DL1050RJM3 (2023) WIRING HARNESS (DL1050RR) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-06L60

$845.48

2

.FUSE (5A)

09481-05501

Unavailable

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.FUSE (30A)

09481-30504

$2.00

6

HARNESS,WIRING NO.2

36620-06L10

$196.18

7

CAP,OBD CONNECTOR

36654-28K00

$8.72

8

WIRE,REAR TURNSIGNAL LEAD

36856-06L00

$38.27

9

CLAMP (L:45)

09404-06429

$1.83

10

CLAMP

09403-10319

Unavailable

11

CLAMP (L:145)

09407-14407

$3.57

12

CLAMP (L:190)

09407-19401

$3.05

13

CLAMP (L:45)

09404-08211

$2.35

14

CLAMP

09403-13311

Unavailable

15

CLAMP (L:125)

09407-14403

$2.26

16

SWITCH ASSY,STOP LAMP

37740-06L00

$17.02

17

SPRING,STOP LAMP SWITCH

43259-31J00

$6.82

18

BRACKET,STOP LAMP SWITCH

43251-31J00

$7.47

19

BOLT

01550-0612A

$1.97

20

SWITCH ASSY,SIDE STAND

37840-06L00

$82.65

21

BOLT (8X35)

09103-08357

$4.17

22

HORN ASSY

38500-06L00

$62.37

23

TERMINAL,POWER SOURCE

38850-31J00

$73.47

24

SOCKET,USB

39105-06L00

$87.08

25

HOLDER,RELAY

36744-06L10

$11.10

26

RELAY ASSY

38860-06L00

$134.80
