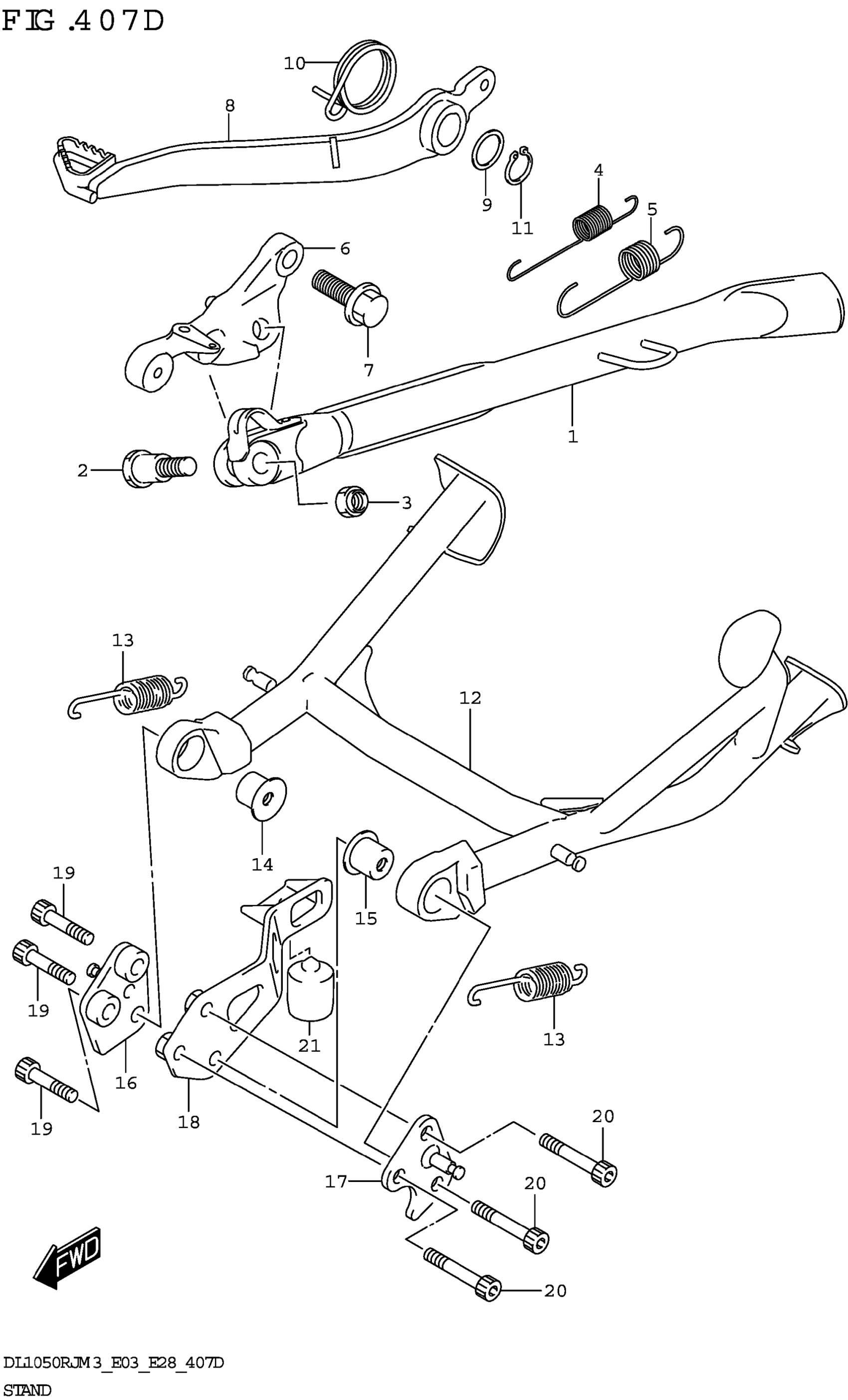

Suzuki DL1050RJM3 (2023) STAND (DL1050RJ) Diagram

#

Description
Price

1

STAND,PROP

42310-31J30

$115.13

2

BOLT (10X37.5)

09111-10058

$6.66

3

NUT, PROP STAND

42321-03FK0

$5.17

4

SPRING

09443-14058

$5.64

5

SPRING

09443-19011

$5.75

6

BRACKET,PROP STAND

42330-06L00

$138.72

7

BOLT,PROP STAND BRACKET

01550-1235B

$3.07

8

PEDAL,BRAKE

43111-06L00

$155.57

9

WASHER (18X24X1.0)

09160-18022

$2.92

10

SPRING

09448-41006

$4.87

11

CIRCLIP

08331-3118A

$2.13

12

STAND,CENTER

42100-06L00

$288.57

13

SPRING,CENTER STAND

42241-06L00

$6.12

14

SPACER,CENTER STAND RH

42253-31J10

$20.35

15

SPACER,CENTER STAND LH

42254-31J10

$21.57

16

PLATE,CENTER STAND RH

42260-06L10

$51.73

17

PLATE,CENTER STAND LH

42270-31J20

$16.73

18

PLATE,CENTER STAND

42290-31J10

$27.13

19

BOLT

01550-1035B

$2.82

20

BOLT,CENTER STAND LH

42221-06L00

$2.50

21

CUSHION,CENTER STAND

09321-10051

$10.38
