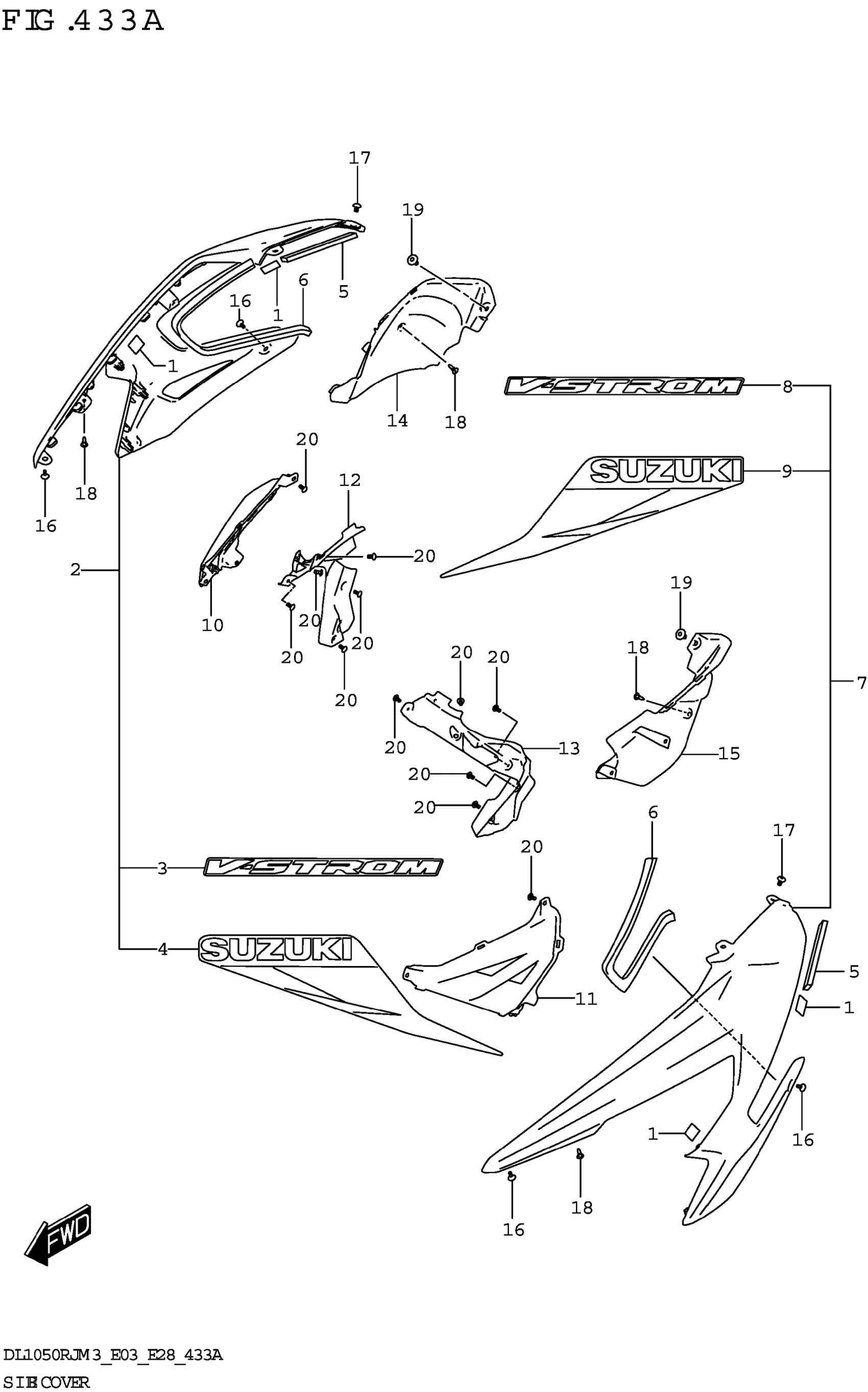

Suzuki DL1050RJM3 (2023) SIDE COVER (DL1050RR) Diagram

#

Description
Price

1

.FASTENER (33X25) | )

44572-13G10

$17.38

2-1

COVER,SIDE,R (GRAY) | BODY COLOR:CB8

94420-06L20-QT7

$201.68

2-2

COVER,SIDE,R (RED) | BODY COLOR:BNR

94420-06L20-YYG

$201.68

2-3

COVER,SIDE,R (BLUE) | BODY COLOR:CGG

94420-06L20-QT8

$201.68

2-4

COVER,SIDE,R (BLACK) | BODY COLOR:KGL

94420-06L20-YVB

$201.68

3-1

.EMBLEM,SIDE COVER,R | BODY COLOR:CB8

68271-06L10-CHL

$18.25

3-2

.EMBLEM,SIDE COVER,R (WHITE,R | D) BODY COLOR:BNR

68271-06L10-CEB

$18.25

3-3

.EMBLEM,SIDE COVER,R | BODY COLOR:CGG

68271-06L10-CHM

$18.25

3-4

.EMBLEM,SIDE COVER,R (GRAY,BL | CK) BODY COLOR:KGL

68271-06L10-BD7

$18.25

4-1

.TAPE,COVER SIDE,R | BODY COLOR:CB8

68275-06L10-CGV

$51.65

4-2

.TAPE,COVER SIDE,R | BODY COLOR:BNR

68275-06L10-CGW

$51.65

4-3

.TAPE,COVER SIDE,R | BODY COLOR:CGG

68275-06L10-CHD

$51.65

4-4

.TAPE,COVER SIDE,R | BODY COLOR:KGL

68275-06L10-CHK

$51.65

5

CUSHION,SIDE COVER NO.1

94425-06L00

$6.82

6

CUSHION,SIDE COVER NO.2

94426-06L00

$8.21

7-1

COVER,SIDE,L (GRAY) | BODY COLOR:CB8

94430-06L20-QT7

$207.40

7-2

COVER,SIDE,L (RED) | BODY COLOR:BNR

94430-06L20-YYG

$207.40

7-3

COVER,SIDE,L (BLUE) | BODY COLOR:CGG

94430-06L20-QT8

$207.40

7-4

COVER,SIDE,L (BLACK) | BODY COLOR:KGL

94430-06L20-YVB

$207.40

8-1

.EMBLEM,SIDE COVER,L | BODY COLOR:CB8

68281-06L10-CHL

$12.95

8-2

.EMBLEM,SIDE COVER,L (WHITE,R | D) BODY COLOR:BNR

68281-06L10-CEB

$18.25

8-3

.EMBLEM,SIDE COVER,L | BODY COLOR:CGG

68281-06L10-CHM

$18.25

8-4

.EMBLEM,SIDE COVER,L (GRAY,BL | CK) BODY COLOR:KGL

68281-06L10-BD7

$18.25

9-1

.TAPE,COVER SIDE | BODY COLOR:CB8

68285-06L10-CGV

$51.65

9-2

.TAPE,COVER SIDE | BODY COLOR:BNR

68285-06L10-CGW

$51.65

9-3

.TAPE,COVER SIDE | BODY COLOR:CGG

68285-06L10-CHD

$51.65

9-4

.TAPE,COVER SIDE | BODY COLOR:KGL

68285-06L10-CHK

$51.65

10

COVER,SIDE NO.2 RH

94441-06L00

$33.87

11

COVER,SIDE NO.2 LH

94451-06L00

$36.56

12

COVER,SIDE INNER LWR RH

94463-06L00

$50.92

13

COVER,SIDE INNER LWR LH

94464-06L00

$50.92

14

COVER,SIDE INNER UPR RH

94471-06L00

$24.42

15

COVER,SIDE INNER UPR LH

94481-06L00

$24.42

16

SCREW (5X13)

09139-05091

$2.01

17

SCREW (6X10)

09139-06172

$2.80

18

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

19

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

20

SCREW

03541-0512B

$1.77
