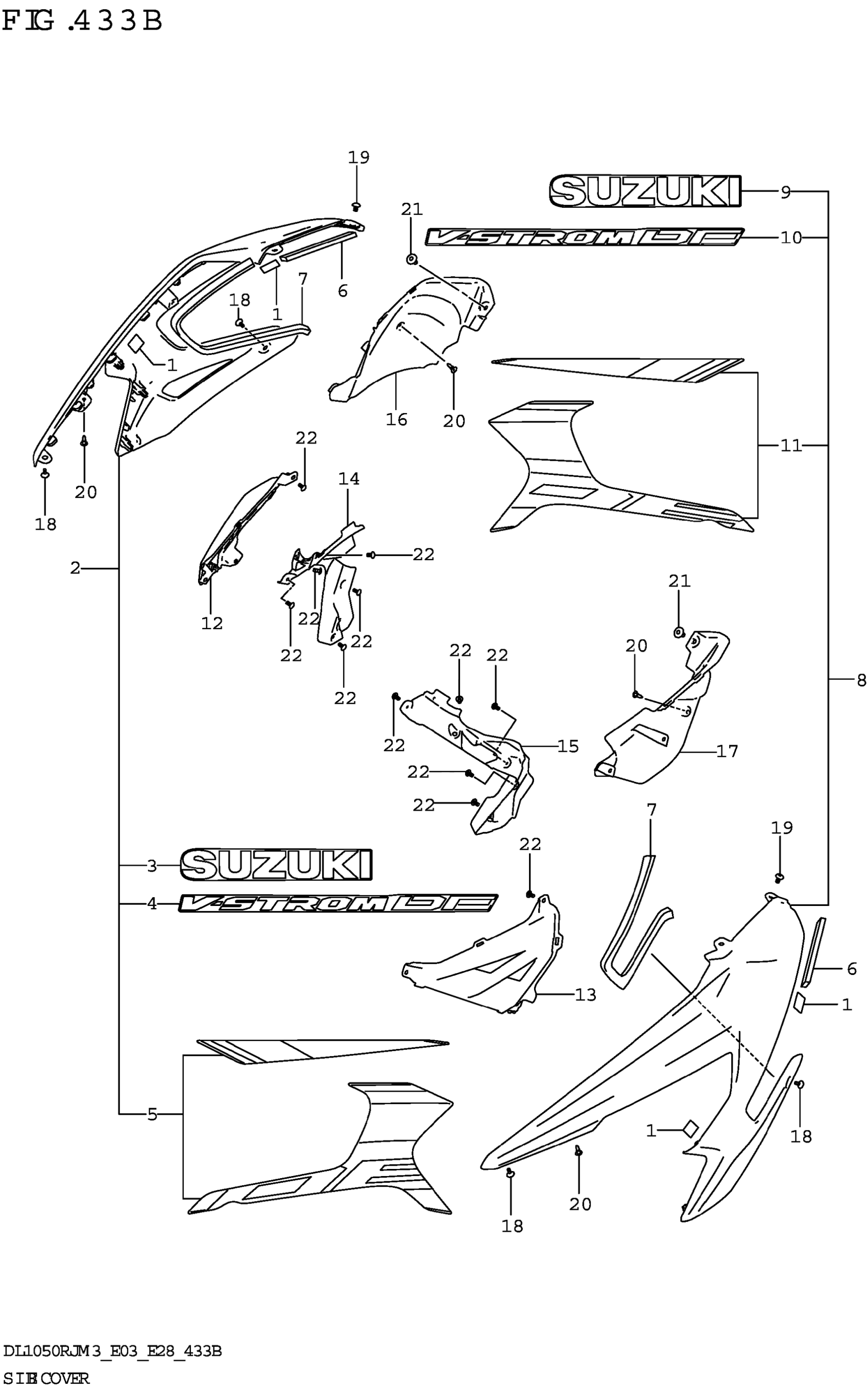

Suzuki DL1050RJM3 (2023) SIDE COVER (DL1050RJ) Diagram

#

Description
Price

1

.FASTENER (33X25) | )

44572-13G10

$17.38

2-1

COVER,SIDE,R (YELLOW) | BODY COLOR:CD8

94420-06L30-YU1

$224.53

2-2

COVER,SIDE,R (BLUE) | BODY COLOR:JWN

94420-06L30-YKY

$224.53

2-3

COVER,SIDE,R (BLACK) | BODY COLOR:KGL

94420-06L30-YVB

$224.53

3-1

.EMBLEM,"SUZUKI",R (YELLOW,BL | CK) BODY COLOR:CD8

68181-06L00-BT1

$21.67

3-2

.EMBLEM,"SUZUKI",R | BODY COLOR:JWN

68181-06L00-EBH

$21.67

3-3

.EMBLEM,"SUZUKI",R (GRAY,BLAC | ) BODY COLOR:KGL

68181-06L00-AA3

$21.67

4-1

.EMBLEM,SIDE COVER,R | BODY COLOR:CD8

68271-06L20-CGQ

$25.30

4-2

.EMBLEM,SIDE COVER,R | BODY COLOR:JWN

68271-06L20-CGR

$25.30

4-3

.EMBLEM,SIDE COVER,R | BODY COLOR:KGL

68271-06L20-CGP

$25.30

5-1

.TAPE SET,SIDE COVER,R | BODY COLOR:CD8

68270-06L00-CGM

$79.38

5-2

.TAPE SET,SIDE COVER,R (WHITE | BODY COLOR:JWN

68270-06L00-CGN

$79.38

5-3

.TAPE SET,SIDE COVER,R | BODY COLOR:KGL

68270-06L00-CGP

$79.38

6

CUSHION,SIDE COVER NO.1

94425-06L00

$6.82

7

CUSHION,SIDE COVER NO.2

94426-06L00

$8.21

8-1

COVER,SIDE,L (YELLOW) | BODY COLOR:CD8

94430-06L30-YU1

$230.90

8-2

COVER,SIDE,L (BLUE) | BODY COLOR:JWN

94430-06L30-YKY

$230.90

8-3

COVER,SIDE,L (BLACK) | BODY COLOR:KGL

94430-06L30-YVB

$230.90

9-1

.EMBLEM,"SUZUKI",L (YELLOW,BL | CK) BODY COLOR:CD8

68191-06L00-BT1

$21.67

9-2

.EMBLEM,"SUZUKI",L | BODY COLOR:JWN

68191-06L00-EBH

$21.67

9-3

.EMBLEM,"SUZUKI",L (GRAY,BLAC | ) BODY COLOR:KGL

68191-06L00-AA3

$21.67

10-1

.EMBLEM,SIDE COVER,L | BODY COLOR:CD8

68281-06L20-CGQ

$25.30

10-2

.EMBLEM,SIDE COVER,L | BODY COLOR:JWN

68281-06L20-CGR

$25.30

10-3

.EMBLEM,SIDE COVER,L | BODY COLOR:KGL

68281-06L20-CGP

$25.30

11-1

.TAPE SET,SIDE COVER,L | BODY COLOR:CD8

68280-06L00-CGM

$79.38

11-2

.TAPE SET,SIDE COVER,L (WHITE | BODY COLOR:JWN

68280-06L00-CGN

$79.38

11-3

.TAPE SET,SIDE COVER,L | BODY COLOR:KGL

68280-06L00-CGP

$79.38

12

COVER,SIDE NO.2 RH

94441-06L00

$33.87

13

COVER,SIDE NO.2 LH

94451-06L00

$36.56

14

COVER,SIDE INNER LWR RH

94463-06L00

$50.92

15

COVER,SIDE INNER LWR LH

94464-06L00

$50.92

16

COVER,SIDE INNER UPR RH

94471-06L00

$24.42

17

COVER,SIDE INNER UPR LH

94481-06L00

$24.42

18

SCREW (5X13)

09139-05091

$2.01

19

SCREW (6X10)

09139-06172

$2.80

20

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

21

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

22

SCREW

03541-0512B

$1.77
