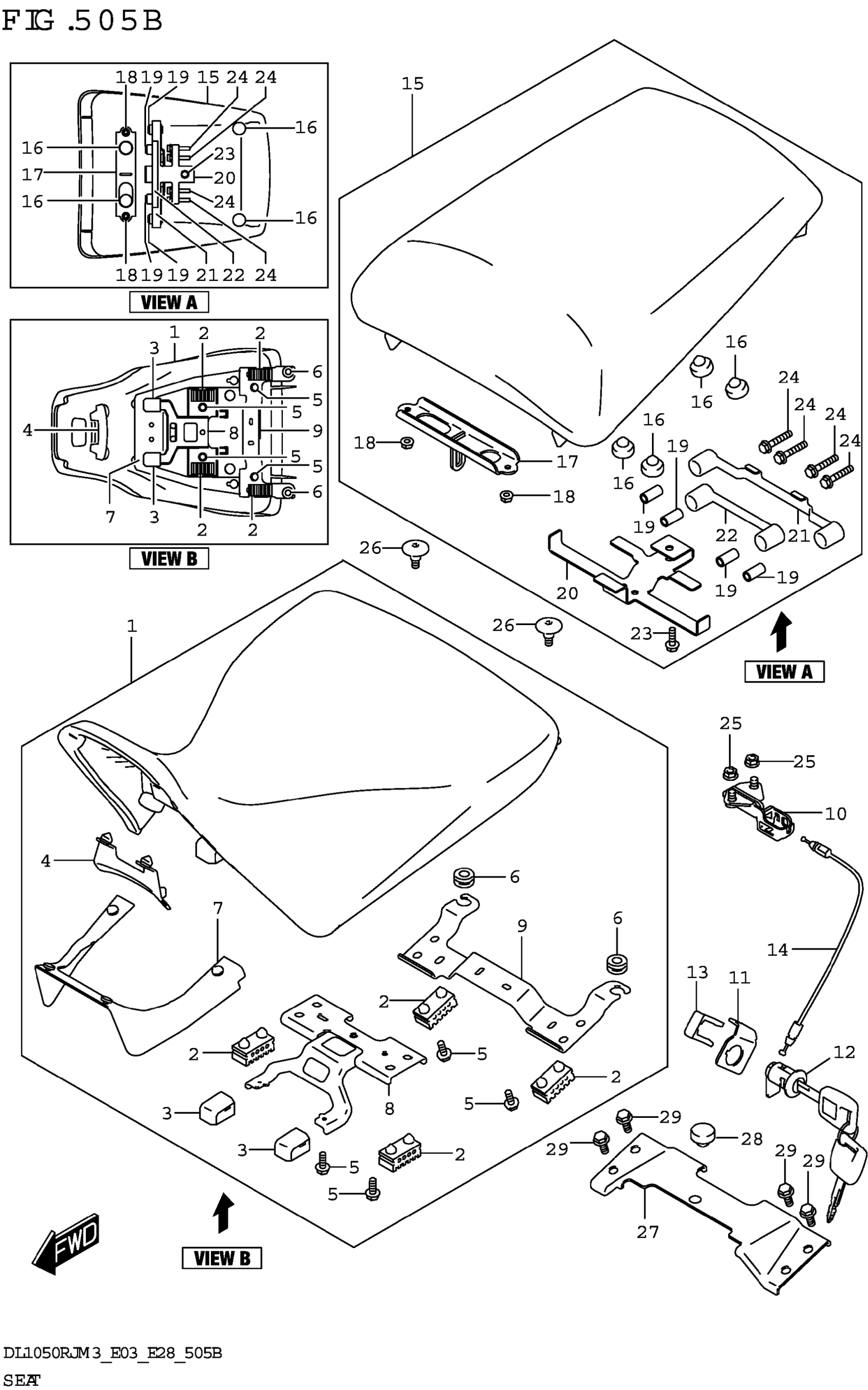

Suzuki DL1050RJM3 (2023) SEAT (DL1050RR) Diagram

#

Description
Price

1

SEAT ASSY (GRAY,BLACK)

45100-06L40-B03

$358.02

2

.CUSHION,SEAT (40X20X15)

45149-31300

$3.26

3

.CUSHION,SEAT HOOK

45141-06L00

$4.95

4

.CUSHION,SEAT MOUNT

45154-06L00

$12.25

5

BOLT

01550-0616A

$1.97

6

.CUSHION

09320-10069

$1.92

7

.SHEET,HEAT SHIELD

45256-06L00

$23.17

8

.FRAME,SEAT NO.2

45452-06L10

Unavailable

9

.FRAME,SEAT NO.1

45451-06L10

$27.97

10

BRACKET,STRIKER SUPPORT

45220-04K20

$35.98

11

GUIDE,SEAT LOCK CABLE

45288-14F00

$4.91

12

LOCK SET,SEAT

95700-14810

$98.21

13

PLATE,SEAT LOCK ASSY

45289-11F00

$5.67

14

CABLE,SEAT LOCK

45280-06L00

$11.78

15

SEAT ASSY,PILLION (GRAY,BLACK

45300-06L10-B03

$447.73

16

CUSHION

09321-10012

$2.80

17

.STRIKER,SEAT LOCK

45290-17K00

$43.82

18

NUT (6X12)

08316-1006A

$2.19

19

.SPACER (6.5X12X21)

09180-06314

$4.62

20

.PLATE,SEAT

45321-06L00

$37.30

21

.SPACER,SEAT NO.1

45312-06L00

$9.85

22

.SPACER,SEAT NO.2

45313-06L00

$9.33

23

BOLT (6X20)

01550-0620A

$1.97

24

BOLT

01550-0635A

$2.31

25

NUT (6X12)

08316-1006A

$2.19

26

SCREW (6X20)

09139-06193

$3.82

27

BRIDGE,SEAT

45121-06L10

$19.13

28

CUSHION

09321-10012

$2.80

29

BOLT

01550-0616A

$1.97
