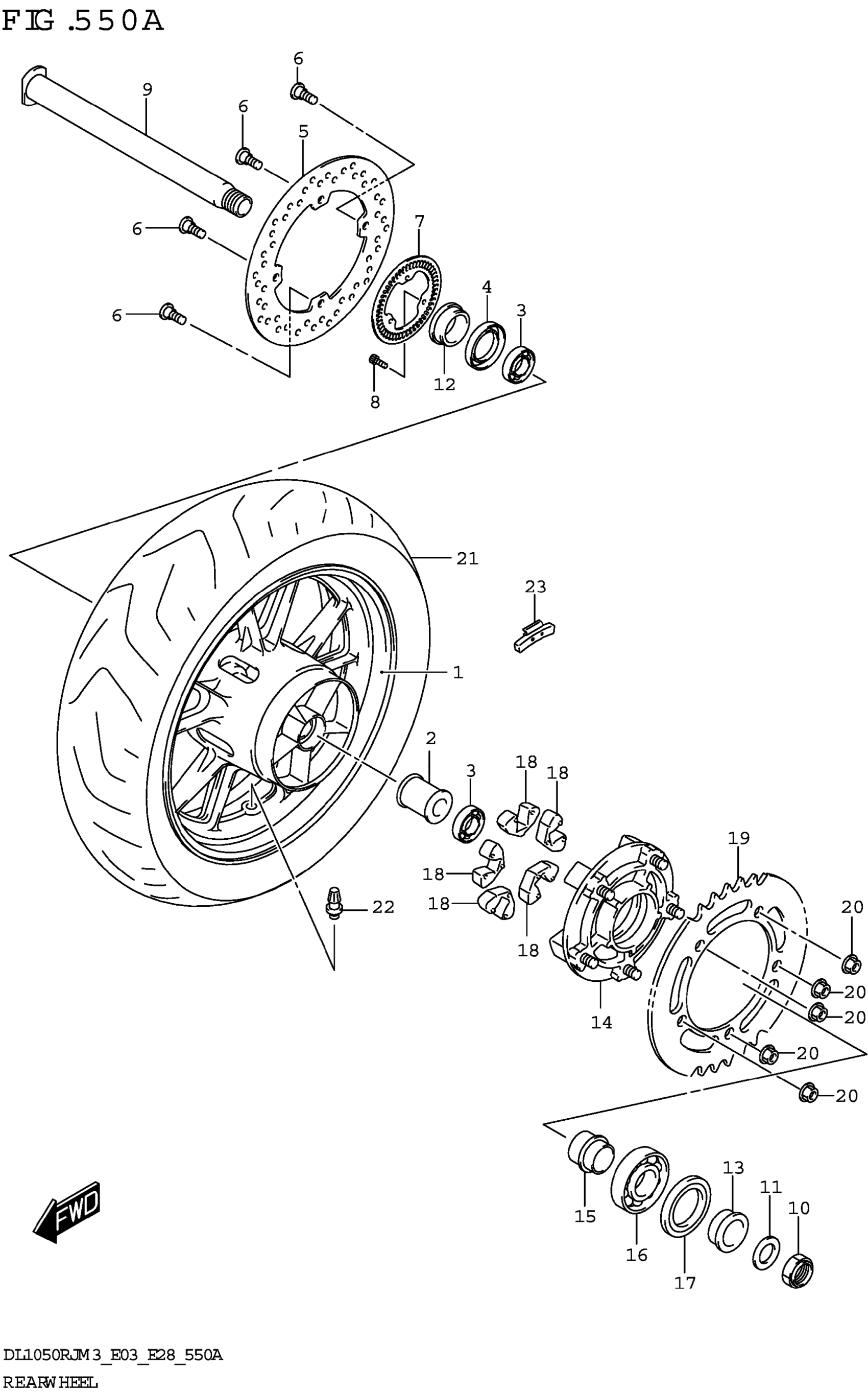

Suzuki DL1050RJM3 (2023) REAR WHEEL (DL1050RR) Diagram

#

Description
Price

1-1

WHEEL,RR (RED) | BODY COLOR:CB8,BNR

64111-31J01-QGY

$633.33

1-2

WHEEL,RR (BLACK) | BODY COLOR:CGG

64111-31J01-019

$633.33

1-3

WHEEL,RR (GOLD) | BODY COLOR:KGL

64111-31J01-YPU

$633.33

2

SPACER,REAR HUB BEARING (20.8 | 27.2X124)

64731-49G00

$58.65

3

BEARING (28X52X12)

09262-28062

$26.38

4

SEAL,OIL (37X52X8)

09284-37002

$7.85

5

DISC,REAR BRAKE

69211-06G00

$310.22

6

BOLT (8X21)

09106-08160

$3.57

7

RING,SPEED SENSOR RR (50T)

64162-17G00

$20.52

8

BOLT

07130-0512A

$2.19

9

AXLE,RR

64711-31J00

$85.15

10

NUT,REAR AXLE

64721-17K00

$15.94

11

WASHER (25.2X42X3.2)

09160-25070

$4.77

12

SPACER,REAR AXLE,R

64741-35F10

$13.49

13

SPACER,REAR AXLE,L

64751-47H10

$18.73

14

DRUM,RR SPROCKET

64610-35F30

$327.08

15

RETAINER,RR SPROCKET DRUM

64733-35F00

$26.61

16

BEARING (32X65X17)

09262-32024

$39.40

17

SEAL,OIL (39X65X7)

09285-39001

$10.62

18

ABSORBER,RR HUB SHOCK

64651-35F30

$44.48

19

SPROCKET,REAR,45T-525 (NT:45)

64511-39F00

$89.23

20

NUT

08319-3110A

$2.73

21

TIRE,REAR

65110-06L01

$272.90

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

23-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

23-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

23-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47
