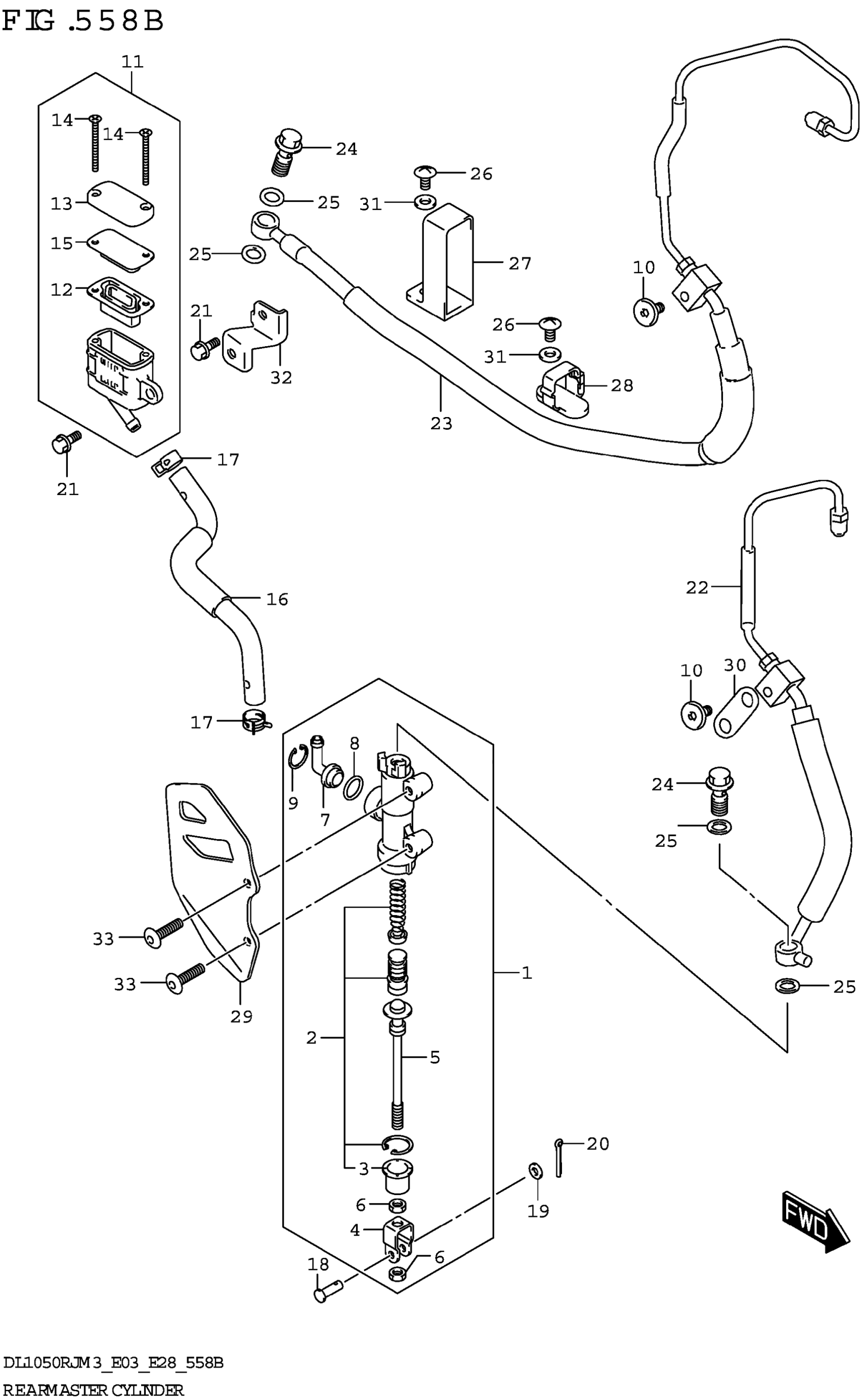

Suzuki DL1050RJM3 (2023) REAR MASTER CYLINDER (DL1050RR) Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-31J00

$240.68

2

.PISTON/CUP SET

69600-34830

$35.62

3

.BOOT

69691-00A00

$5.30

4

.YOKE

69692-44H00

$16.87

5

.ROD,PUSH

69670-31J00

$33.92

6

NUT This part replaces 69693-24A00.

69693-05A00

$1.96

7

.CONNECTOR

69672-00B20

$7.01

8

.O-RING

69686-34200

$2.93

9

.CIRCLIP

69674-00B20

$3.97

10

SCREW (6X16)

09139-06221

$2.92

11

TANK ASSY,RESERVOIR

69740-06L00

$30.80

12

.DIAPHRAGM

69667-01H00

$6.30

13

.CAP

69669-18K00

$14.37

14

.SCREW

69689-01H00

$4.45

15

.PLATE,DIAPHRAGM

69668-01H00

$5.98

16

HOSE,RR RESERVOIR TANK

69730-06L20

$11.60

17

CLIP

09401-12412

Unavailable

18

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

19

WASHER

08322-0106A

$1.84

20

PIN

04111-2015A

$1.49

21

BOLT

01547-0612A

$2.03

22

HOSE ASSY,RR BK MASTER TO UNI

69200-06L40

$69.22

23

HOSE ASSY,RR UNIT TO BK CLPR

69400-06L60

$73.80

24

UNION This part replaces 09360-10042.

09360-10062

$6.43

25

WASHER (10X15X1.5)

09161-10009

$1.84

26

SCREW

02142-0616B

$1.78

27

GUIDE,RR BRAKE HOSE

69243-16G00

Unavailable

28

GUIDE,RR BRAKE HOSE

61196-44H00

Unavailable

29

COVER,REAR MASTER CYLINDER

69641-06L00

$31.83

30

CUSHION,REAR BRAKE HOSE

69273-06L00

$2.17

31

WASHER,REAR BRAKE HOSE GUIDE

69486-31J00

Unavailable

32

BRACKET,RR RSVR TANK

69750-06L10

$6.77

33

SCREW (6X25)

09139-06192

$3.23
