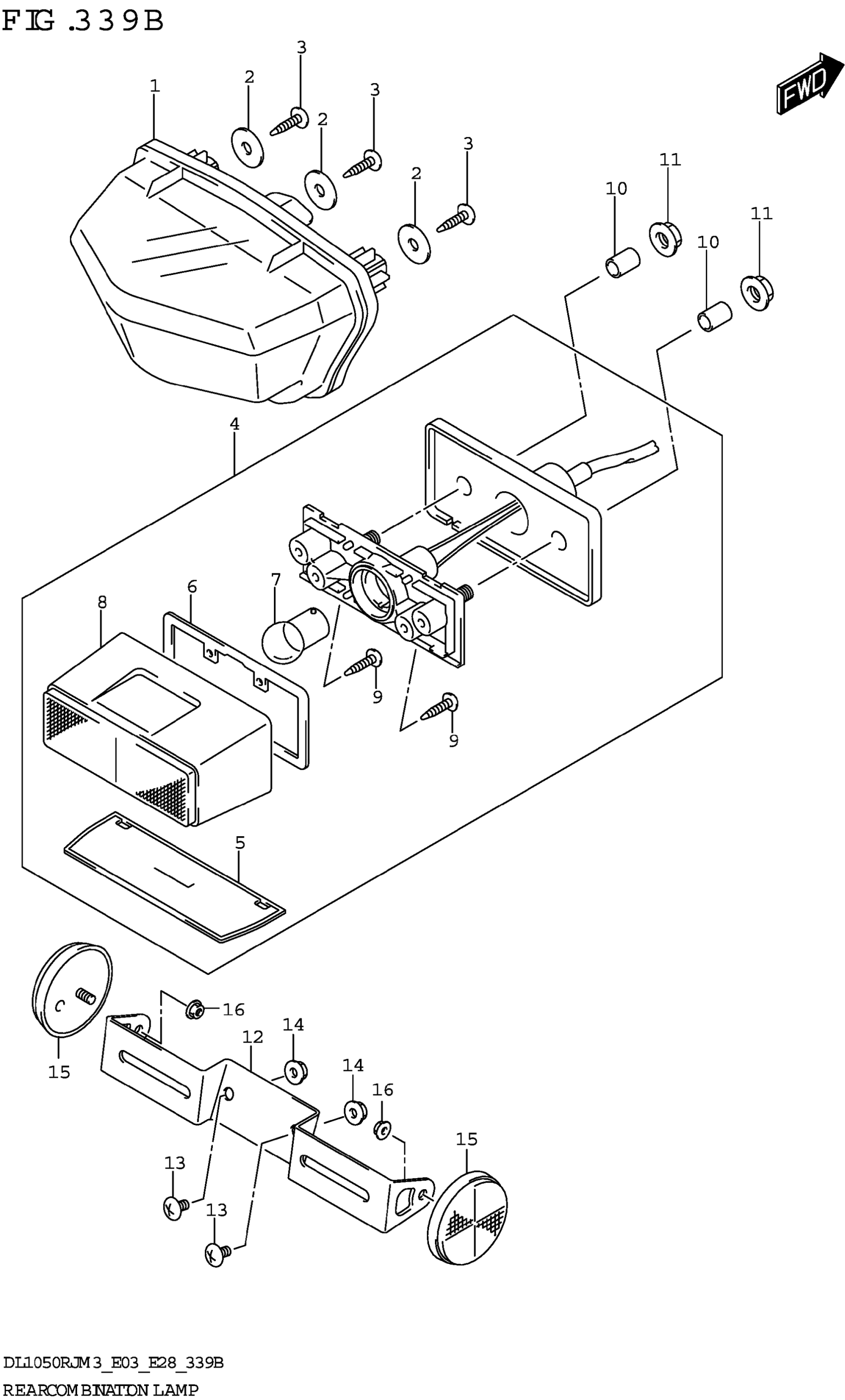

Suzuki DL1050RJM3 (2023) REAR COMBINATION LAMP Diagram

Description

Price

LAMP ASSY,REAR COMB

35710-31JA0

$194.00

WASHER (5.5X20X1.2)

09160-05501

$1.84

SCREW

03541-0516A

$1.49

LAMP ASSY,LICENSE

35910-41GC2

$85.07

.LENS,LICENSE LAMP

35912-41G01

$13.28

.GASKET

35913-41G00

$14.23

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

.COVER,LICENSE LAMP

35917-41G00

$35.32

.SCREW

03211-0416A

$1.49

SPACER (6.5X9X33.3)

09180-06278

$4.52

NUT (M6)

09159-06096

$3.15

BRACKET,LICENSE PLATE

35927-14J30

$15.70

NUT (M6)

09159-06096

$3.15

SCREW

02142-0616A

$1.49

REFLECTOR ASSY,REAR SIDE

35970-13K00

$16.28

NUT

08316-1005A

$2.19
