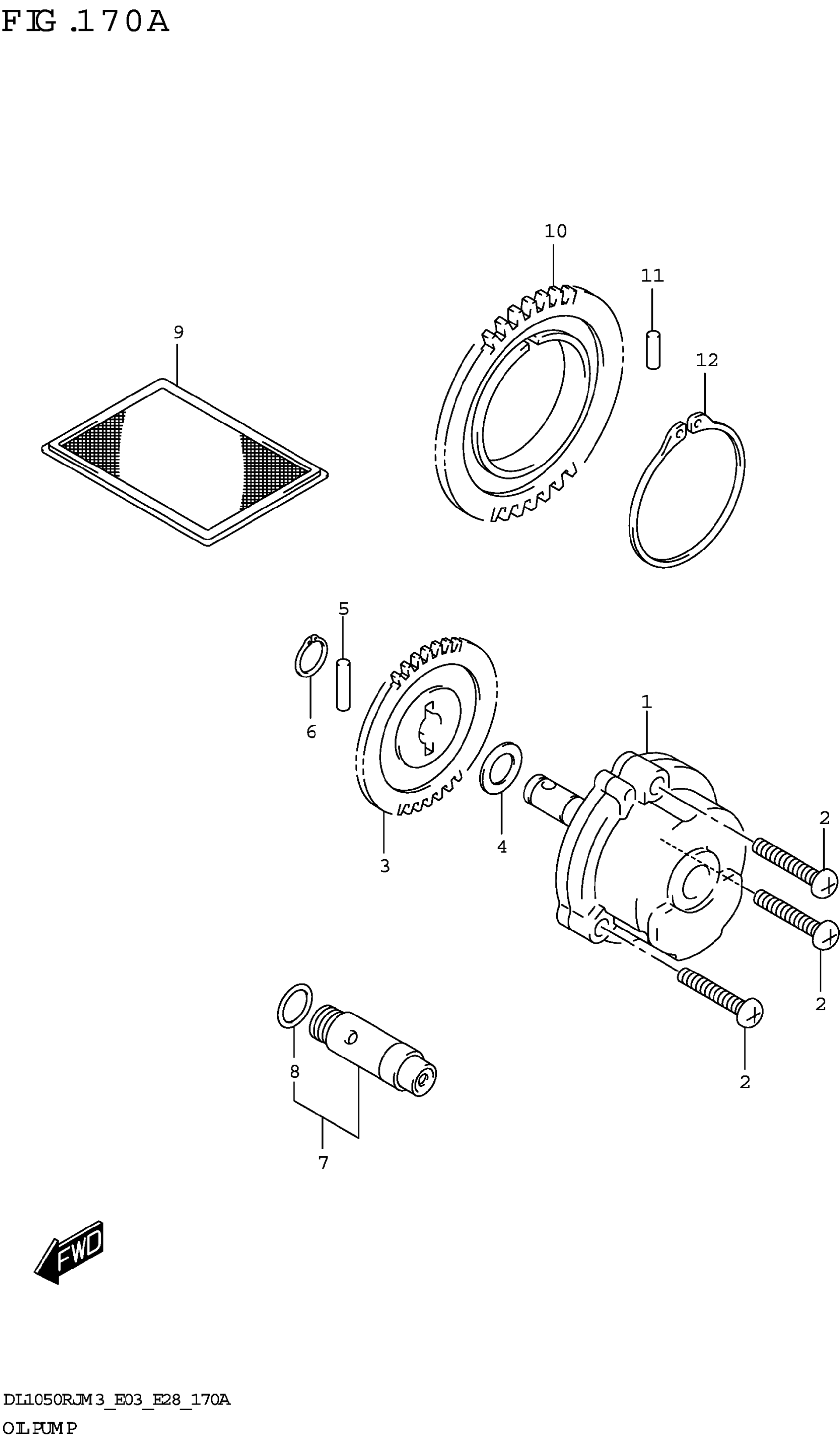

Suzuki DL1050RJM3 (2023) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,ENG OIL

16400-02FB0

$208.38

2

BOLT (6X25)

07130-0625A

$2.62

3

GEAR,OIL PUMP DRIVEN (NT:29)

16331-02F00

$69.38

4

SHIM (10X18X0.5)

09181-10158

$1.97

5

PIN (4X15.8)

09261-04009

$1.56

6

CIRCLIP

08331-31109

$1.78

7

VALVE ASSY,OIL RELIEF (7K)

16440-24F00

$50.04

8

.O-RING (D:1.9,ID:13)

09280-13004

$2.17

9

STRAINER,ENG OIL

16520-32E01

$13.10

10

GEAR,ENG OIL PUMP DRIVE (NT:4 | )

16321-02F00

Unavailable

11

PIN (6X6)

09261-06002

$1.53

12

CIRCLIP

08331-31509

Unavailable
