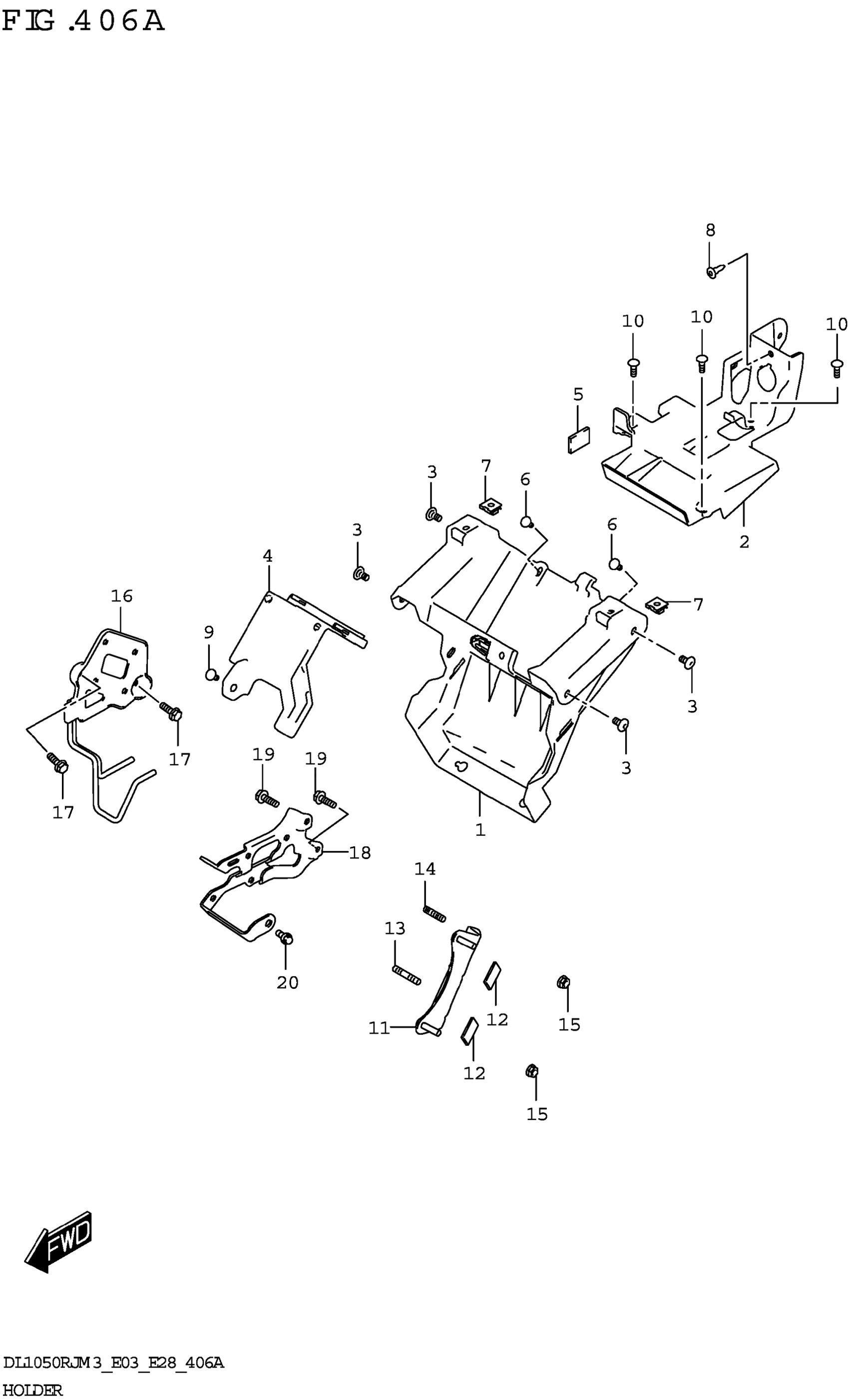

Suzuki DL1050RJM3 (2023) HOLDER (DL1050RR) Diagram

#

Description
Price

1

HOLDER,BATTERY

47414-06L00

$53.83

2

HOLDER,ELECTRIC PARTS

47415-06L00

$45.70

3

BOLT,BATTERY HOLDER

47416-06L00

$4.03

4

LID,BATTERY HOLDER

47431-06L00

$43.98

5

CUSHION This part replaces 47512-10D00.

61544-94500

$1.68

6

SCREW (5X13)

47912-31J00

$2.92

7

NUT

09148-06018

$3.16

8

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

9

SCREW

03541-0512B

$1.78

10

SCREW

03541-0516A

$1.49

11

BRACKET,RECTIFIER

47410-06L00

$22.28

12

CUSHION (10X24X1)

48128-14FA0

$6.47

13

BOLT,STUD

01421-0616A

$1.91

14

BOLT,STUD

01421-0625B

$2.30

15

NUT (6X12)

08316-1006A

$2.19

16

BRACKET,IGNITION COIL RH

47420-06L00

$50.25

17

BOLT (6X20)

01550-0620A

$1.97

18

BRACKET,IGNITION COIL LH

47420-06L10

$34.18

19

BOLT (6X20)

01550-0620A

$1.97

20

BOLT

01550-0620B

$2.39
