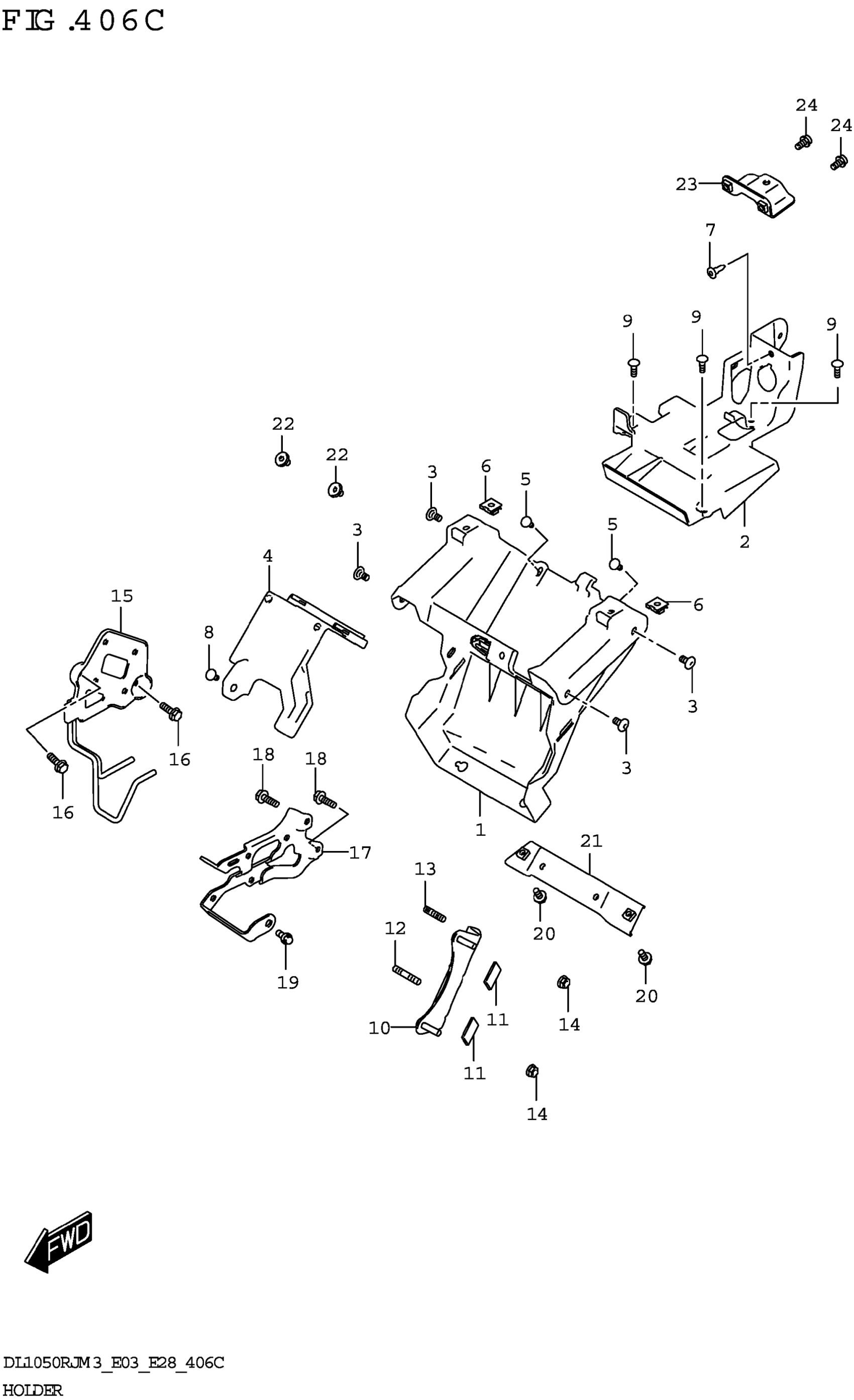

Suzuki DL1050RJM3 (2023) HOLDER (DL1050RJ) Diagram

#

Description
Price

1

HOLDER,BATTERY

47414-06L10

$26.92

2

HOLDER,ELECTRIC PARTS

47415-06L10

$15.83

3

BOLT,BATTERY HOLDER

47416-06L00

$4.03

4

LID,BATTERY HOLDER

47431-06L00

$43.98

5

SCREW (5X13)

47912-31J00

$2.92

6

NUT

09148-06018

$3.16

7

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

8

SCREW

03541-0512B

$1.78

9

SCREW

03541-0516A

$1.49

10

BRACKET,RECTIFIER

47410-06L00

$22.28

11

CUSHION (10X24X1)

48128-14FA0

$6.47

12

BOLT,STUD

01421-0616A

$1.91

13

BOLT,STUD

01421-0625B

$2.30

14

NUT (6X12)

08316-1006A

$2.19

15

BRACKET,IGNITION COIL RH

47420-06L00

$50.25

16

BOLT (6X20)

01550-0620A

$1.97

17

BRACKET,IGNITION COIL LH

47420-06L10

$34.18

18

BOLT (6X20)

01550-0620A

$1.97

19

BOLT

01550-0620B

$2.39

20

BOLT

01550-0612B

$2.39

21

BRACKET,BATTERY HOLDER

47440-06L10

$12.07

22

BOLT (6X12)

09139-06225

$2.92

23

BRACKET,REAR FENDER

63120-06L10

$15.50

24

BOLT

07120-0612A

$2.50
