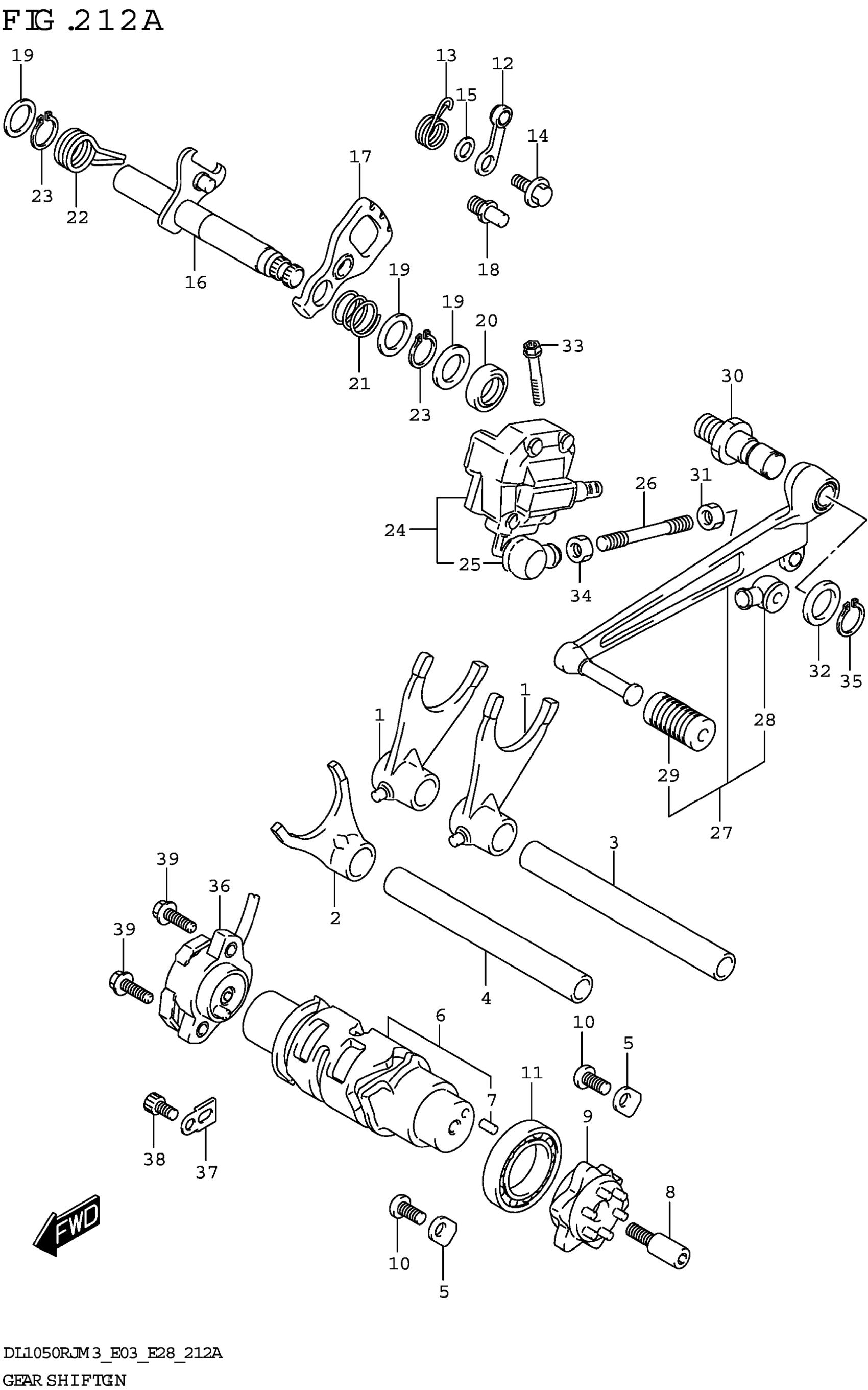

Suzuki DL1050RJM3 (2023) GEAR SHIFTING (DL1050RR) Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-35F11

$79.26

2

FORK,GEAR SHIFT,NO.3

25231-35F00

$119.43

3

SHIFT,GEAR SHIFT FORK

25411-02F20

$22.07

4

SHIFT,GEAR SHIFT FORK

25411-02F20

$22.07

5

RETAINER

24741-21A00

$2.80

6

CAM,GEAR SHIFT

25310-31J10

$108.73

7

PIN (4X13.8)

04221-04089

$1.10

8

BOLT,GEAR SHIFT CAM PLATE

25312-17K00

$26.05

9

PLATE,GEAR SHIFT CAM

25381-17K00

$49.37

10

SCREW (6X12)

09125-06122

$2.54

11

BEARING

08113-69050

$32.64

12

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$20.35

13

SPRING,GEAR SHIFT CAM STOPPER

25355-38F00

$5.52

14

BOLT (6X14.3)

09111-06041

$2.63

15

WASHER

08211-06141

$1.61

16

SHAFT,GEAR SHIFT

25510-06L00

$65.98

17

PLATE,GEAR SHIFT CAM DRIVE

25512-06G20

$22.32

18

STOPPER,GEAR SHIFT ARM

25671-01011

$4.09

19

SHIM (14X22X1.0)

09181-14167

$2.55

20

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

21

SPRING

09440-17009

$1.73

22

SPRING,GEAR SHIFT SHAFT RETUR

25518-06L00

$5.42

23

CIRCLIP

08331-3114A

$1.89

24

SENSOR ASSY,GEAR SHIFT

25500-48K10

$624.80

25

.COVER, DUST

25526-47001

$4.98

26

ROD,GEAR SHIFT LINK (L:90)

25525-11C00

$9.40

27

LEVER ASSY,GEAR SHIFT

25600-31J01

$112.75

28

.COVER, DUST

25526-47001

$4.98

29

.RUBBER,GEAR SHIFT PEDAL

25652-20C00

$4.98

30

SHAFT,GEAR SHIFT LEVER

25617-03F10

$11.29

31

NUT

09140-06025

$1.84

32

WASHER (12.5X20X1.0)

09160-12011

$1.48

33

BOLT (L:35)

09103-06530

$1.68

34

NUT

09140-06020

$1.67

35

CIRCLIP

08331-3112A

$1.77

36

SENSOR ASSY,GEAR POSITION

37730-06L00

$136.47

37

CLAMP,MAGNETO LEAD

31497-45000

$2.17

38

BOLT

07130-0510A

$2.92

39

BOLT (5X16)

09106-05023

$2.80
