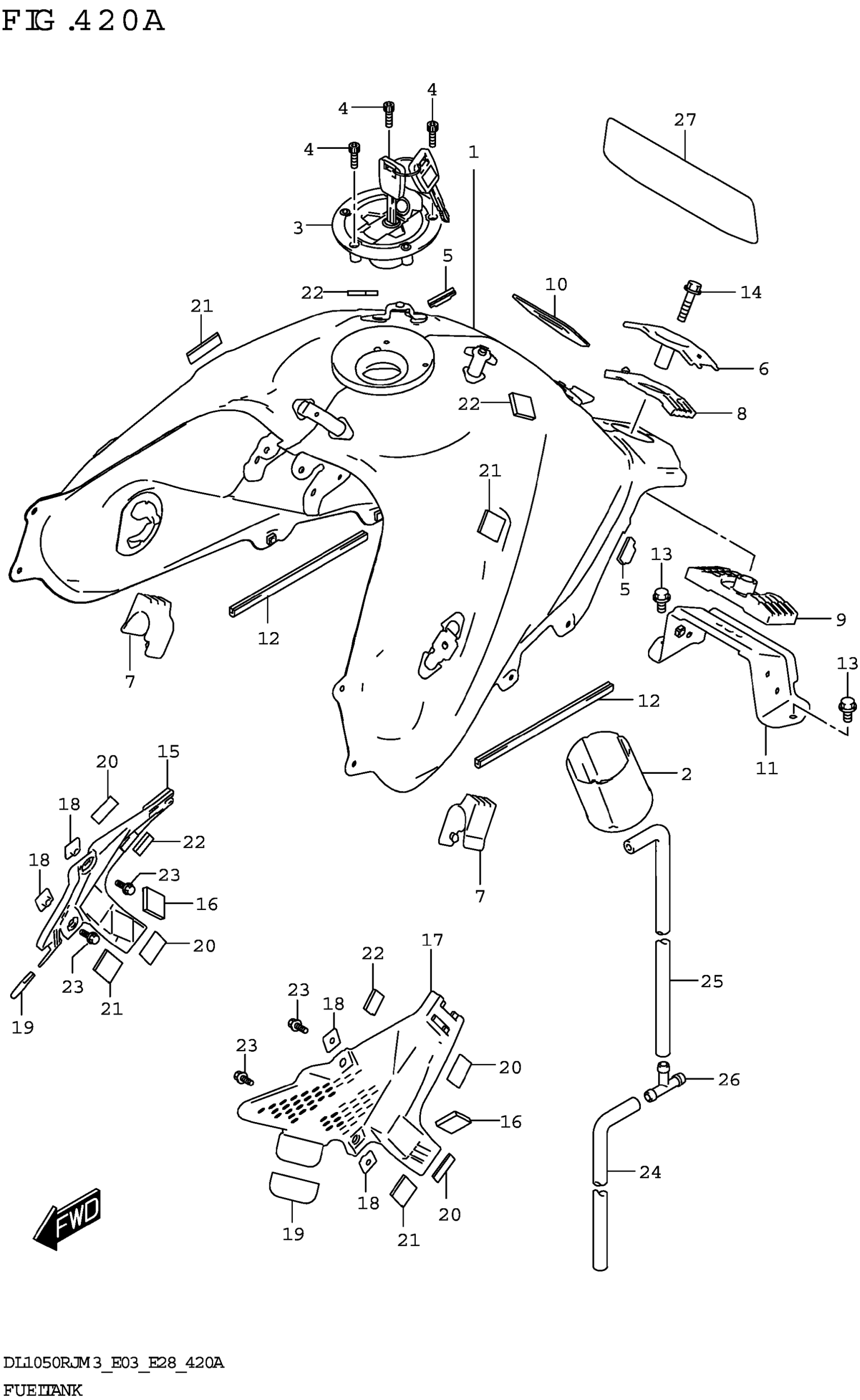

Suzuki DL1050RJM3 (2023) FUEL TANK (DL1050RR) Diagram

#

Description
Price

1

TANK ASSY,FUEL (BLACK)

44100-06L00-YKV

$845.48

2

VESSEL,FUEL TANK INNER

44121-06L00

$15.42

3

CAP SET,FUEL TANK FILLER

44200-17840

$166.45

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

CUSHION,FUEL TANK COVER

44276-21H01

$5.80

6

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

7

CUSHION,FUEL TANK SIDE

44541-31J00

Unavailable

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

9

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

10

CUSHION,FUEL TANK REAR

44545-06L10

$27.30

11

BRACKET,FUEL TANK REAR

44550-31J00

Unavailable

12

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

13

BOLT (8X16)

01550-0816A

$2.32

14

BOLT (8X35)

01550-0835A

$3.04

15

BRKT,FUEL TANK COVER SIDE RH

44179-06L00

$29.62

16

CUSHION,TANK SIDE COVER

44183-23H00

$12.97

17

BRKT,FUEL TANK COVER SIDE LH

44189-06L00

$29.62

18

NUT (M6)

44523-47H00

$10.02

19

CUSHION,FUEL TANK COVER BRKT

44542-31J00

$4.82

20

CUSHION,TANK COVER BRKT NO.1

44556-33H10

$6.65

21

FASTENER (25X33X2.6)

44572-02F01

$11.07

22

CUSHION (15X23X4)

47163-10FA0

$4.55

23

BOLT (6X12)

09103-06285

$1.97

24

HOSE,FUEL TANK DRAIN NO.2

44423-31J13

$11.25

25

HOSE,FUEL TANK DRAIN NO.1

44423-31J21

$14.95

26

3 WAY

09367-08005

$4.83

27

PROTECTOR,FUEL TANK

44283-06L00

$12.20
