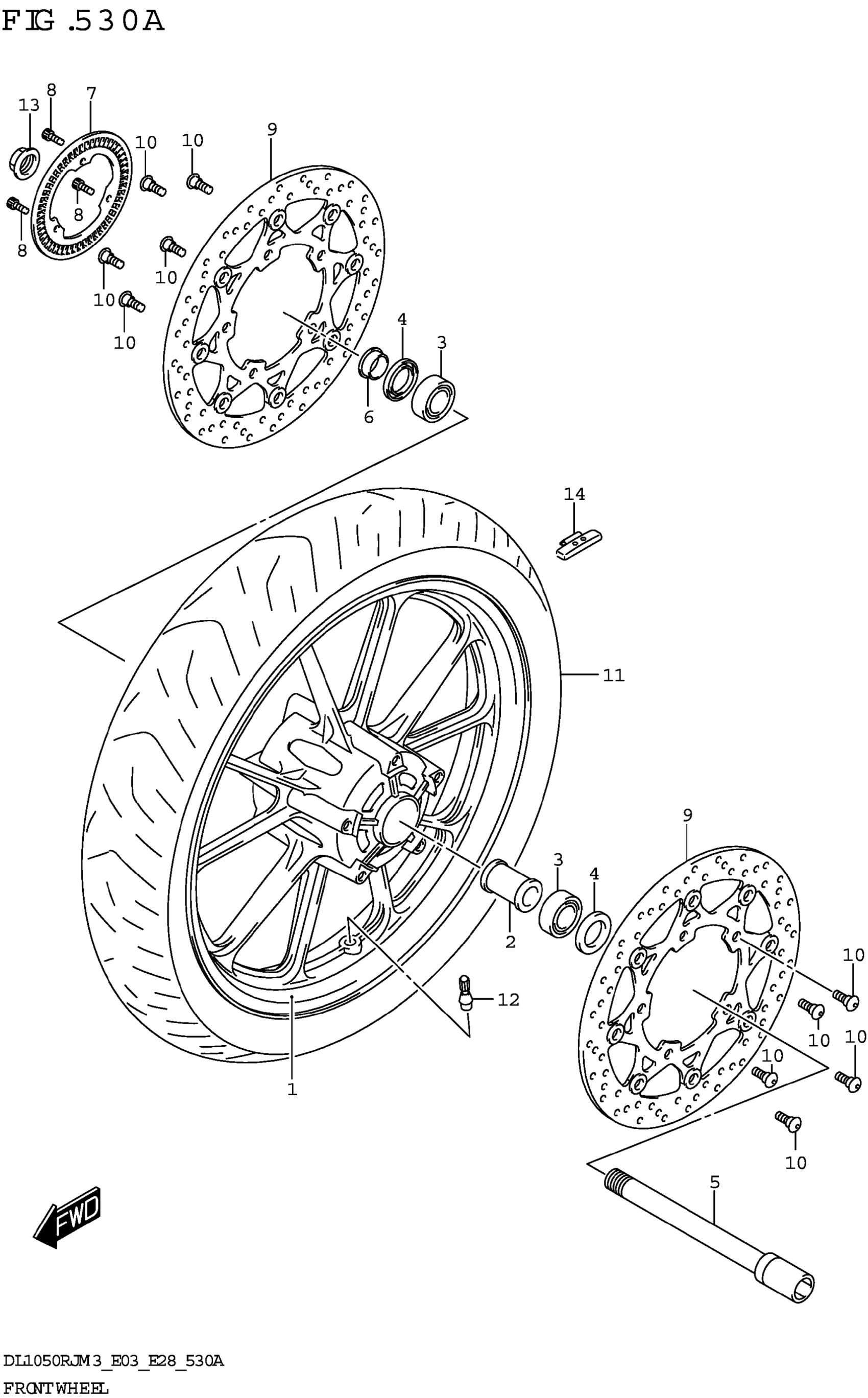

Suzuki DL1050RJM3 (2023) FRONT WHEEL (DL1050RR) Diagram

Description

Price

1-1

WHEEL,FR (RED) | BODY COLOR:CB8,BNR

54111-31J01-QGY

$498.37

1-2

WHEEL,FR (BLACK) | BODY COLOR:CGG

54111-31J01-019

$515.80

1-3

WHEEL,FR (GOLD) | BODY COLOR:KGL

54111-31J01-YPU

$498.37

SPACER,FR HUB BEARING

54731-33E20

$49.02

BEARING (25X52X15)

09262-25191

$24.28

.SEAL,OIL (32X52X7)

09285-32004

$7.98

AXLE,FR

54711-31J00

$117.64

SPACER,FR AXLE,R

54751-41G10

$19.66

RING,SPEED SENSOR FR

54162-27G10

$102.88

BOLT

07130-0512A

$2.19

DISC,FRONT BRAKE

59210-31J10

$266.67

BOLT,DISC

09106-08208

$2.66

TIRE,FRONT

55110-06L01

$205.65

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

NUT,FR AXLE

54712-47H00

$41.53

14-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

14-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

14-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47
