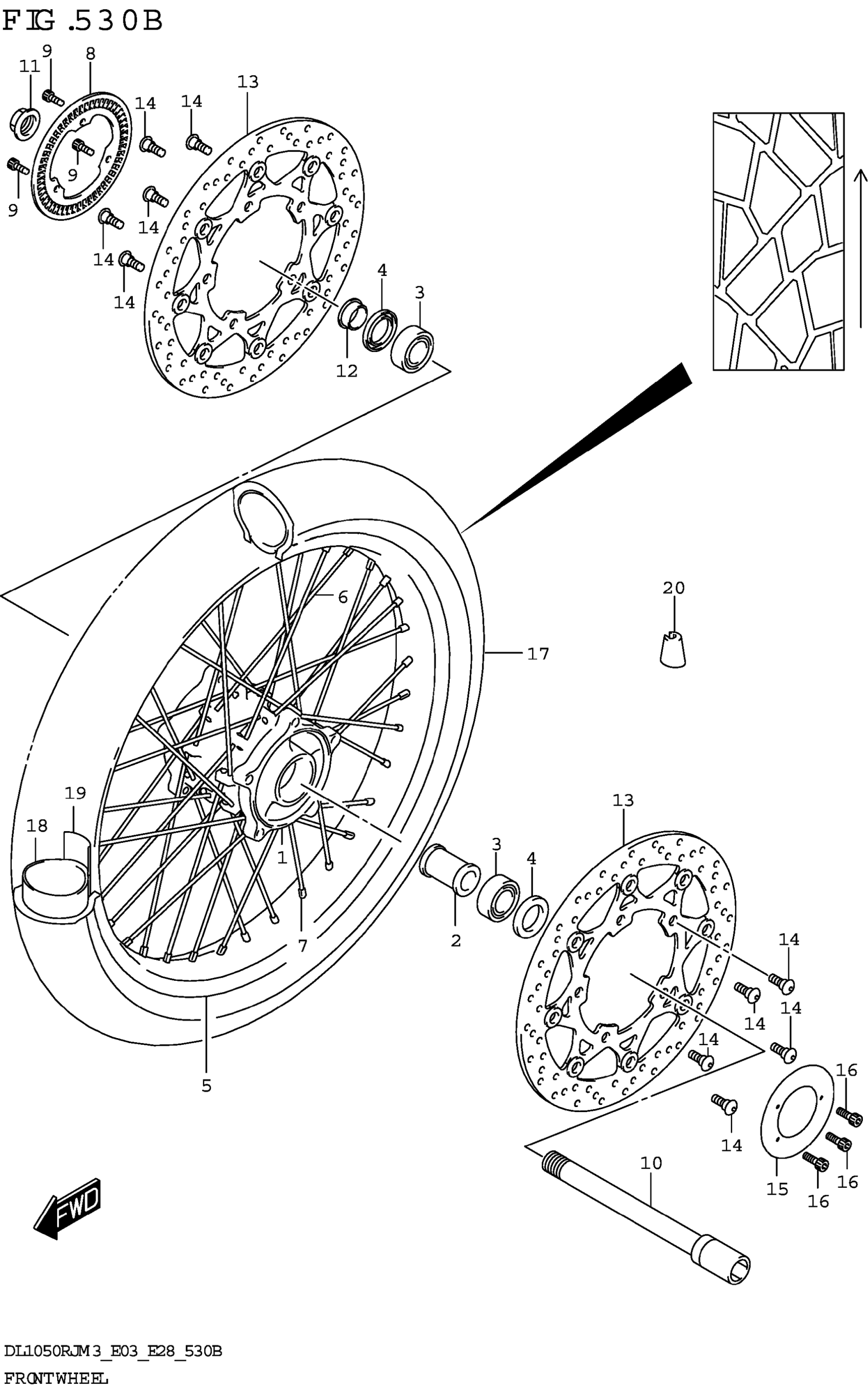

Suzuki DL1050RJM3 (2023) FRONT WHEEL (DL1050RJ) Diagram

#

Description
Price

1

HUB,FRONT

54111-06L00

$601.18

2

SPACER,FR HUB BEARING

54731-33E20

$49.02

3

BEARING (25X52X15)

09262-25191

$24.28

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5-1

RIM,FRONT WHEEL | BLACK BODY COLOR:KGL

55311-06L00

$394.65

5-2

RIM,FRONT WHEEL | GOLD BODY COLOR:CD8

55311-06L10

$394.65

5-3

RIM,FRONT WHEEL | BLUE BODY COLOR:JWN

55311-06L20

$411.53

6

SPOKE,FRONT WHEEL

55321-06L00

$4.82

7

NIPPLE,WHEEL SPOKE

55326-06L00

$3.98

8

RING,SPEED SENSOR FR

54162-27G10

$102.88

9

BOLT

07130-0512A

$2.19

10

AXLE,FR

54711-31J00

$117.64

11

NUT,FR AXLE

54712-47H00

$41.53

12

SPACER,FR AXLE,R

54751-41G10

$19.66

13

DISC,FRONT BRAKE

59210-31J10

$266.67

14

BOLT,DISC

09106-08208

$2.66

15

PLATE,FRONT HUB

54132-06L00

$16.08

16

BOLT

07130-0512A

$2.19

17

TIRE,FRONT

55110-06L11

$212.33

18

TUBE ASSY,WHEEL INNER This part replaces 55200-29F00.

55200-29F01

$31.37

19

PROTECTOR,WHEEL INNER TUBE

55261-44AF0

$6.88

20

BALANCER,WHEEL (20G)

55412-41F00

$8.12
