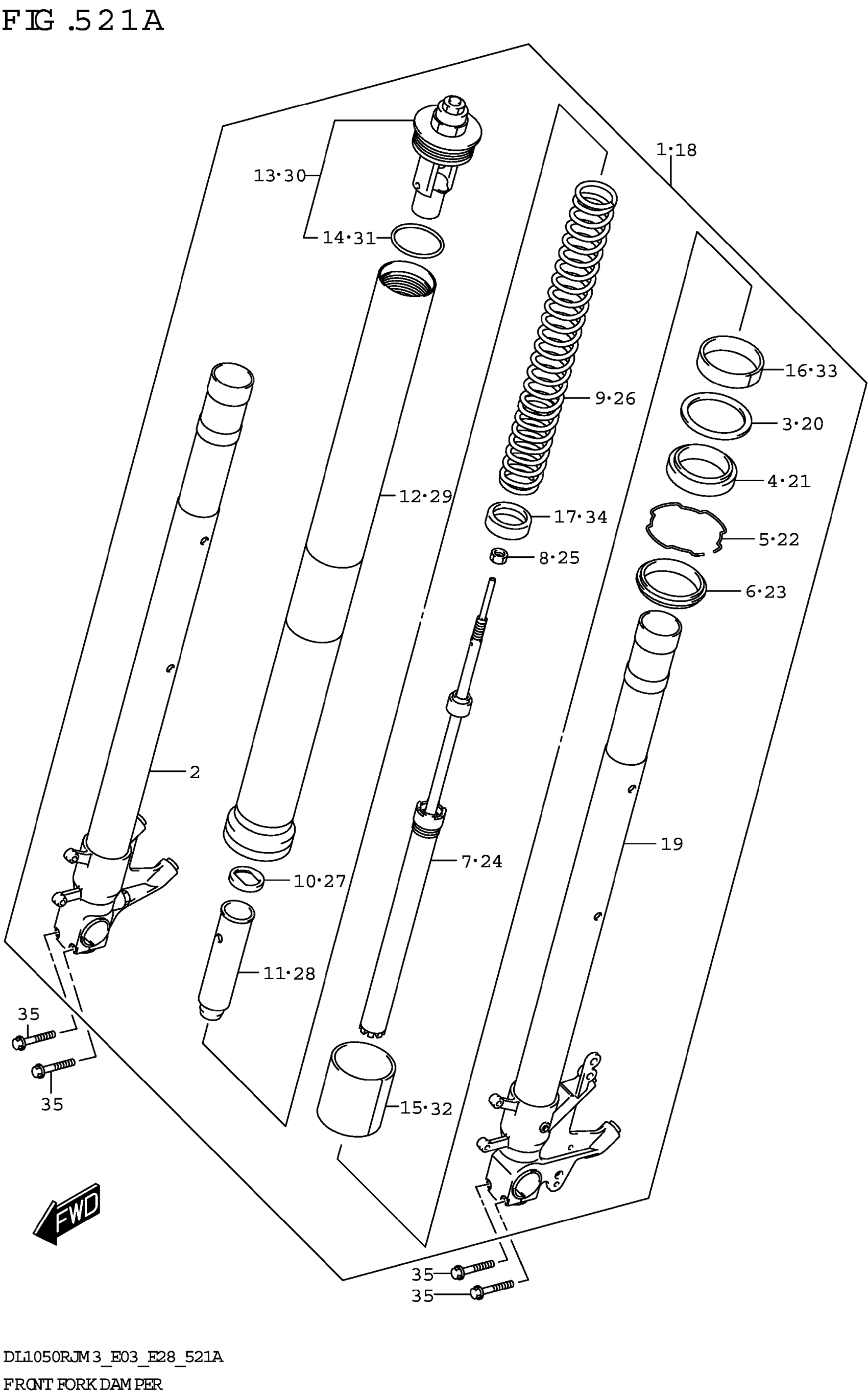

Suzuki DL1050RJM3 (2023) FRONT FORK DAMPER (DL1050RR) Diagram

#

Description
Price

1

DAMPER ASSY RH

51103-06L00

$1,139.10

2

.TUBE,INNER,R

51110-31J21

$441.82

3

.WASHER

51158-14200

$4.75

4

.SEAL,OIL

51153-44G00

$29.36

5

.RING,STOPPER

51156-14200

$4.63

6

.SEAL,DUST

51173-02FA0

$24.34

7

.CYLINDER

51146-06L00

$216.70

8

.NUT, ROD

51352-13A60

$3.42

9

.SPRING

51171-31J00

Unavailable

10

.WASHER

51158-40F30

$11.75

11

.SPACER, SPRING

51176-48G10

$30.92

12

.TUBE,OUTER

51131-31J30

Unavailable

13

.CAP

51351-31J30

$248.83

14

..O RING

62278-14100

$3.69

15

.PISTON

51112-31J00

$12.25

16

.METAL,SLIDE

51152-31J00

$11.72

17

.SEAT,SPRING

51178-31J00

Unavailable

18

DAMPER ASSY LH

51104-06L00

$1,139.10

19

.TUBE,INNER,L

51120-31J21

$477.15

20

.WASHER

51158-14200

$4.75

21

.SEAL,OIL

51153-44G00

$29.36

22

.RING,STOPPER

51156-14200

$4.63

23

.SEAL,DUST

51173-02FA0

$24.34

24

.CYLINDER

51146-06L00

$216.70

25

.NUT, ROD

51352-13A60

$3.42

26

.SPRING

51171-31J00

Unavailable

27

.WASHER

51158-40F30

$11.75

28

.SPACER, SPRING

51176-48G10

$30.92

29

.TUBE,OUTER

51131-31J30

Unavailable

30

.CAP

51351-31J30

$248.83

31

..O RING

62278-14100

$3.69

32

.PISTON

51112-31J00

$12.25

33

.METAL,SLIDE

51152-31J00

$11.72

34

.SEAT,SPRING

51178-31J00

Unavailable

35

BOLT

51166-24F60

$5.10
