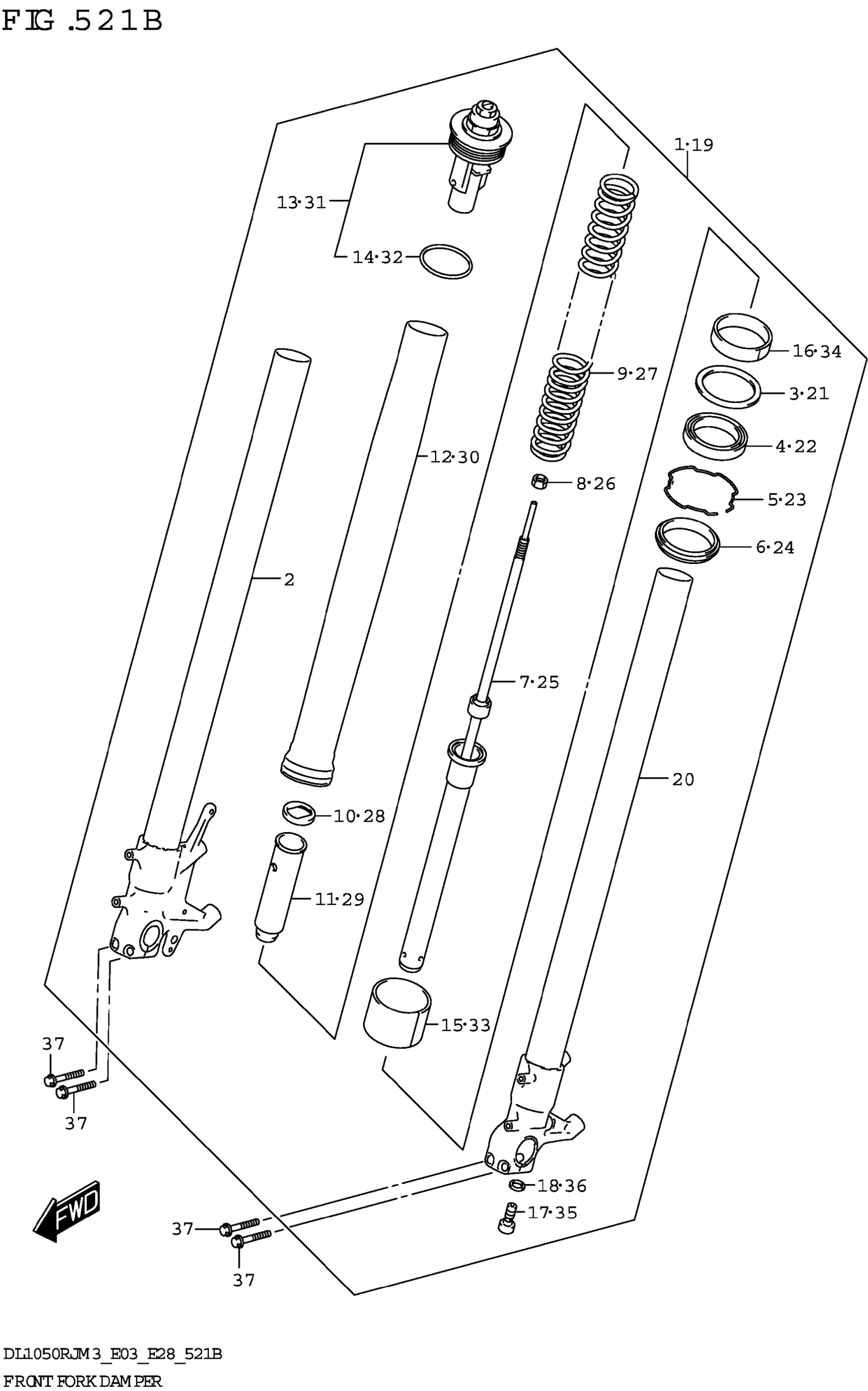

Suzuki DL1050RJM3 (2023) FRONT FORK DAMPER (DL1050RJ) Diagram

#

Description
Price

1

DAMPER ASSY,RH

51103-06LA0

$1,359.82

2

.TUBE,INNER,R

51110-06LA0

$565.82

3

.WASHER

51158-14200

$5.05

4

.SEAL,OIL

51153-44G00

$31.18

5

.RING,STOPPER

51156-14200

$5.05

6

.SEAL,DUST

51173-02FA0

$26.58

7

.CYLINDER

51146-06LA0

$196.18

8

.NUT, ROD

51352-13A60

$3.03

9

.SPRING

51171-06LA0

$74.22

10

.WASHER

51158-40F30

$10.42

11

.SPACER, SPRING

51176-48G10

$27.40

12

.TUBE,OUTER

51131-06LA0

$729.78

13

.CAP

51351-48K00

$171.18

14

..O RING

62278-14100

$4.03

15

.PISTON

51112-31J00

$11.17

16

.METAL,SLIDE

51152-31J00

$10.38

17

.BOLT

51147-24F50

$8.73

18

.GASKET

51148-41310

$2.26

19

DAMPER ASSY,LH

51104-06LA0

$1,359.82

20

.TUBE,INNER,L

51120-06LA0

$565.82

21

.WASHER

51158-14200

$5.05

22

.SEAL,OIL

51153-44G00

$31.18

23

.RING,STOPPER

51156-14200

$5.05

24

.SEAL,DUST

51173-02FA0

$26.58

25

.CYLINDER

51146-06LA0

$196.18

26

.NUT, ROD

51352-13A60

$3.03

27

.SPRING

51171-06LA0

$74.22

28

.WASHER

51158-40F30

$10.42

29

.SPACER, SPRING

51176-48G10

$27.40

30

.TUBE,OUTER

51131-06LA0

$729.78

31

.CAP

51351-48K00

$171.18

32

..O RING

62278-14100

$4.03

33

.PISTON

51112-31J00

$11.17

34

.METAL,SLIDE

51152-31J00

$10.38

35

.BOLT

51147-24F50

$8.73

36

.GASKET

51148-41310

$2.26

37

BOLT,AXLE STOPPER

51166-10G10

$5.38
