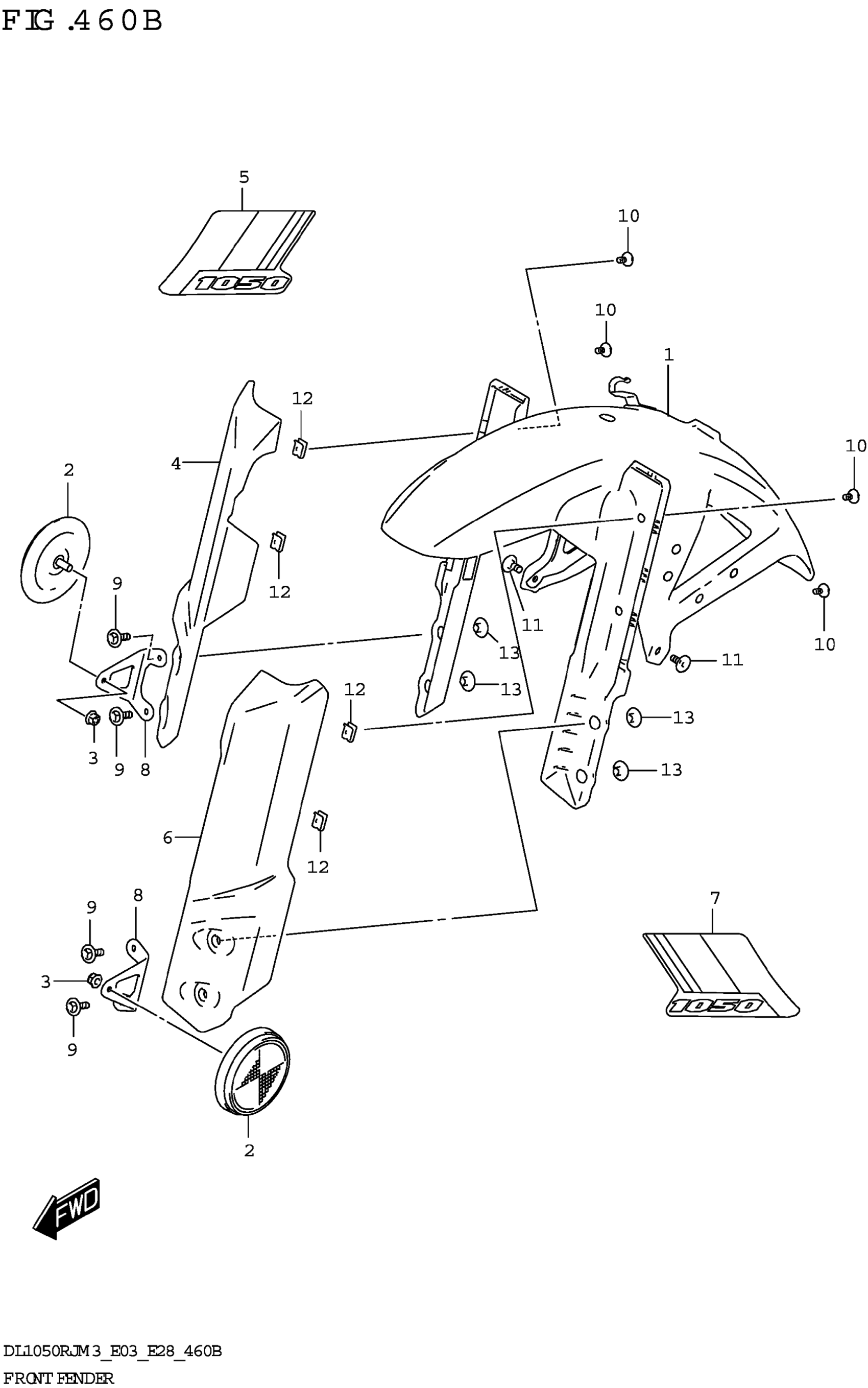

Suzuki DL1050RJM3 (2023) FRONT FENDER (DL1050RJ) Diagram

#

Description
Price

1

FENDER,FRONT

53110-06L00

$261.93

2

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$12.46

3

NUT

08319-3105B

$3.55

4-1

COVER,FR FENDER SIDE,R (YELLO | ) BODY COLOR:CD8

53120-06L00-YU1

$74.92

4-2

COVER,FR FENDER SIDE,R (WHITE | BODY COLOR:JWN

53120-06L00-30H

$74.92

4-3

COVER,FR FENDER SIDE,R (BLACK | BODY COLOR:KGL

53120-06L00-019

$63.69

5-1

.TAPE,FRONT FENDER,R | BODY COLOR:CD8

68151-06L00-CGS

$23.77

5-2

.TAPE,FRONT FENDER,R (BLACK,B | UE,WHITE) BODY COLOR:JWN

68151-06L00-BCN

$23.77

5-3

.TAPE,FRONT FENDER,R | BODY COLOR:KGL

68151-06L00-CGT

$23.77

6-1

COVER,FR FENDER SIDE,L (YELLO | ) BODY COLOR:CD8

53130-06L00-YU1

$76.33

6-2

COVER,FR FENDER SIDE,L (WHITE | BODY COLOR:JWN

53130-06L00-30H

$76.33

6-3

COVER,FR FENDER SIDE,L (BLACK | BODY COLOR:KGL

53130-06L00-019

$76.33

7-1

.TAPE,FRONT FENDER,L | BODY COLOR:CD8

68161-06L00-CGS

$23.77

7-2

.TAPE,FRONT FENDER,L (BLACK,B | UE,WHITE) BODY COLOR:JWN

68161-06L00-BCN

$23.77

7-3

.TAPE,FRONT FENDER,L | BODY COLOR:KGL

68161-06L00-CGT

$23.77

8

BRACKET,FRONT SIDE RR

47451-06L00

$13.27

9

BOLT (6X20)

09116-06188

$2.16

10

SCREW (5X13)

09139-05092

$2.25

11

SCREW (6X16)

09139-06221

$2.92

12

NUT (M5)

09148-05052

$3.37

13

SPACER

09180-06349

Unavailable
