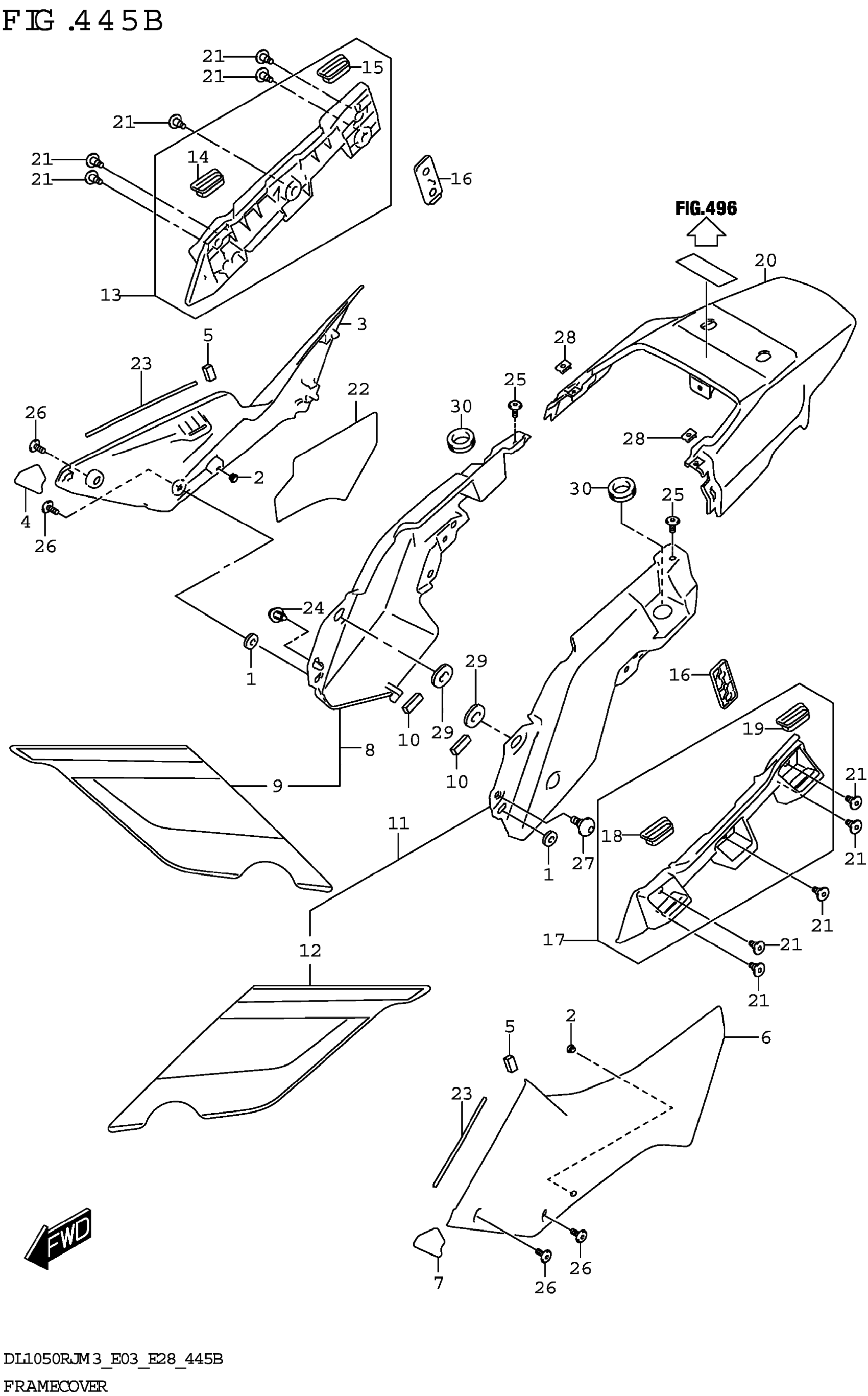

Suzuki DL1050RJM3 (2023) FRAME COVER (DL1050RJ) Diagram

#

Description
Price

1

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$3.92

2

CUSHION,SEAT MOUNT

45148-27J00

$19.43

3-1

COVER,FRAME FRONT,R | BODY COLOR:CD8,KGL

47111-06L30

$77.92

3-2

COVER,FRAME FRONT,R (WHITE) | BODY COLOR:JWN

47111-06L20-YUH

$175.30

4

PROTECTOR,FRAME COVER RH | FOR B1F

47121-06L00

$49.63

5

CUSHION,FRAME COVER FR RR

47131-06L00

$6.62

6-1

COVER,FRAME FRONT,L | BODY COLOR:CD8,KGL

47211-06L30

$77.92

6-2

COVER,FRAME FRONT,L (WHITE) | BODY COLOR:JWN

47211-06L20-YUH

$175.30

7

PROTECTOR,FRAME COVER LH | FOR B1F

47221-06L00

$15.68

8-1

COVER,FRAME,R (YELLOW) | BODY COLOR:CD8

47310-06L30-YU1

$157.82

8-2

COVER,FRAME,R (BLUE) | BODY COLOR:JWN

47310-06L30-YKY

$157.82

8-3

COVER,FRAME,R (BLACK) | BODY COLOR:KGL

47310-06L30-YVB

$157.82

9-1

.TAPE,FRAME COVER,R | BODY COLOR:CD8

68135-06L30-CGM

$29.50

9-2

.TAPE,FRAME COVER,R (WHITE,BL | BODY COLOR:JWN

68135-06L30-CGN

$29.50

9-3

.TAPE,FRAME COVER,R | BODY COLOR:KGL

68135-06L30-CGP

$29.50

10

CUSHION,FRM COV SIDE NO.5

47312-06L00

$7.02

11-1

COVER,FRAME,L (YELLOW) | BODY COLOR:CD8

47350-06L30-YU1

$157.82

11-2

COVER,FRAME,L (BLUE) | BODY COLOR:JWN

47350-06L30-YKY

$157.82

11-3

COVER,FRAME,L (BLACK) | BODY COLOR:KGL

47350-06L30-YVB

$150.07

12-1

.TAPE,FRAME COVER,L | BODY COLOR:CD8

68145-06L30-CGM

$29.50

12-2

.TAPE,FRAME COVER,L (WHITE,BL | BODY COLOR:JWN

68145-06L30-CGN

$29.50

12-3

.TAPE,FRAME COVER,L | BODY COLOR:KGL

68145-06L30-CGP

$29.50

13

BRKT,SIDE CASE UPR RH

47510-06L00

$81.08

14

.BUSH,SIDE CASE BRKT FR RH

47811-06L00

$7.77

15

.BUSH,SIDE CASE BRKT RR RH

47911-06L00

$7.77

16

SPACER,FRAME COVER

47510-28K00

$20.00

17

BRKT,SIDE CASE UPR LH

47610-06L00

$81.08

18

.BUSH,SIDE CASE BRKT FR LH

47812-06L00

$7.77

19

.BUSH,SIDE CASE BRKT RR LH

47912-06L00

$7.77

20-1

COVER,FRAME CTR (YELLOW) | BODY COLOR:CD8

47711-06L00-YU1

$244.95

20-2

COVER,FRAME CENTER (BLUE) | BODY COLOR:JWN

47711-06L00-YKY

$175.30

20-3

COVER,FRAME CTR (BLACK) | BODY COLOR:KGL

47711-06L00-YVB

$214.20

21

SCREW

47913-06L00

$1.80

22

HEATSHIELD,FRAME COVER,R

47113-06L10

$25.30

23

CUSHION,FRAME COVER

94417-24F00

$6.53

24

CLIP

94479-35F00

$5.14

25

SCREW (5X13)

09139-05091

$2.01

26

SCREW (5X13)

09139-05091

$2.01

27

SCREW (6X16)

09139-06169

$2.80

28

NUT (M5)

09148-05052

$3.04

29

CUSHION

09320-08029

$2.51

30

CUSHION (20X32X9)

09320-20011

$2.71
