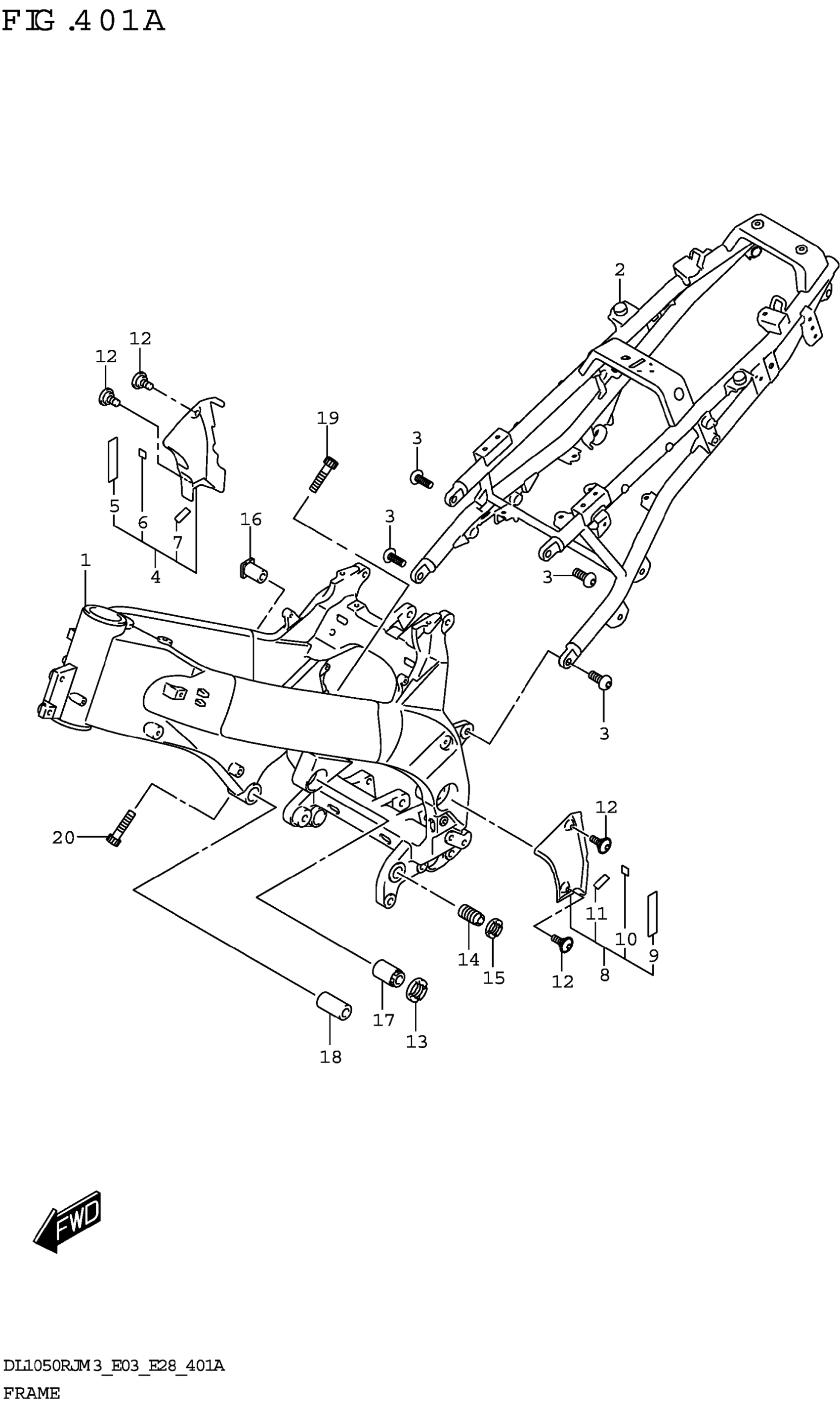

Suzuki DL1050RJM3 (2023) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-31J30-YAP

$3,037.90

2

RAIL,SEAT (BLACK)

41200-31J40-YAP

$572.27

3

BOLT,SEAT RAIL

09139-10006

$4.18

4

COVER,PIVOT RH

43580-31J00

$23.38

5

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

6

CUSHION (10X10X1)

63115-37H00

$3.64

7

CUSHION (10X30X2) | 30X2)

94429-21E00

$3.07

8

COVER,PIVOT LH

43590-31J00

$23.38

9

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

10

CUSHION (10X10X1)

63115-37H00

$3.64

11

CUSHION (10X30X2) | 30X2)

94429-21E00

$3.07

12

SCREW (5X13)

09139-05092

$2.25

13

NUT,CRANK CASE ADJUST CTR

41922-19F20

$18.90

14

BOLT,CRANK CASE ADJUST LWR

41921-16G10

$10.32

15

NUT,CRANK CASE ADJUST LWR

41922-33E20

Unavailable

16

BOLT,CRANK CASE ADJUST

41921-47H00

$52.60

17

SPACER,MOUNTING RR UPR,R

41941-19F01

$40.33

18

SPACER,ENG HEAD MTG,RR LH

41942-02F00

$28.70

19

BOLT

07130-0840B

$3.91

20

BOLT

07130-0840B

$3.91
