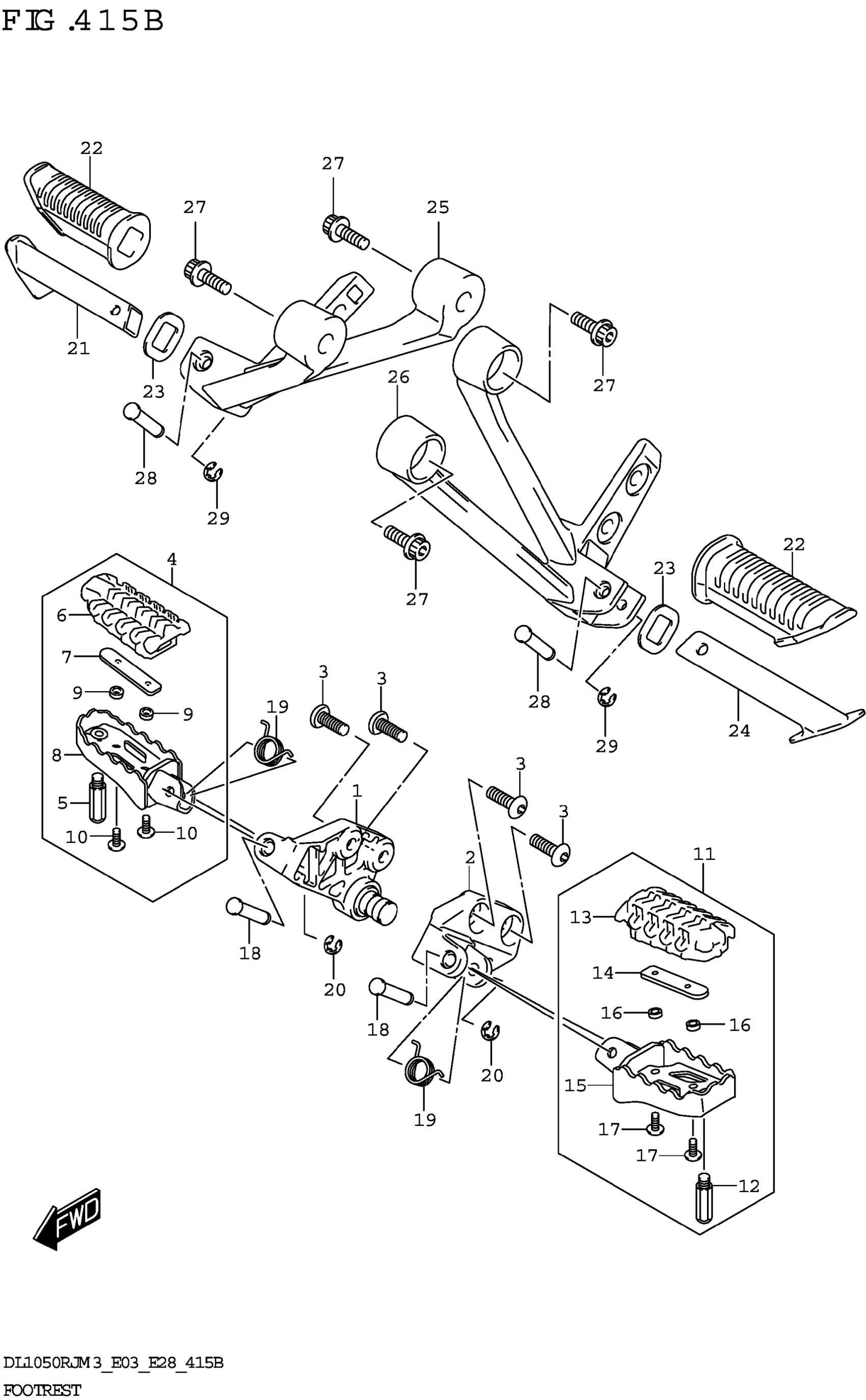

Suzuki DL1050RJM3 (2023) FOOTREST (DL1050RJ) Diagram

#

Description
Price

1

BRACKET,FR FOOTREST RH (BLACK

43510-06G10-YAP

$94.68

2

BRACKET,FR FOOTREST,L (BLACK) This part replaces 43521-06G10-YAP.

43521-06G11-YAP

$49.10

3

BOLT (8X23)

09106-08200

$2.32

4

FOOTREST ASSY,FRONT,R

43501-06L10

$130.03

5

.BOLT,BANK SENSOR

43576-48B50

$14.20

6

.RUBBER,FR FOOTREST

43551-06L00

$20.57

7

.PLATE,FR FOOTREST RUBBER

43552-06L00

$10.50

8

.BAR,FRONT FOOTREST RH

43530-06L00

$129.63

9

.SPACER,FR FOOTREST RUBBER

47512-28K00

$3.68

10

BOLT

07120-0512A

$2.28

11

FOOTREST ASSY,FRONT,L

43502-06L10

$130.03

12

.BOLT,BANK SENSOR

43576-48B50

$14.20

13

.RUBBER,FR FOOTREST

43551-06L00

$20.57

14

.PLATE,FR FOOTREST RUBBER

43552-06L00

$10.50

15

.BAR,FRONT FOOTREST LH

43540-06L00

$129.63

16

.SPACER,FR FOOTREST RUBBER

47512-28K00

$3.68

17

BOLT

07120-0512A

$2.28

18

PIN,FRONT FOOTREST

09208-08023

$3.20

19

SPRING

09448-20012

$5.17

20

E-RING

08332-1106B

$2.00

21

BAR,PILLION FOOTREST,R

43610-34A70

$28.90

22

RUBBER,PILLION FOOTREST

43612-33G40

$5.98

23

WASHER,FOOTREST RUBBER

43631-34A01

$4.52

24

BAR,PILLION FOOTREST,L

43710-34A70

$28.90

25

BRKT,PILLION FOOTREST RH (BLA | K)

43811-31J00-YAP

$139.82

26

BRKT,PILLION FOOTREST LH (BLA | K)

43821-31J00-YAP

$139.82

27

BOLT (8X30)

09106-08131

$3.55

28

PIN,PILLION FOOTREST

09208-06010

$2.52

29

E-RING

08332-1104B

$1.78
