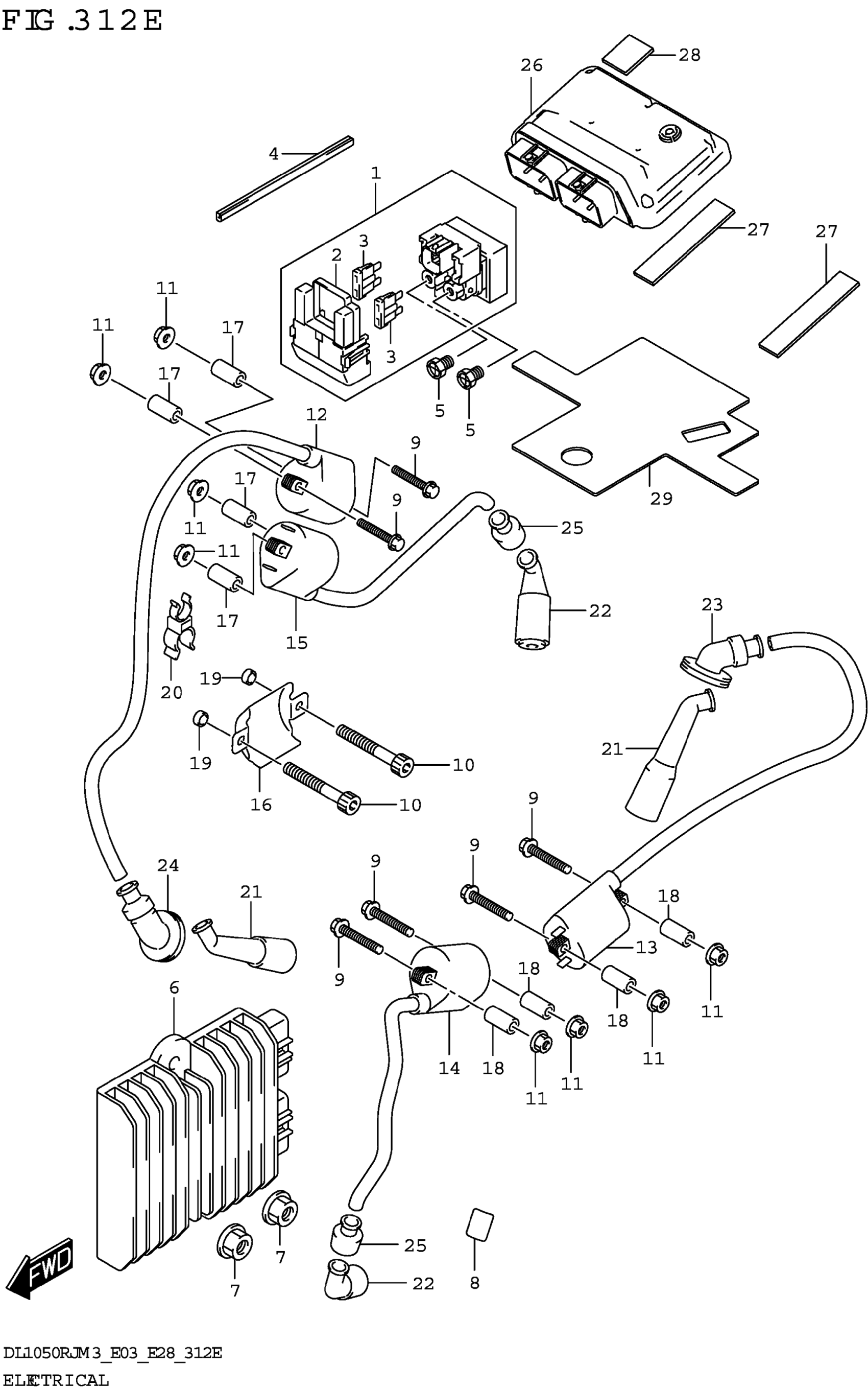

Suzuki DL1050RJM3 (2023) ELECTRICAL (DL1050RJ) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-06G02

$67.32

2

.COVER

31861-47E00

$16.15

3

.FUSE (30A)

09481-30101

$2.26

4

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

5

SCREW (6X8)

09128-06013

$1.49

6

RECTIFIER ASSY

32800-31J00

$271.48

7

NUT

08319-3106A

$2.03

8

TAPE,FUEL TANK (30X40X0.2)

45517-16G20

$11.17

9

BOLT (6X35)

09106-06088

$4.15

10

BOLT (6X40)

09106-06120

Unavailable

11

NUT (M6)

09159-06096

$3.15

12

COIL ASSY,IGNITION

33410-06G01

$99.25

13

COIL ASSY,IGNITION REAR

33410-06L00

$95.75

14

COIL ASSY,IGNITION

33410-20H01

$91.98

15

COIL ASSY,IGNITION

33410-26G01

$119.72

16

SHIELD,IGNITION COIL

13412-06L00

$35.83

17

SPACER (6.4X10X18)

09180-06195

$3.68

18

SPACER (6.2X12X16)

09180-06198

$4.32

19

SPACER (6.5X9X3.8)

09180-06255

$2.53

20

CLAMP

09408-00235

$2.80

21

CAP ASSY,SPARK PLUG

33510-31G00

$39.09

22

CAP ASSY,SPARK PLUG

33510-31G10

$32.95

23

SEAL,HT CORD RR

33542-06G00

$8.12

24

SEAL,HT CORD FR

33542-06G10

$8.28

25

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

26

ECM,BLANK

32910-06L00

$1,166.25

27

PROTECTOR (170X95X3.0)

33651-37000

$4.48

28

CUSHION,HEAD COVER CAP

11177-48G00

Unavailable

29

SHEET,CONTROL UNIT FI

32943-06L00

$34.77
