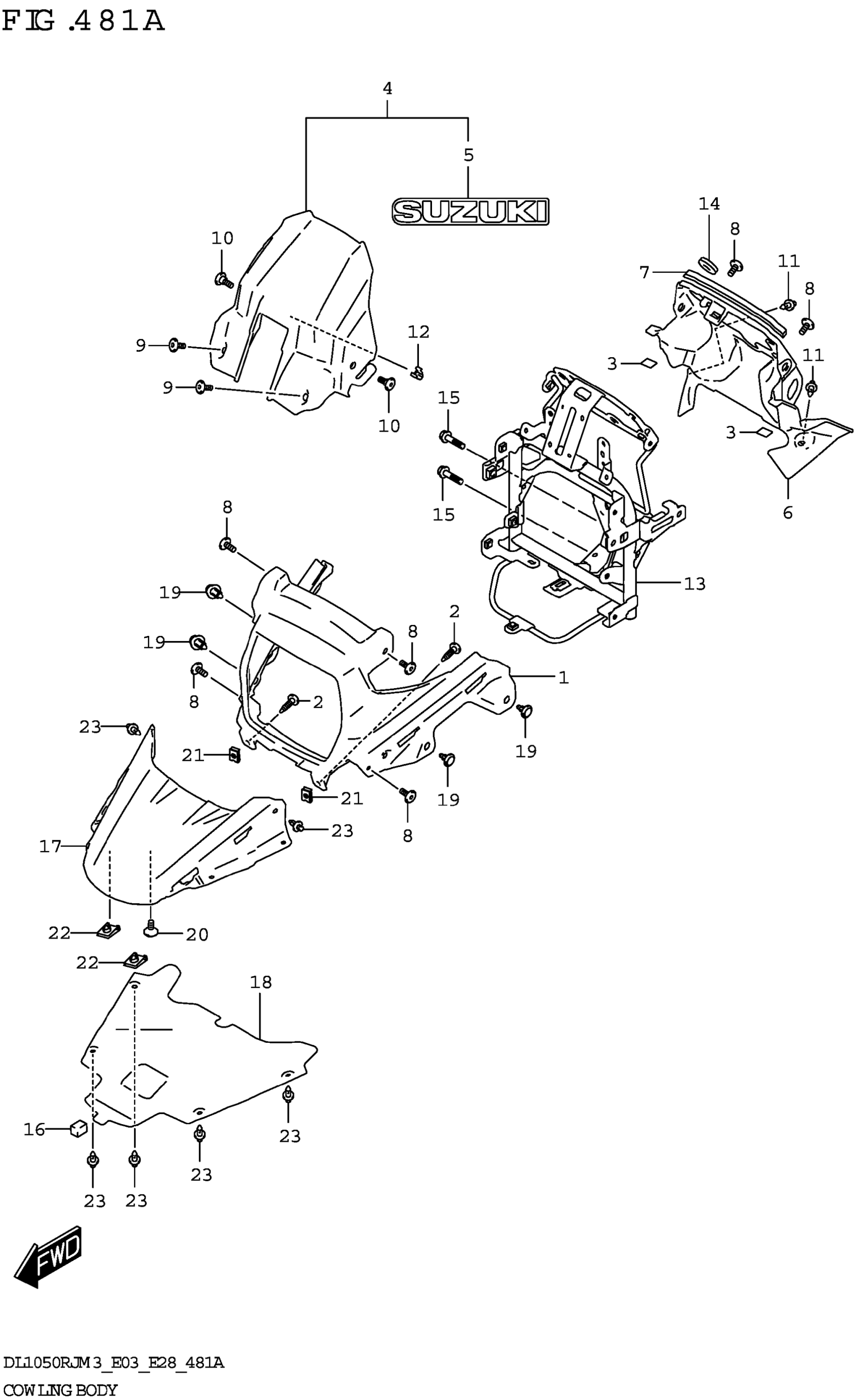

Suzuki DL1050RJM3 (2023) COWLING BODY (DL1050RR) Diagram

#

Description
Price

1

COWLING,BODY

94411-06L00

$167.87

2

SCREW

03541-0516A

$1.41

3

CUSHION (10X10X1)

63115-37H00

$4.82

4

PANEL,METER FRONT (GRAY,BLACK

94630-06L00-B5J

$82.76

5

.EMBLEM,"SUZUKI" (GRAY,BLACK)

68721-13E00-B5J

$12.20

6

PANEL,METER REAR

94632-06L10

$28.63

7

CUSHION,METER PANEL REAR

94633-06L00

$3.68

8

SCREW (5X13)

09139-05091

$2.09

9

SCREW (5X13)

09139-05091

$2.09

10

SCREW,METER PANEL

09139-05109

$1.97

11

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

12

CLIP (10.5X14.3)

09409-08326

$2.53

13

BRACE,COWLING

94510-06L10

$249.13

14

CUSHION (8x26x7)

09320-08018

$2.82

15

BOLT (8X20)

01550-0820A

$2.32

16

CUSHION,RR LAMP (17X17X12)

33652-05G20

$2.80

17

COWLING,BODY CTR (BLACK)

94413-06L00-YKV

$120.25

18

COWLING,BODY CTR LWR

94414-06L00

$26.58

19

CLIP

94479-35F00

$5.38

20

SCREW (5X13)

09139-05091

$2.09

21

NUT (M5)

09148-05038

$2.01

22

NUT (M5)

09148-05052

$3.13

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80
