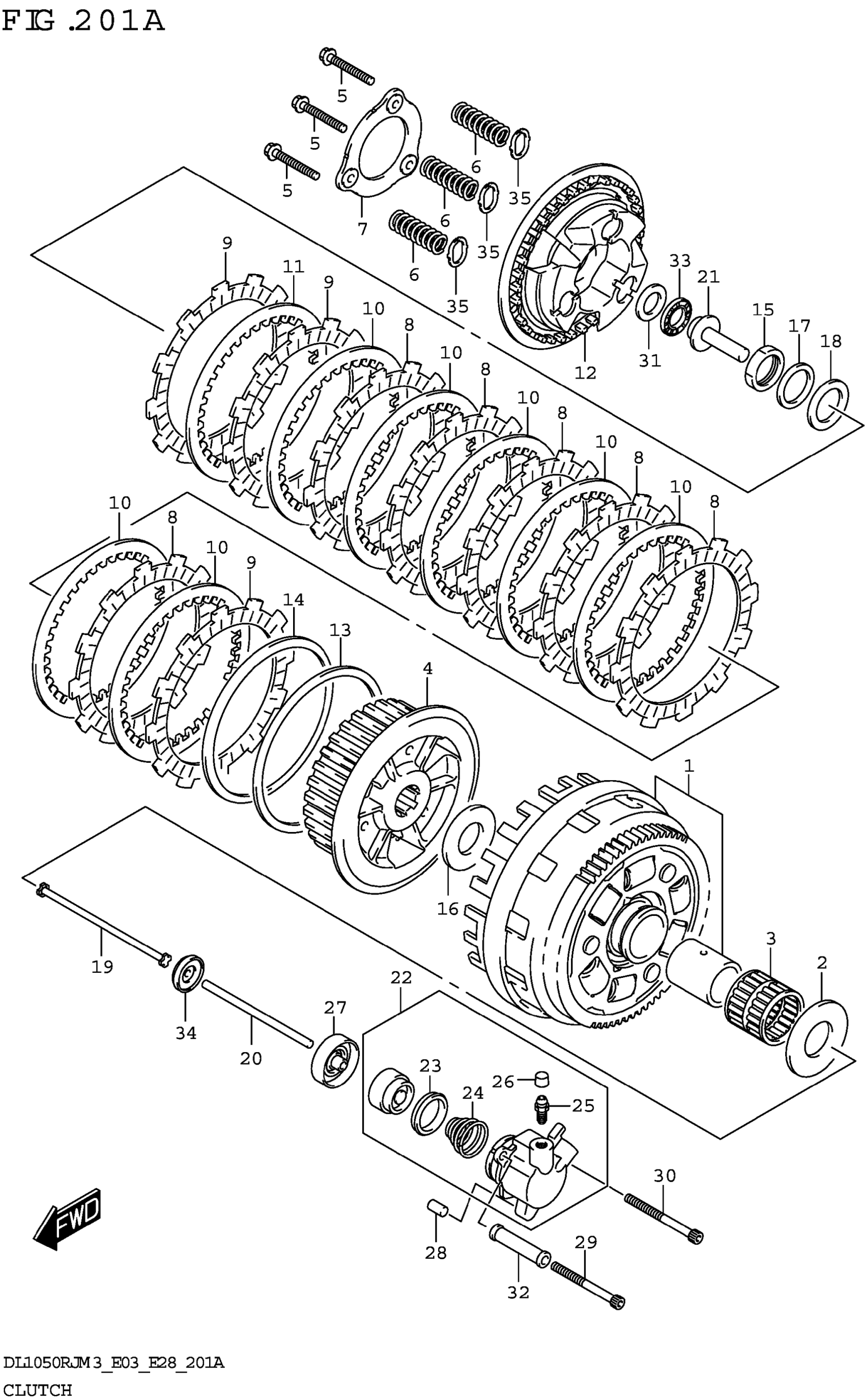

Suzuki DL1050RJM3 (2023) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY,PRIMARY DRIVEN

21200-31Y20

$310.02

2

WASHER (25X52X2.5)

09160-25074

$10.00

3

BEARING (35X40X39.8)

09263-35013

$32.08

4

.HUB,CLUTCH SLEEVE

21411-31J10

$163.66

5

.BOLT,CLUTCH SPRING

21412-31J00

$4.63

6

.SPRING,CLUTCH

21413-31J10

$5.92

7

.PLATE,STOPPER

21414-31J00

$21.93

8

.PLATE,CLUTCH DRIVE NO.1

21441-31J10

$22.90

9

.PLATE,CLUTCH DRIVE NO.2 (T:3 | )

21442-31J00

$22.73

10

.PLATE,CLUTCH DRIVEN NO.1 (T: | 0)

21451-24F00

$10.61

11

.PLATE,CLUTCH DRIVEN NO.2 (T: | 0)

21452-31J00

$16.65

12

.DISC,CLUTCH PRESSURE

21462-31J10

$111.10

13

.SEAT,WAVE WASHER

21471-24F00

$13.05

14

.WASHER,CLUTCH PLATE WAVE

21472-24F00

$14.59

15

NUT

09159-24010

$11.92

16

.WASHER (25X50X2.5)

09160-25056

$10.63

17

WASHER (24.2X35X2.7)

09164-24008

$5.00

18

SHIM (25X38X1)

09181-25223

$2.90

19

ROD,CLUTCH (L:161)

23110-27A00

$19.86

20

ROD,CLUTCH PUSH,L (L:132.5)

23111-26D00

$14.54

21

PIECE,CLUTCH PUSH

23121-31E00

$22.52

22

CYLINDER,CLUTCH RELEASE

23160-06G21

$97.71

23

.CUP

23163-06B00

$6.61

24

.SPRING

23164-05A00

$3.97

25

.BLEEDER

59121-01A00

$7.99

26

.CAP,BLEEDER

59122-01A00

$3.97

27

COVER,DUST

23166-06G10

$20.42

28

PIN

04221-08149

$1.98

29

BOLT

07130-0665B

$3.47

30

BOLT

07130-0670B

$3.52

31

WASHER (15.5X28X1)

09160-15045

$3.52

32

SPACER,CL RLSE CYL

23171-06G00

$7.65

33

BEARING (15X28X2)

09263-15003

$7.49

34

SEAL,OIL (6X34X10.5)

09283-06008

$15.16

35

.SEAT,CLUTCH SPRING

21415-31J00

$17.43
