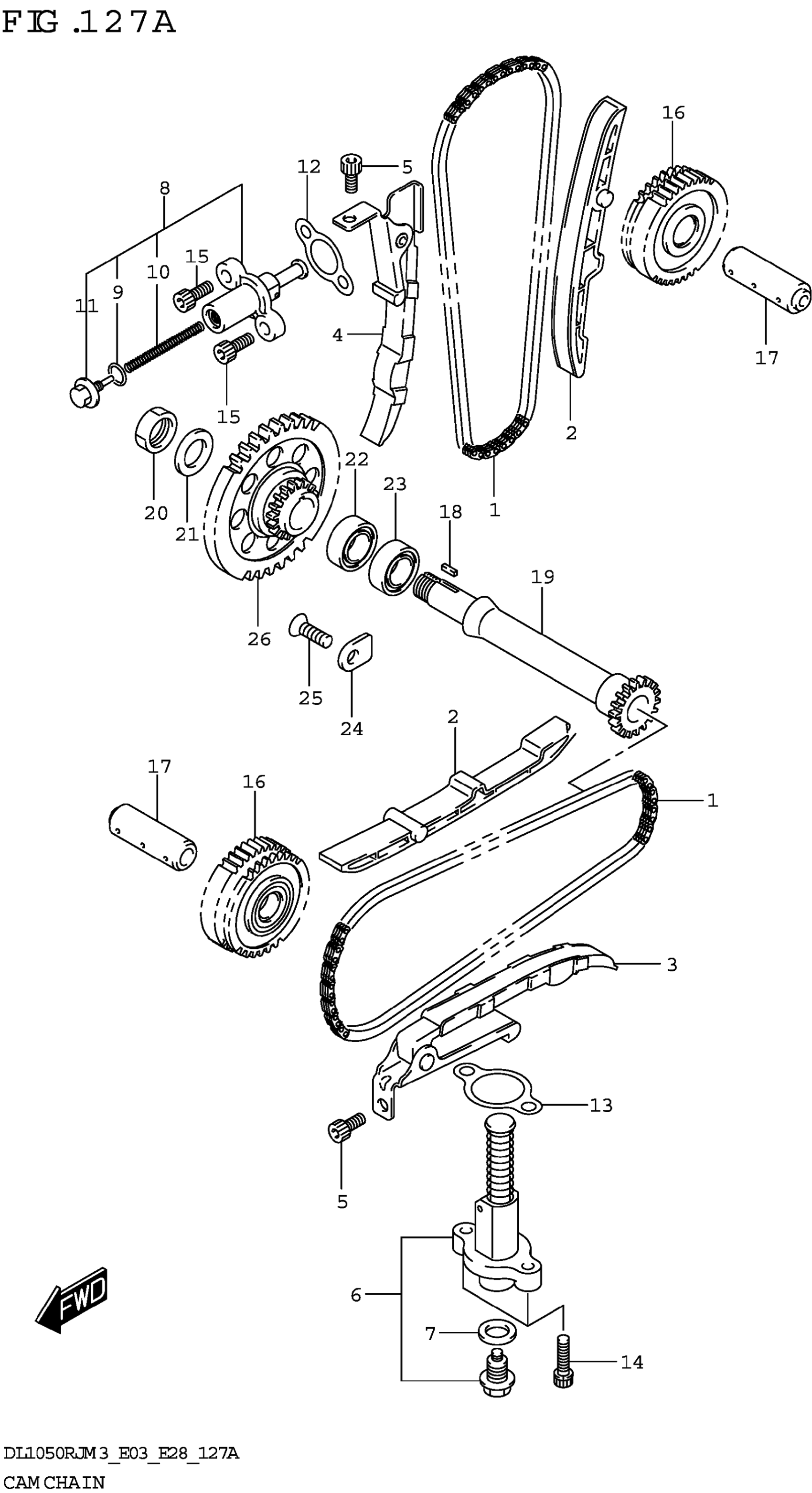

Suzuki DL1050RJM3 (2023) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAMSHAFT DRIVE

12760-23F20

$68.83

2

GUIDE,CAM CHAIN

12771-06G00

$34.15

3

TENSIONER,CAM CHAIN FR

12810-06G00

$96.22

4

TENSIONER,CAM CHAIN,REAR

12815-06G00

$96.22

5

BOLT

07120-0612A

$2.50

6

ADJUSTER ASSY,TENSIONER FRONT

12832-06L00

$162.92

7

.GASKET (12X21X2)

09168-12018

$3.08

8

ADJUSTER ASSY,TENSIONER

12830-30A01

$121.77

9

.O-RING

12832-02A00

$2.82

10

.SPRING

12833-30A01

Unavailable

11

.PLUG,ADJUSTER

12834-02A00

Unavailable

12

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.73

13

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

14

BOLT (6X25)

07130-0625A

$2.62

15

BOLT

07130-0620B

$3.05

16

GEAR,CAM CHAIN IDLER NO.2 (NT | 31/41)

12750-31J10

Unavailable

17

SHAFT,IDLER NO.2

12755-31J00

Unavailable

18

KEY

09421-04012

$2.90

19

SHAFT,IDLER

12716-06G00

$147.77

20

NUT This part replaces 09140-16001.

09140-16005

$3.75

21

SHIM (16X26X1.5)

09181-16212

Unavailable

22

BEARING

08112-6303A

$15.71

23

BEARING (25X47X8)

09262-25006

$25.54

24

RETAINER

24741-20A00

$2.81

25

SCREW (6X12)

09126-06011

$2.03

26

SPROCKET,IDLER NO.1 (NT:36)

12731-06G01

Unavailable
