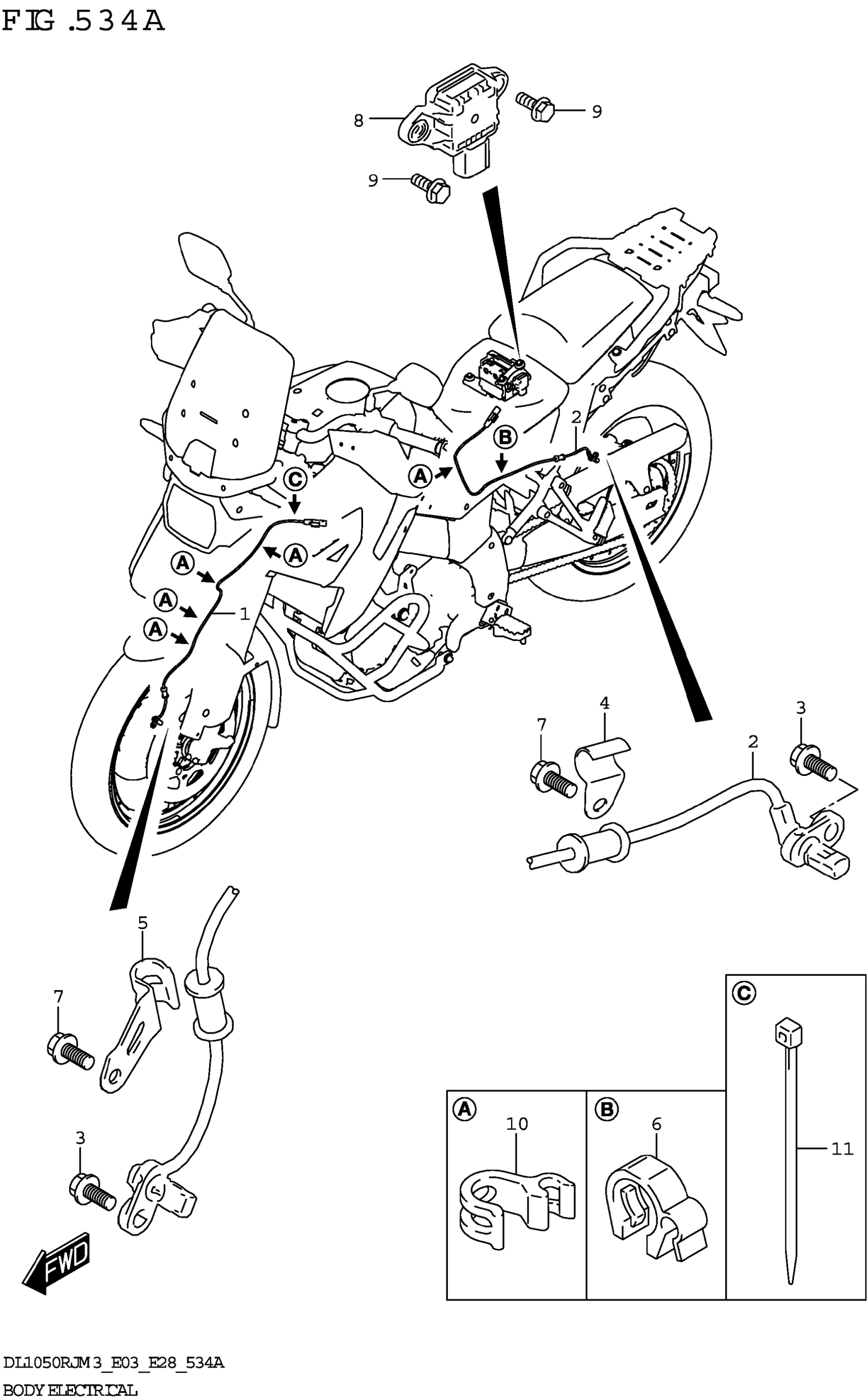

Suzuki DL1050RJM3 (2023) BODY ELECTRICAL (DL1050RR) Diagram

#

Description
Price

1

SENSOR,FR WHEEL SPEED

55710-06L20

$76.87

2

SENSOR,RR WHEEL SPEED

65710-06L00

$115.22

3

BOLT

01547-0616B

$2.45

4

CLAMP,FR WHEEL SPEED SENSOR

55731-06L00

$11.00

5

CLAMP,ABS SENSOR FR

55731-23H00

Unavailable

6

CLAMP

09408-00307

$2.97

7

BOLT

01547-0616B

$2.45

8

SENSOR,INERTIAL

55750-06L00

$1,314.13

9

BOLT

01550-0616A

$1.97

10

CLAMP,SENSOR LEAD

55734-06L00

$3.08

11

CLAMP (L:145)

09407-14407

$3.57
