Description

Price

1

HARNESS,WIRING

36610-06LC0

$1,061.08

2

.FUSE (3A)

09481-03501

$2.25

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.FUSE (25A)

09481-25504

$2.75

6

HARNESS,WIRING NO.2

36620-06LA0

$892.40

7

CAP,OBD CONNECTOR

36654-28K00

$8.72

8

WIRE,REAR TURNSIGNAL LEAD

36856-06LA0

$27.45

9

CLAMP (L:45)

09404-06429

$1.83

10

CLAMP

09403-10319

Unavailable

11

CLAMP (L:145)

09407-14407

$3.57

12

CLAMP (L:190)

09407-19401

$3.05

13

SWITCH ASSY,STOP LAMP

37740-06L00

$17.02

14

SPRING,STOP LAMP SWITCH

43259-31J00

$6.82

15

BRACKET,STOP LAMP SWITCH

43251-31J00

$7.47

16

BOLT

01550-0612A

$1.97

17

SWITCH ASSY,SIDE STAND This part replaces 37840-24F01.

37840-24F02

$58.63

18

BOLT (8X35)

09103-08357

$4.17

19

HORN ASSY

38500-06L00

$62.37

20

SOCKET,USB

39105-06L00

$87.08

21

HOLDER,RELAY

36744-06L00

$20.57

22

RELAY ASSY

38860-06L00

$134.80

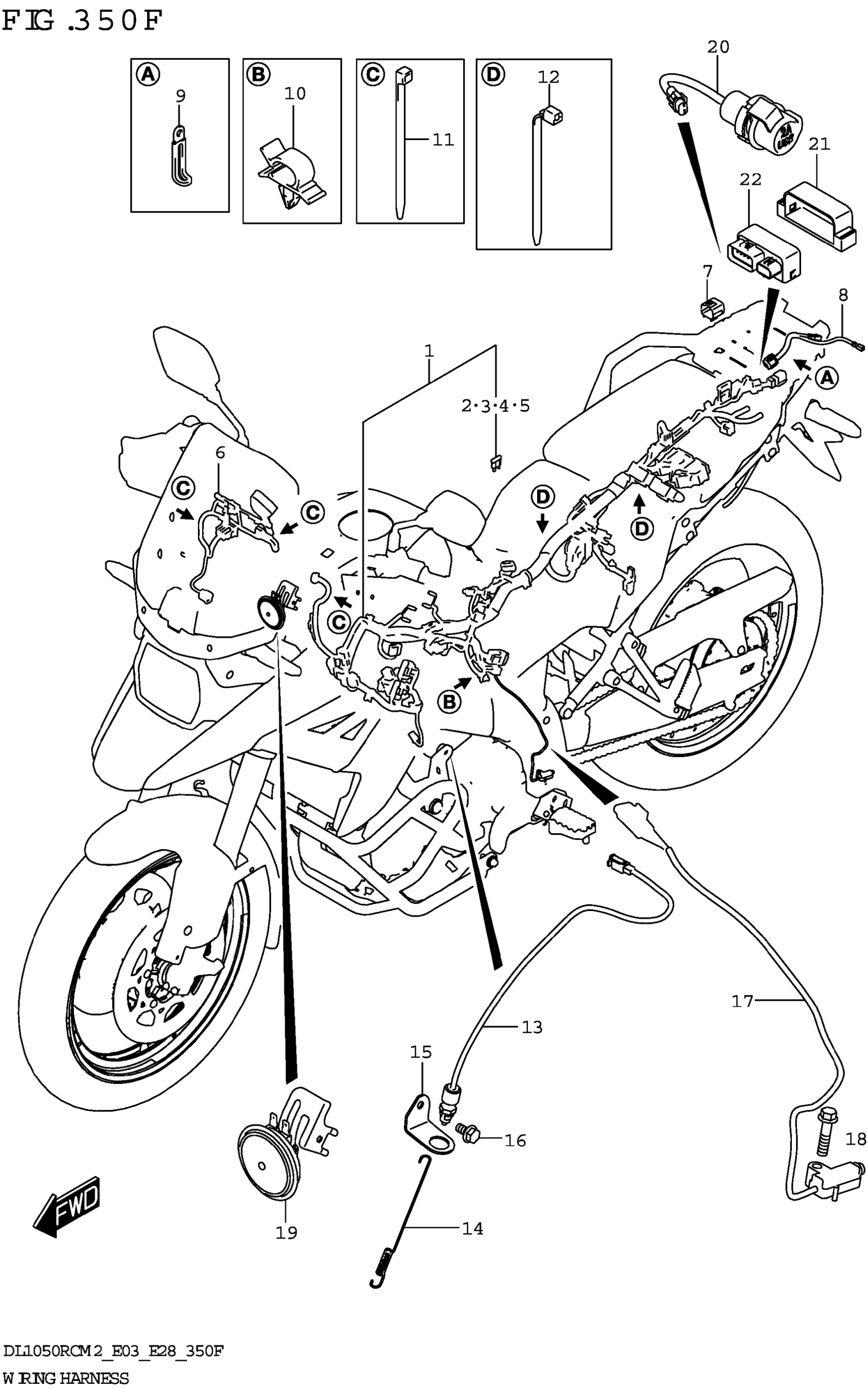

Suzuki DL1050RCM2 (2022) WIRING HARNESS (DL1050RQ) Diagram
