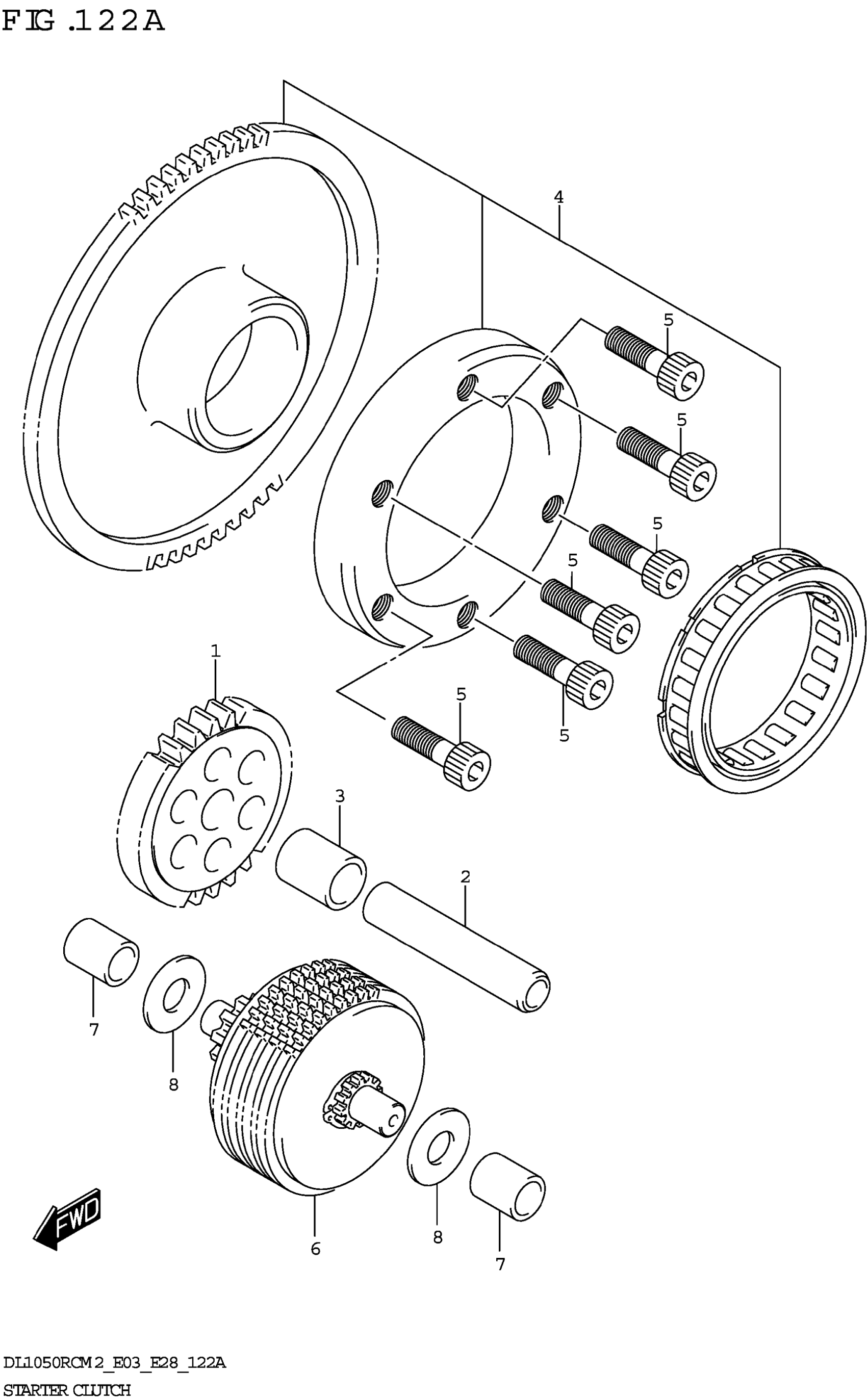

Suzuki DL1050RCM2 (2022) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR,STARTER IDLE NO.2 (NT:27

12612-06G00

Unavailable

2

PIN (7X12X50.5)

09206-12002

$16.00

3

SPACER (12.5X19X17.5)

09180-12140

$9.10

4

CLUTCH SET,STARTER (NT:72)

12600-06811

$347.67

5

BOLT (8X20)

09106-08106

$2.72

6

LIMITER ASSY,START ID GR NO.1 | (NT:44)

12600-06G01

Unavailable

7

BUSH,LIMITER GEAR SHAFT

12618-31G00

$4.03

8

SHIM (10X20X1)

09181-10195

$1.99
