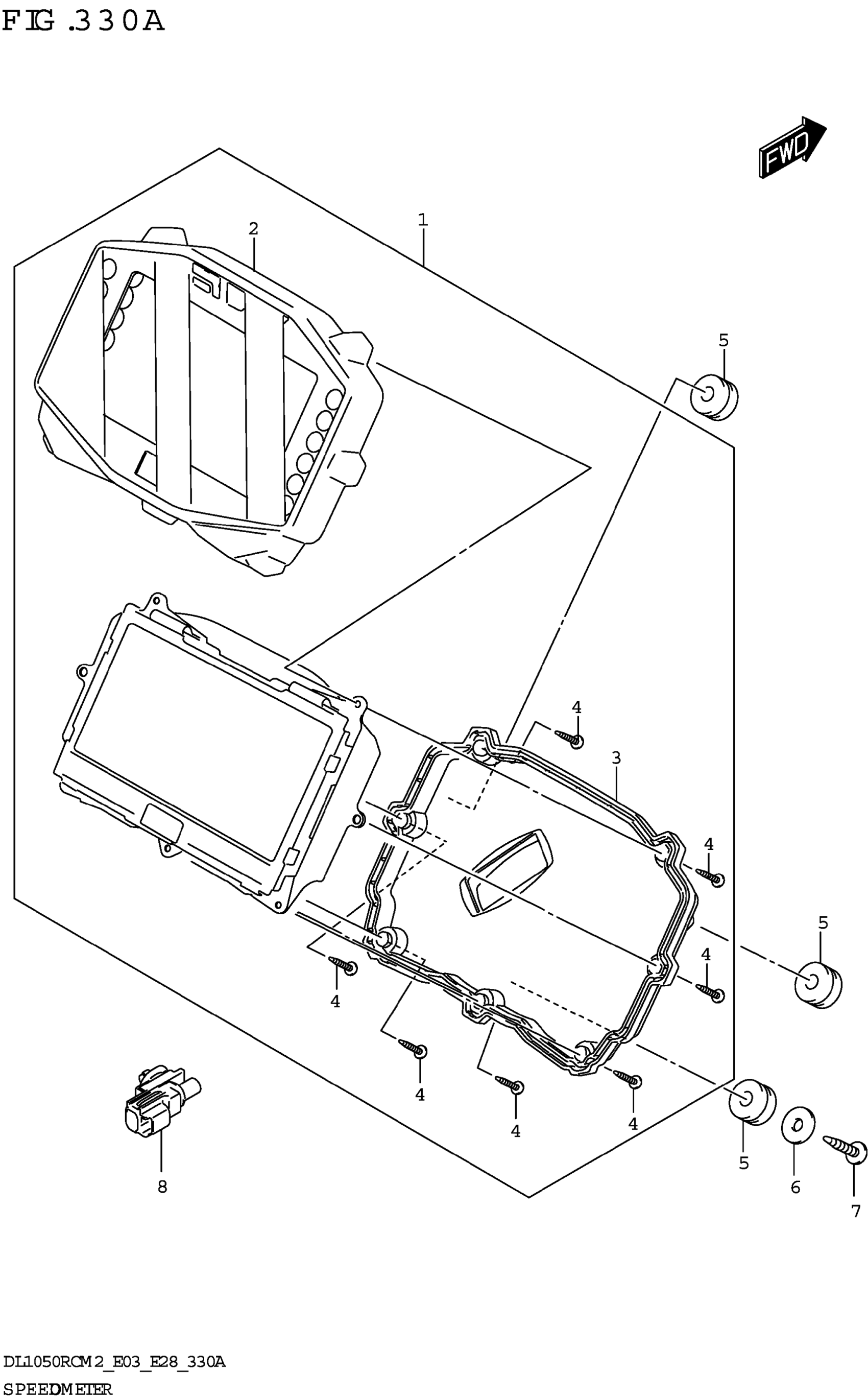

Suzuki DL1050RCM2 (2022) SPEEDOMETER (DL1050RQ) Diagram

#

Description

Price

1

SPEEDOMETER ASSY

34100-06L00

Unavailable

2

.CASE ASSY,UPPER

34150-06L00

$123.27

3

.CASE ASSY,LOWER

34111-17K00

$68.72

4

SCREW

34183-10C00

$2.11

5

CUSHION,SPEEDOMETER

34189-08J01

$3.59

6

WASHER (4.5X16X1.2)

09160-04026

$2.05

7

SCREW

03541-0416A

$1.49

8

SENSOR,AIR TEMP

95643-58J00

$50.50
