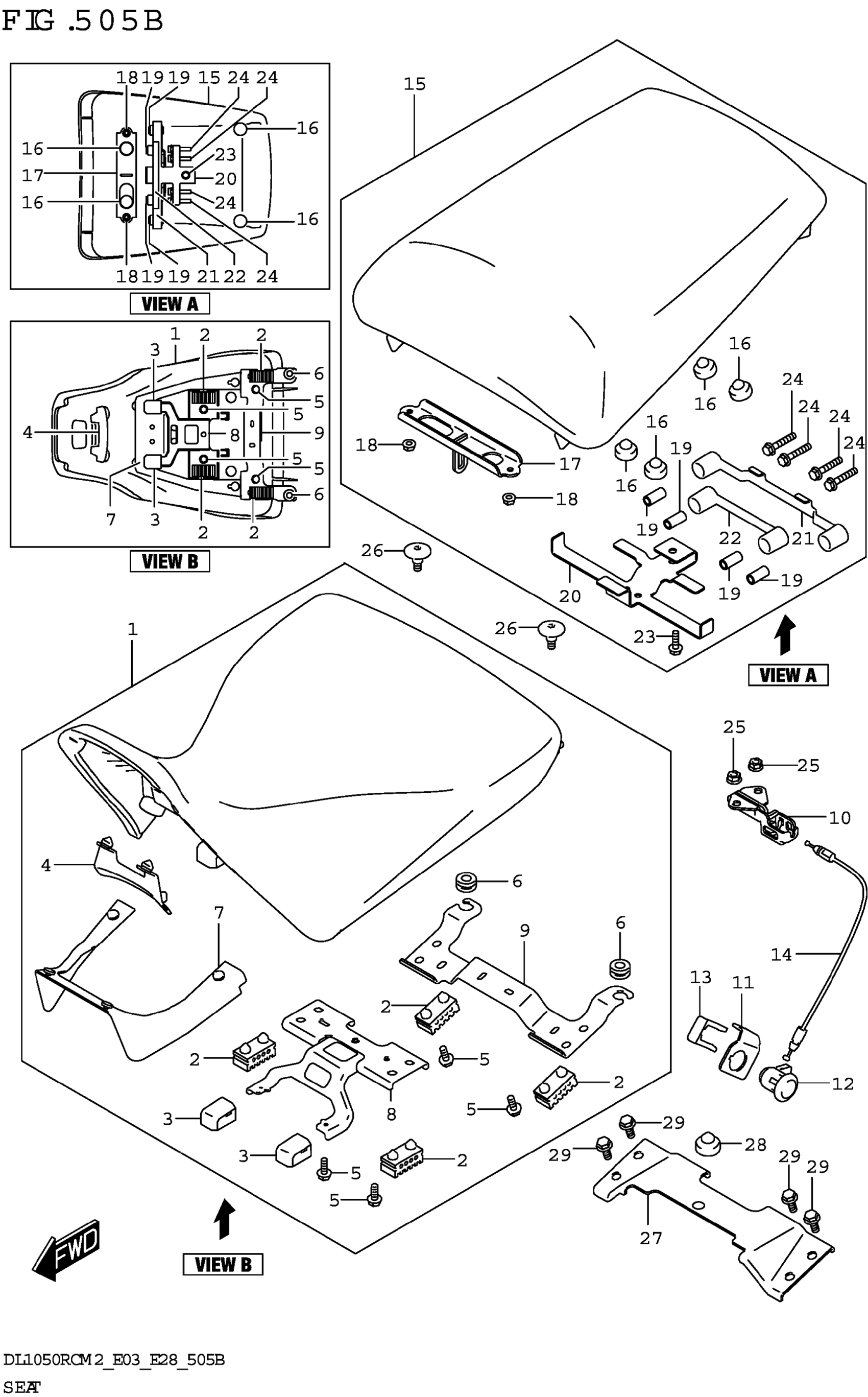

Suzuki DL1050RCM2 (2022) SEAT (DL1050RC) Diagram

#

Description
Price

1-1

SEAT ASSY (GRAY,BLACK) | BODY COLOR:YVB,B1F

45100-06L11-B03

$452.08

1-2

SEAT ASSY (GRAY,BLUE) | BODY COLOR:BD7,BT1

45100-06L11-B1H

$418.43

2

.CUSHION,SEAT (40X20X15)

45149-31300

$3.41

3

.CUSHION,SEAT HOOK

45141-06L00

$6.97

4

.CUSHION,SEAT MOUNT

45154-06L00

$12.25

5

BOLT

01550-0616A

$2.01

6

.CUSHION

09320-10069

$1.99

7

.SHEET,HEAT SHIELD

45256-06L00

$23.17

8

.FRAME,SEAT NO.2

45452-06L00

$51.38

9

.FRAME,SEAT

45451-06L00

$37.10

10

BRACKET,STRIKER SUPPORT

45220-04K20

$35.98

11

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.14

12

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$102.14

13

PLATE,SEAT LOCK ASSY

45289-11F00

$5.93

14

CABLE,SEAT LOCK

45280-06L00

$11.78

15-1

SEAT ASSY,PILLION (GRAY,BLACK | BODY COLOR:YVB,B1F

45300-06L10-B03

$447.73

15-2

SEAT ASSY,PILLION (GRAY,BLUE) | BODY COLOR:BD7,BT1

45300-06L10-B1H

$447.73

16

CUSHION

09321-10012

$2.80

17

.STRIKER,SEAT LOCK

45290-17K00

$43.82

18

NUT (6X12)

08316-1006A

$2.25

19

.SPACER (6.5X12X21)

09180-06314

$4.62

20

.PLATE,SEAT

45321-06L00

$37.30

21

.SPACER,SEAT NO.1

45312-06L00

$9.85

22

.SPACER,SEAT NO.2

45313-06L00

$9.33

23

BOLT (6X20)

01550-0620A

$2.01

24

BOLT

01550-0635A

$2.38

25

NUT (6X12)

08316-1006A

$2.25

26

SCREW (6X20)

09139-06193

$3.93

27

BRIDGE,SEAT

45121-06L00

$25.50

28

CUSHION

09321-10012

$2.80

29

BOLT

01550-0616A

$2.01
