Description

Price

1

HUB,REAR

64111-31J10

$717.35

2-1

RIM,RR WHEEL (17M/CXMT4.00) | GOLD BODY COLOR:YVB,BT1

65311-31J10

$567.22

2-2

RIM,RR WHEEL (17M/CXMT4.00) | BLACK BODY COLOR:B1F

65311-31J00

$567.22

2-3

RIM,RR WHEEL (17M/CXMT4.00) | BODY COLOR:BD7

65311-31J20

$980.43

3

SPOKE,REAR WHEEL INNER

65321-31J01

$7.40

4

SPOKE,REAR WHEEL OUTER

65322-31J01

$7.87

5

NIPPLE, WHEEL

55326-11J00

$5.07

6

ABSORBER,RR HUB SHOCK

64651-35F30

$50.20

7

RING,SPEED SENSOR RR (50T)

64162-17G00

$23.17

8

BOLT

07130-0512A

$2.25

9

SPACER,REAR HUB BEARING (20.8 | 27.2X124)

64731-49G00

$66.18

10

BEARING (28X52X12)

09262-28062

$24.53

11

SEAL,OIL (37X52X8)

09284-37002

$7.40

12

DISC,REAR BRAKE

69211-06G00

$345.22

13

BOLT (8X21)

09106-08160

$3.32

14

SPACER,REAR AXLE,R

64741-35F10

$12.90

15

DRUM,RR SPROCKET

64610-35F30

$363.98

16

AXLE,RR

64711-31J00

$95.63

17

RETAINER,RR SPROCKET DRUM

64733-35F00

$25.45

18

SPACER,REAR AXLE,L

64751-47H10

$21.15

19

NUT,REAR AXLE

64721-17K00

$15.68

20

BEARING (32X65X17)

09262-32024

$36.61

21

SEAL,OIL (39X65X7)

09285-39001

$9.86

22

SPROCKET,REAR (NT:41)

64511-35F20

$100.70

23

NUT

08319-3110A

$2.80

24

WASHER (25.2X42X3.2)

09160-25070

$4.44

25

TIRE,REAR This part replaces 65110-06L00.

65110-06L01

$300.77

26

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.46

27

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$6.08

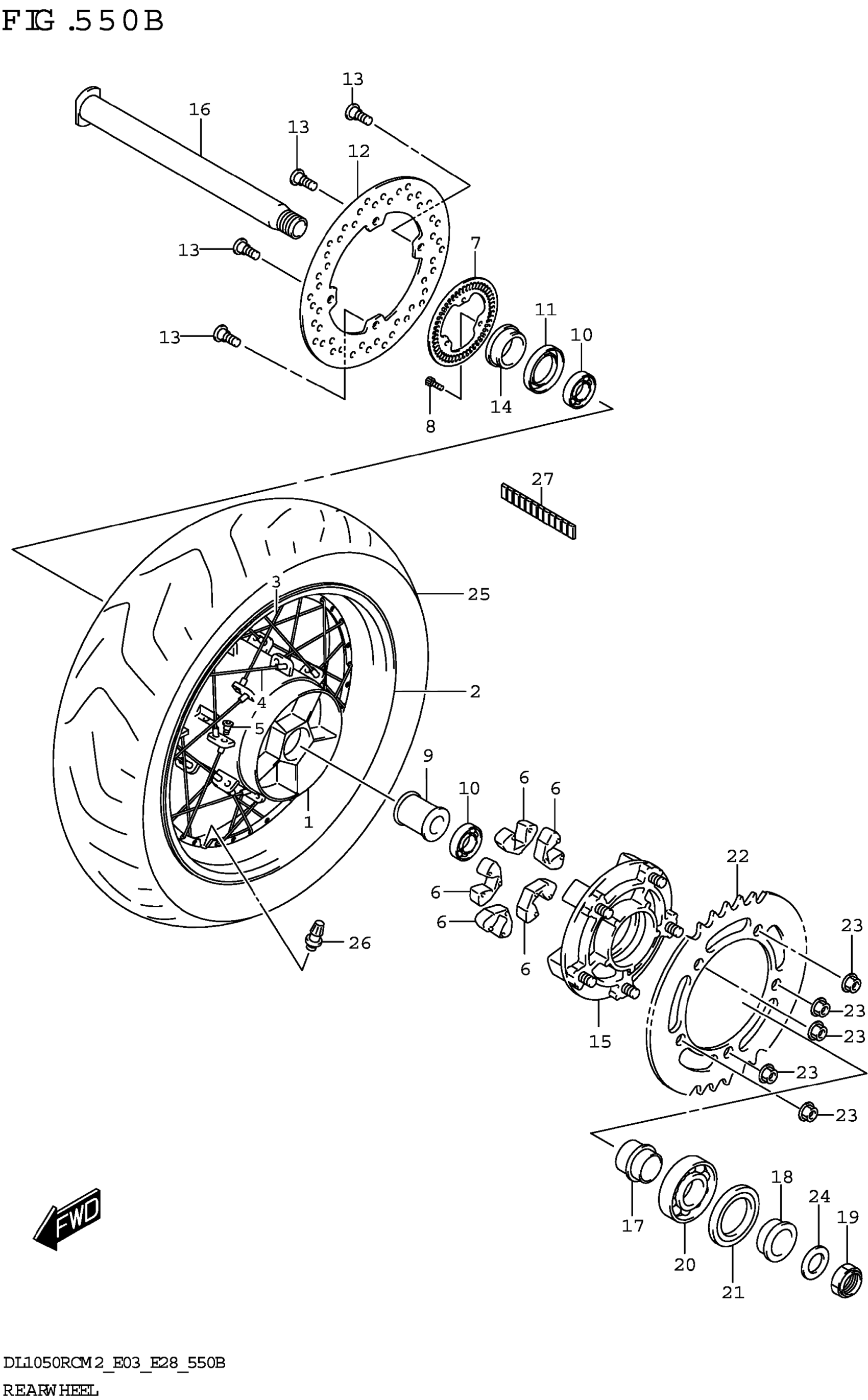

Suzuki DL1050RCM2 (2022) REAR WHEEL (DL1050RC) Diagram
