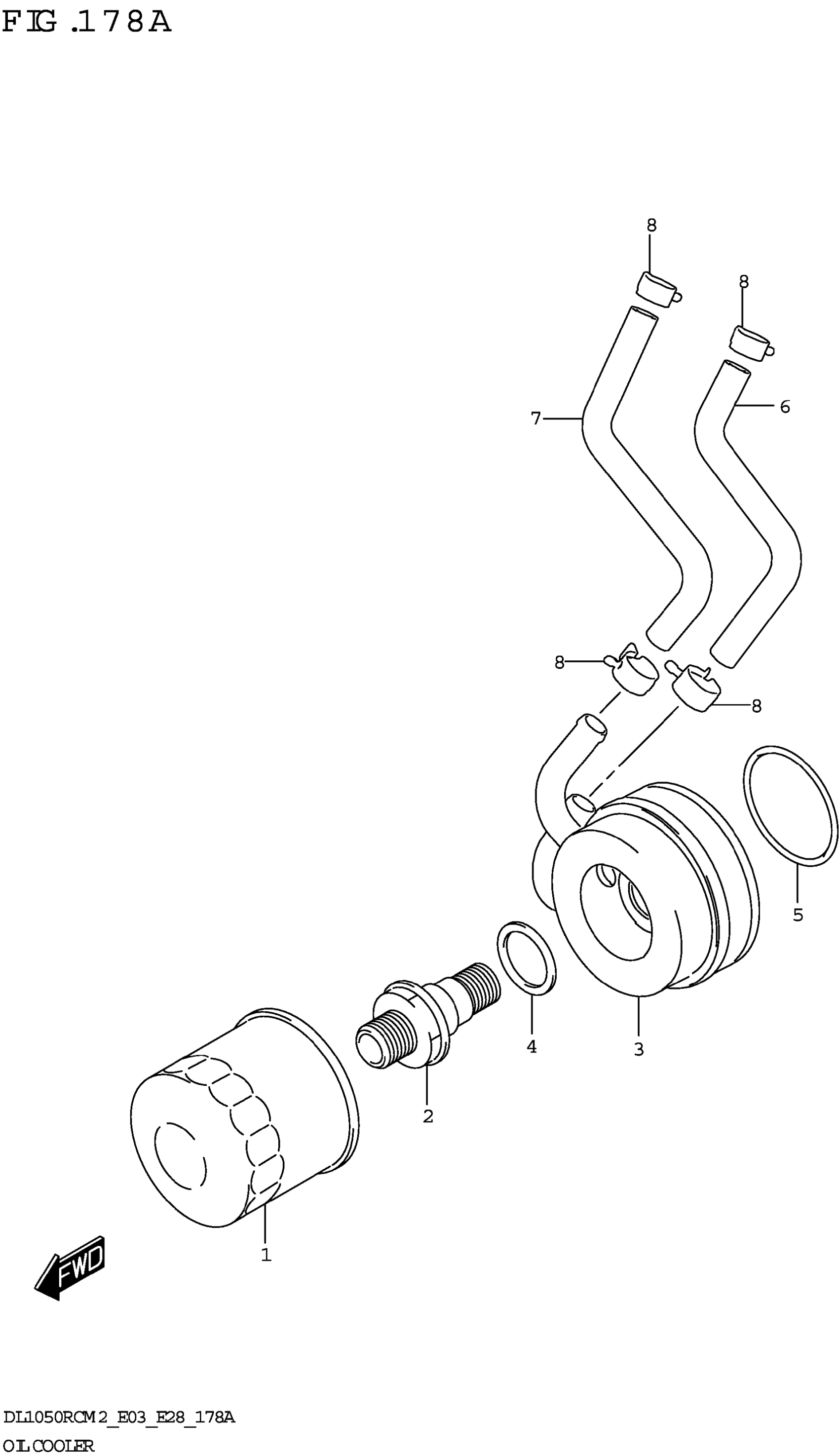

Suzuki DL1050RCM2 (2022) OIL COOLER Diagram

#

Description

Price

1

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$13.10

2

BOLT,OIL COOLER UNION

16591-06L00

$26.90

3

COOLER ASSY,OIL

16600-06L00

$488.38

4

SHIM (21X31X0.8)

09181-21002

$2.93

5

.O RING (D:2.4,ID:60.5)

09280-60005

$3.18

6

HOSE,OIL COOLER WATER INLET

16461-06L00

$18.62

7

HOSE,OIL COOLER WATER OUTLET

16471-06L00

$19.15

8

CLIP (ID:16.5)

09401-16407

$2.44
