Description

Price

1

HUB,FRONT

54111-31J10

$824.88

2

SPACER,FR HUB BEARING

54731-33E20

$55.32

3

BEARING (25X52X15)

09262-25191

$21.91

4

.SEAL,OIL (32X52X7)

09285-32004

$7.20

5-1

RIM,FR WHEEL (19M/CXMT2.50) | GOLD BODY COLOR:YVB,BT1

55311-31J10

$976.83

5-2

RIM,FR WHEEL (19M/CXMT2.50) | BLACK BODY COLOR:B1F

55311-31J00

$945.35

5-3

RIM,FR WHEEL (19M/CXMT2.50) | BODY COLOR:BD7

55311-31J20

$901.63

6

SPOKE, FRONT WHEEL INNER

55321-11J01

$7.45

7

SPOKE,FRONT WHEEL OUTER

55322-31J01

$7.68

8

NIPPLE, WHEEL

55326-11J00

$4.85

9

RING,SPEED SENSOR FR

54162-27G10

$116.12

10

BOLT

07130-0512A

$2.19

11

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

12

AXLE,FR

54711-31J00

$155.45

13

NUT,FR AXLE

54712-47H00

$46.87

14

SPACER,FR AXLE,R

54751-41G10

$17.99

15

DISC,FRONT BRAKE

59210-31J10

$296.75

16

BOLT,DISC

09106-08208

$2.70

17

TIRE,FRONT

55110-06L00

$294.27

18

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$6.08

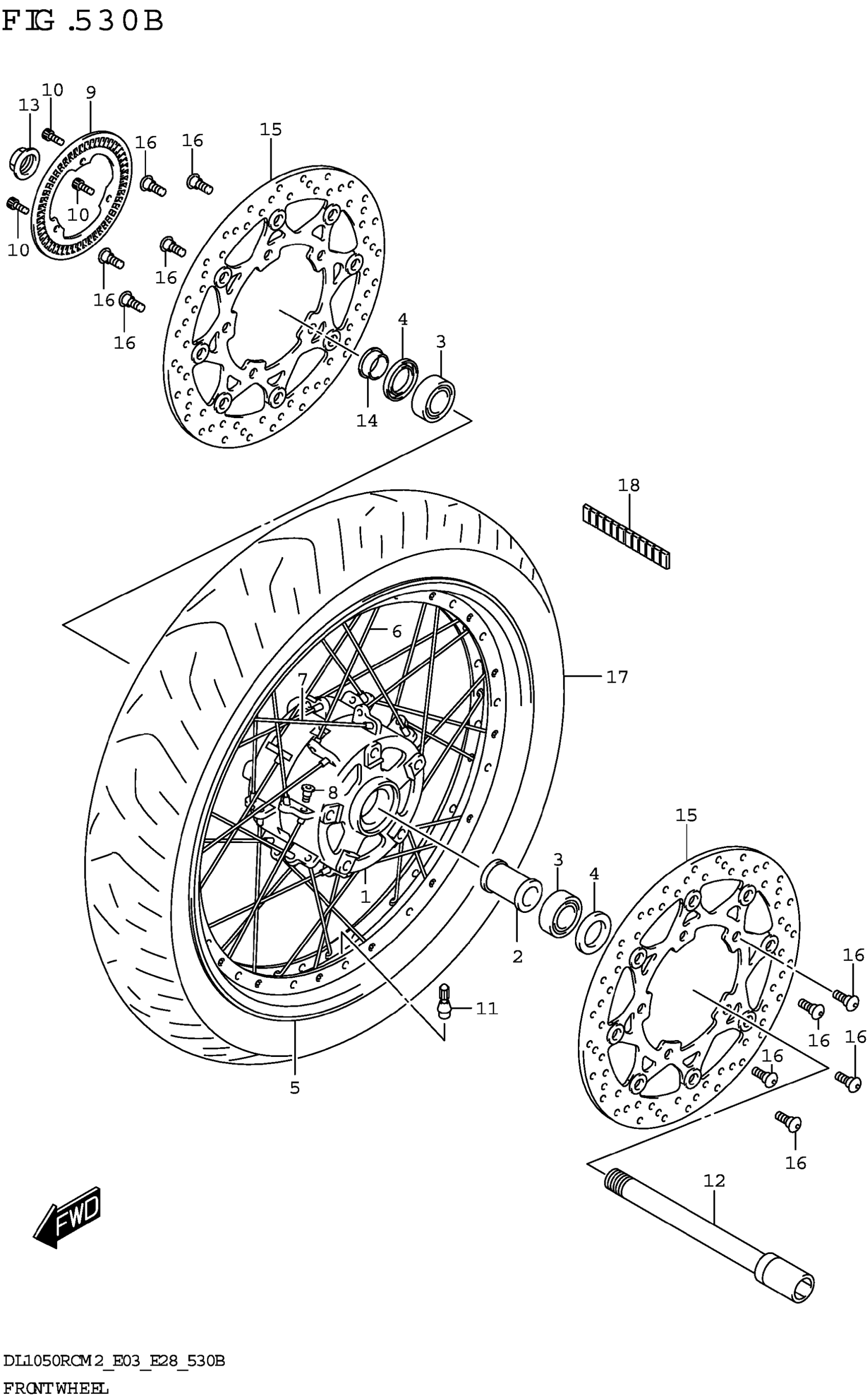

Suzuki DL1050RCM2 (2022) FRONT WHEEL (DL1050RC) Diagram
