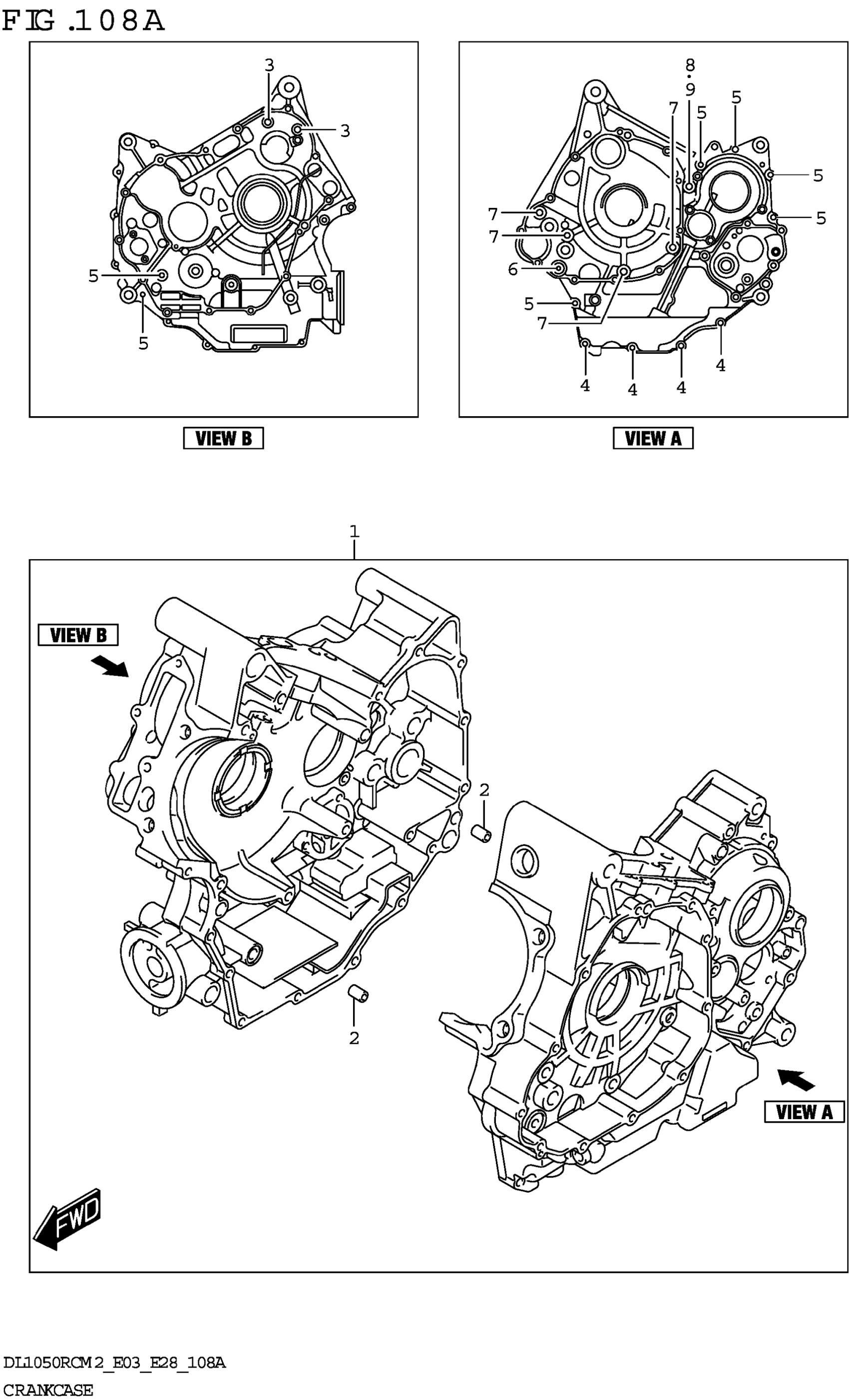

Suzuki DL1050RCM2 (2022) CRANKCASE Diagram

#

Description

Price

1

CRANKCASE SET

11306-06840

$2,295.27

2

.PIN,CRANKCASE

11319-33E00

Unavailable

3

.BOLT (8X110)

09106-08142

Unavailable

4

BOLT

01547-0630A

$2.32

5

.BOLT

01547-0670A

$2.92

6

.BOLT

01547-0685A

Unavailable

7

.BOLT

07120-0890A

Unavailable

8

.BOLT (8X125)

09106-08136

Unavailable

9

WASHER

08322-0108A

$1.92
