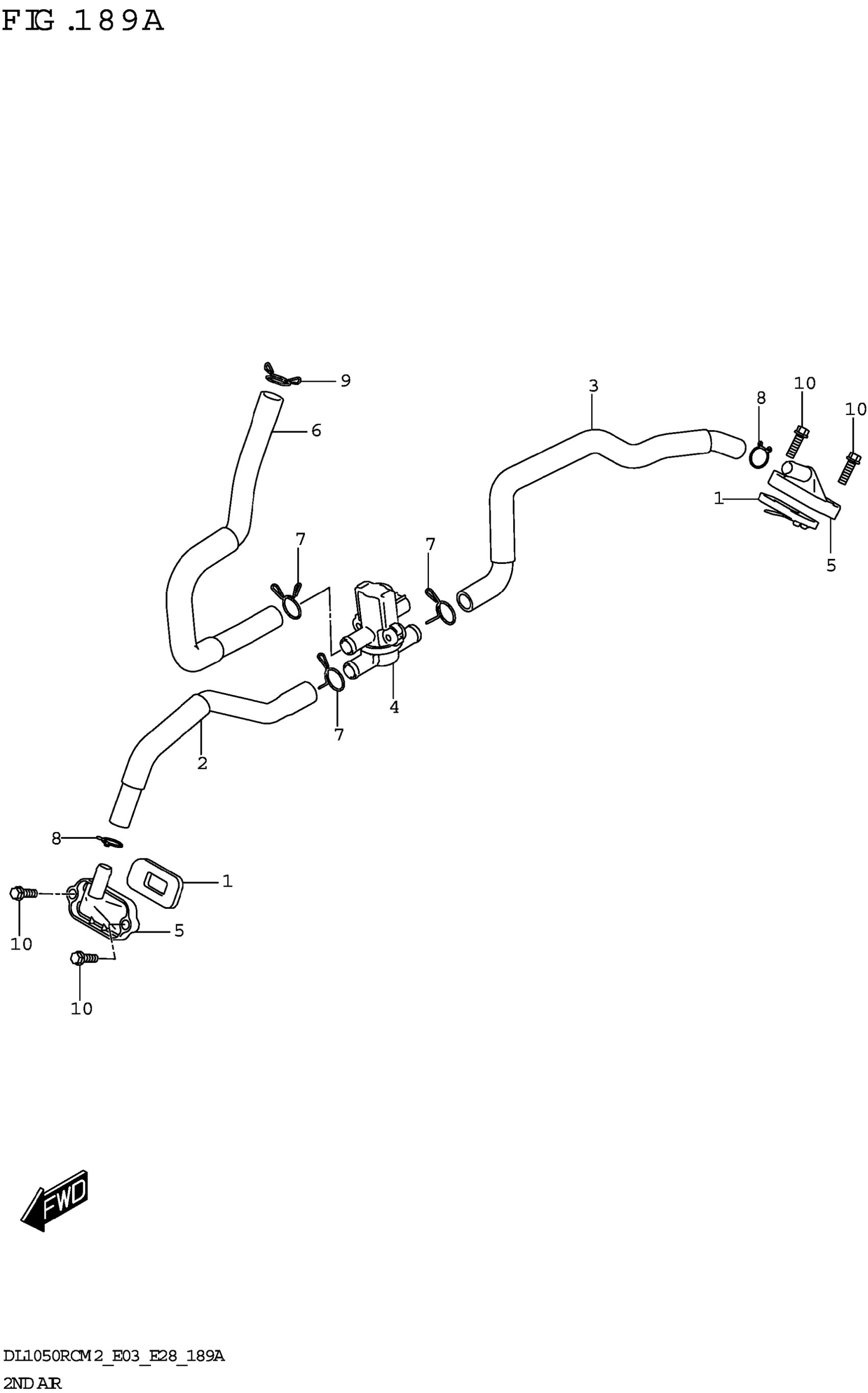

Suzuki DL1050RCM2 (2022) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY,2ND AIR REED

18450-28K00

$35.67

2

HOSE,2ND AIR VALVE FR

18461-06L00

$19.27

3

HOSE,2ND AIR VALVE RR

18471-06L00

$23.12

4

VALVE ASSY,AIR CUT

18510-29G31

$128.72

5

COVER,2ND AIR

18531-06G01

$13.41

6

HOSE,2ND AIR CLNR

18711-06L00

$22.17

7

CLIP

09401-18101

Unavailable

8

CLIP (ID:15.5)

09401-15101

$2.26

9

CLIP

09401-17201

$3.15

10

BOLT

01547-0620A

$2.03
