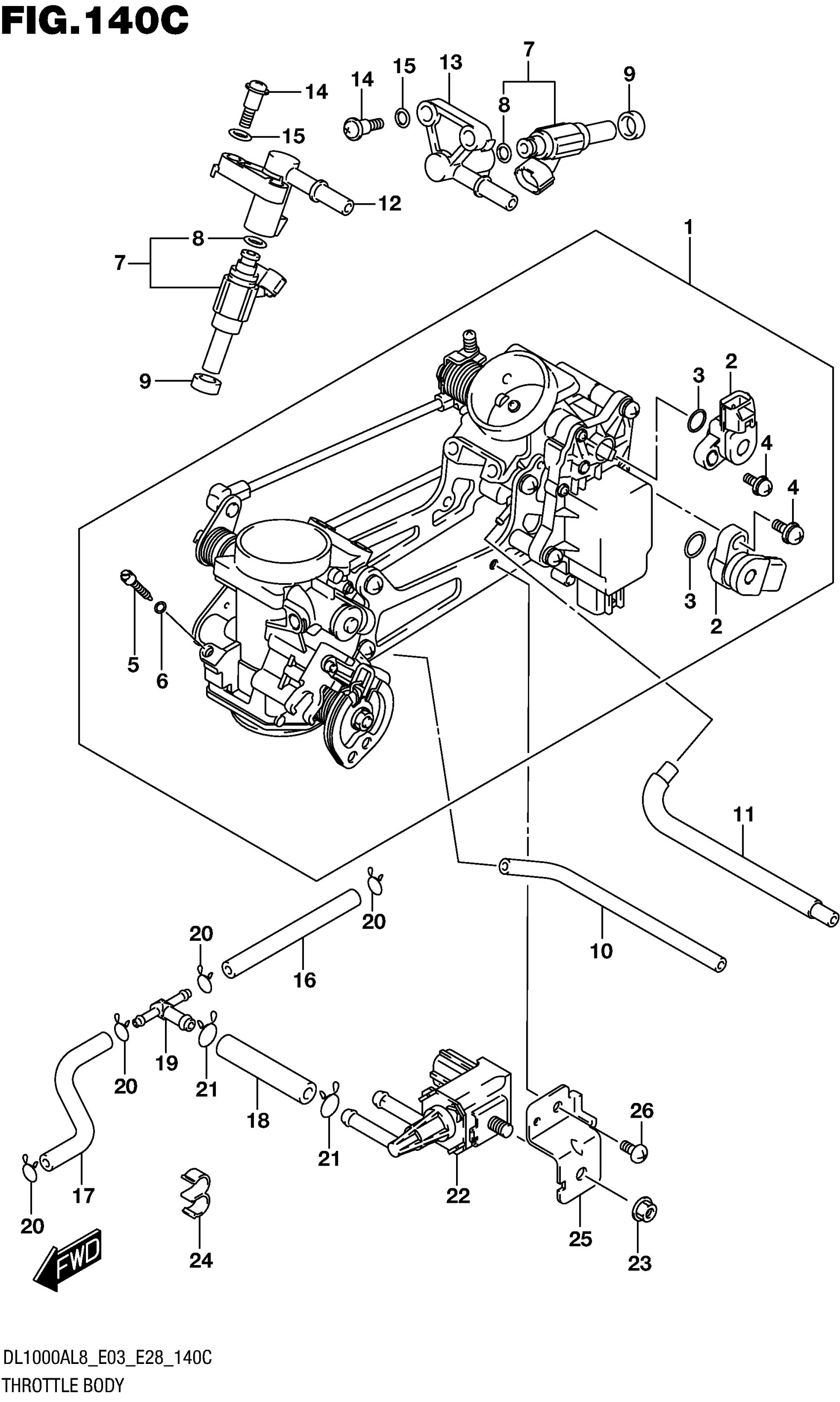

Suzuki DL1000XAL8 (2018) THROTTLE BODY (DL1000AL8 E33) Diagram

#

Description
Price

1

THROTTLE BODY

13405-31J10

Unavailable

2

.SENSOR ASSY

13580-27G21

$163.47

3

.O-RING This part replaces 13575-29G00.

13575-29G01

$2.97

4

.SCREW

13605-02F00

$3.50

5

.ADJUSTER

13662-22J00

$19.15

6

.O RING

13453-36F00

$6.12

7

.INJECTOR ASSY

15710-31J00

Unavailable

8

.O-RING

15717-58B00

$9.11

9

SEAL

15722-14J00

$10.70

10

HOSE This part replaces 13683-48G10.

13683-48G11

$46.50

11

HOSE

13683-31J20

Unavailable

12

DELIVERY PIPE

15731-11J00

Unavailable

13

DELIVERY PIPE

15732-11J00

Unavailable

14

SCREW

13601-11J00

$4.51

15

PACKING This part replaces 13602-29G00.

13602-29G01

$2.52

16

HOSE

13681-06G40

Unavailable

17

HOSE

13683-31J00

Unavailable

18

HOSE

13683-31J10

Unavailable

19

NIPPLE

13685-04F10

$12.50

20

CLIP

09401-06101

$2.06

21

CLIP This part replaces 09401-10410.

09401-10401

$1.45

22

VALVE,CANISTER PURGE

18117-52G10

$168.22

23

NUT

08316-1006A

$2.19

24

CLIP

09408-00200

$2.98

25

BRACKET

13627-31J00

$42.95

26

SCREW

13602-06128

$2.80
