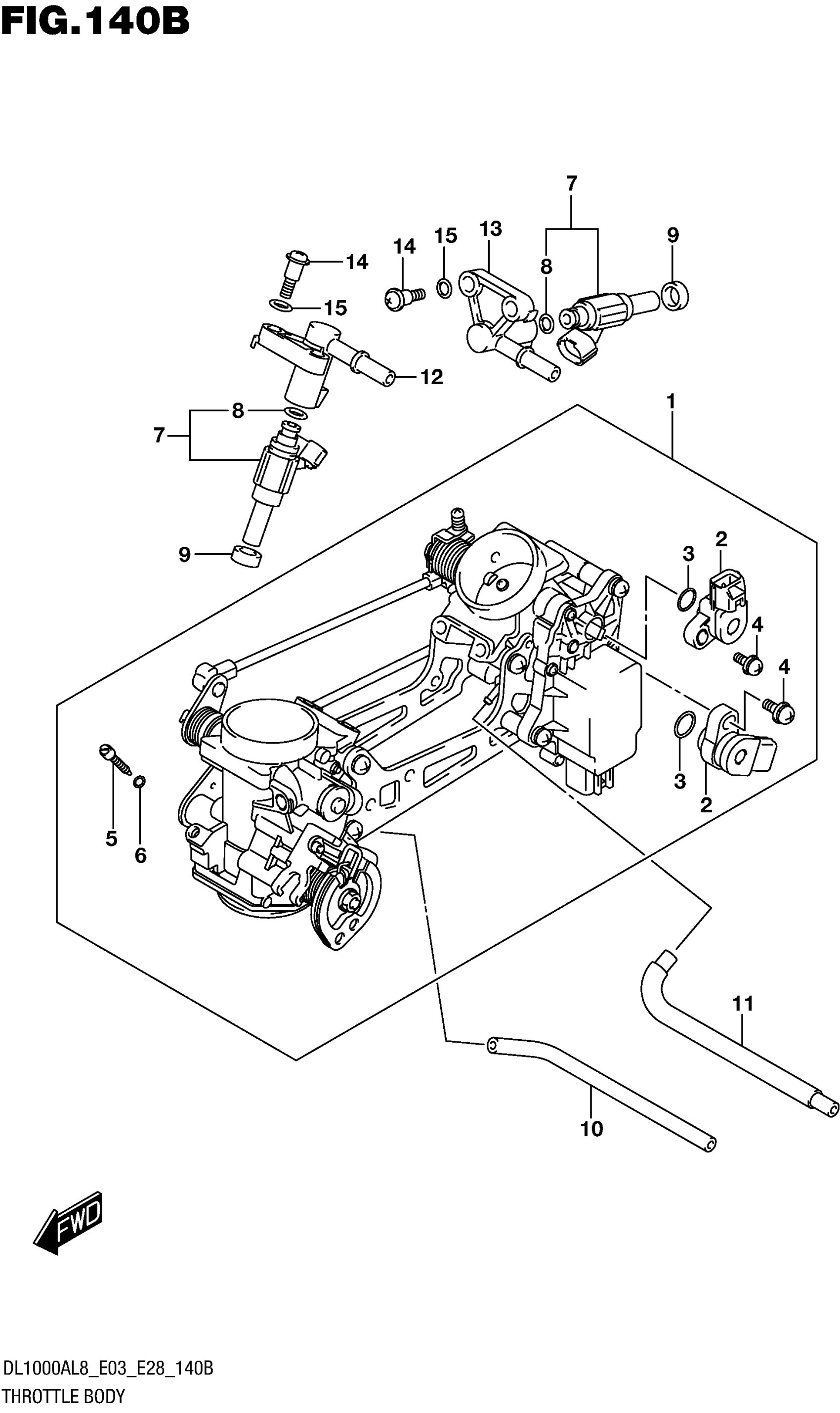

Suzuki DL1000XAL8 (2018) THROTTLE BODY (DL1000AL8 E28) Diagram

#

Description
Price

1

THROTTLE BODY This part replaces 13405-31J00.

13405-31J01

$891.42

2

.SENSOR ASSY

13580-27G21

$145.53

3

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

4

.SCREW

13605-02F00

$3.71

5

.ADJUSTER

13662-22J00

$16.97

6

.O RING

13453-36F00

$5.58

7

.INJECTOR ASSY

15710-31J00

Unavailable

8

.O-RING

15717-58B00

$9.95

9

SEAL

15722-14J00

$11.36

10

HOSE This part replaces 13683-48G10.

13683-48G11

$41.20

11

HOSE

13683-31J20

Unavailable

12

DELIVERY PIPE

15731-11J00

Unavailable

13

DELIVERY PIPE

15732-11J00

Unavailable

14

SCREW

13601-11J00

$4.79

15

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43
