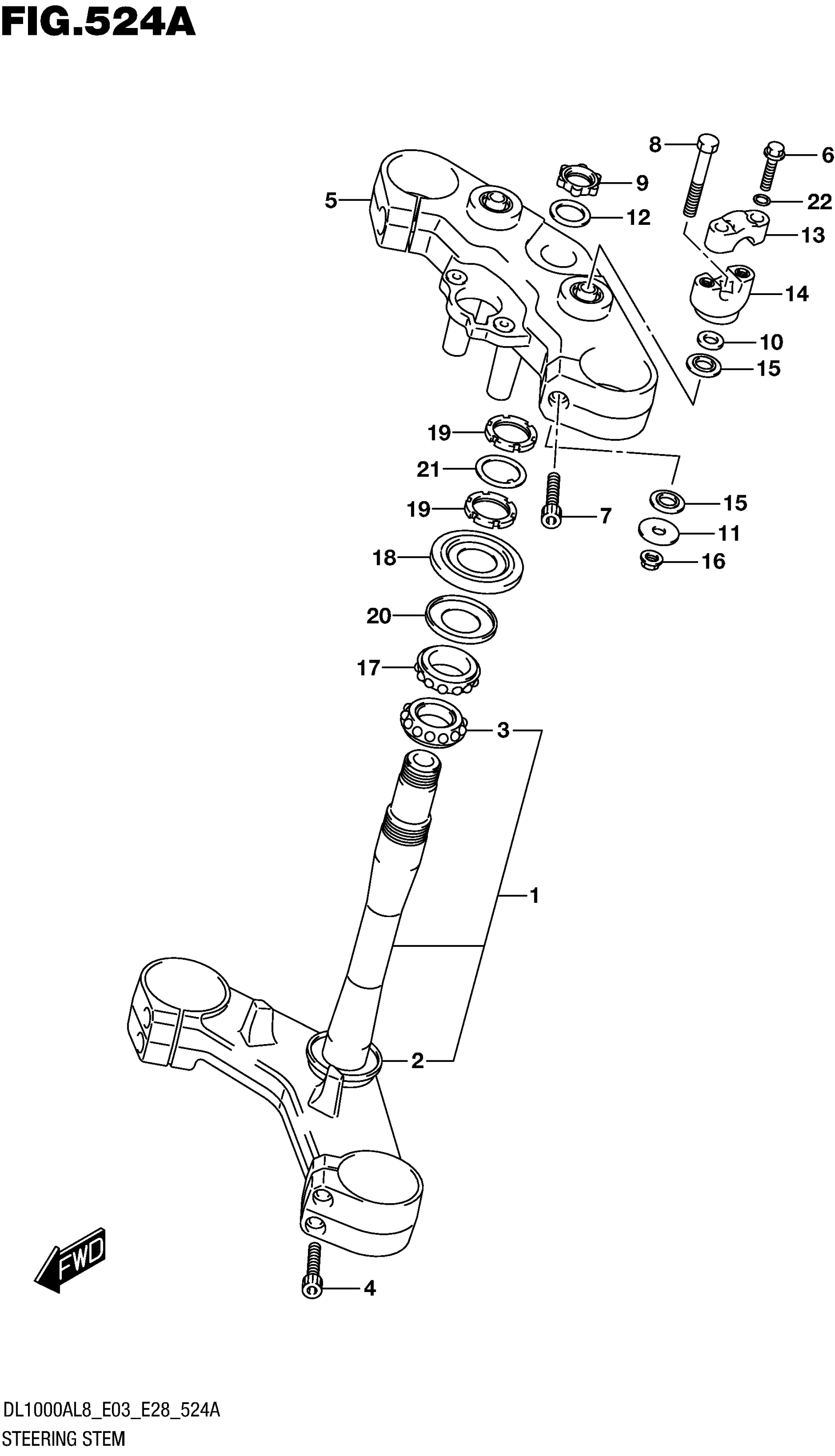

Suzuki DL1000XAL8 (2018) STEERING STEM (DL1000AL8 E03) Diagram

#

Description
Price

1

BRACKET,UNDER

51410-31J00

$586.82

2

.SEAL, STEERING LOWER

51644-12C00

$9.44

3

.BEARING (30X55X17)

09267-30010

$48.11

4

BOLT (8X40)

51328-44G10

$5.58

5

BRACKET, UPPER (BLACK)

51311-31J00-YTA

$240.78

6

BOLT

51147-31J00

$2.45

7

BOLT (8X40)

51328-44G10

$5.58

8

BOLT

51321-17H10

$6.22

9

NUT, CAP

51353-24F00

$43.68

10

WASHER

51354-17H00

$3.70

11

WASHER

51355-16G00

$5.77

12

WASHER

51356-24F50

$6.52

13

HOLDER, HANDLE (BLACK)

56211-31J00-YTA

Unavailable

14

HOLDER, HANDLE (BLACK)

56221-08J00-YTA

$93.98

15

RUBBER,HANDLE HOLDER

56245-31J00

$2.85

16

NUT

08319-3110A

$2.73

17

BEARING (30X55X17)

09267-30010

$48.11

18

COVER, STEERING UPPER

51643-41G00

$8.71

19

NUT, STEERING STEM

51631-33E00

$23.64

20

SEAL, STEERING LWR

51644-12C00

$9.44

21

WASHER, STEERING STEM

51641-33E00

$6.20

22

WASHER

09164-08015

$3.21
