Description

Price

1

CALIPER ASSY,RR

69100-31J00-999

$494.42

2

.PISTON SET

69100-44890

$74.95

3

..SEAL SET, PISTON

69102-05880

$18.63

4

.BOOT, AXLE

59112-44B00

$8.52

5

.SPRING, PAD

69115-44G00

$19.85

6

.PIN, PAD

59141-40F00

$36.85

7

.PIN, BOLT

69105-44G00

$13.86

8

.RETAINER

69116-44G00

$10.46

9

.BLEEDER

59121-18410

$8.35

10

.CAP, BLEEDER PLUG

55156-66310

$4.94

11

.BRACKET

69150-31J00

$326.40

12

.BOLT

69182-44G00

$11.90

13

.SLEEVE

69185-44G00

$24.37

14

.BOOT, SLEEVE

69186-44G00

$13.01

15

PAD & SHIM SET

69101-44890

$67.55

16

.INSULATOR

69132-44G10

$17.50

17

.SHIM

69133-44G00

$11.18

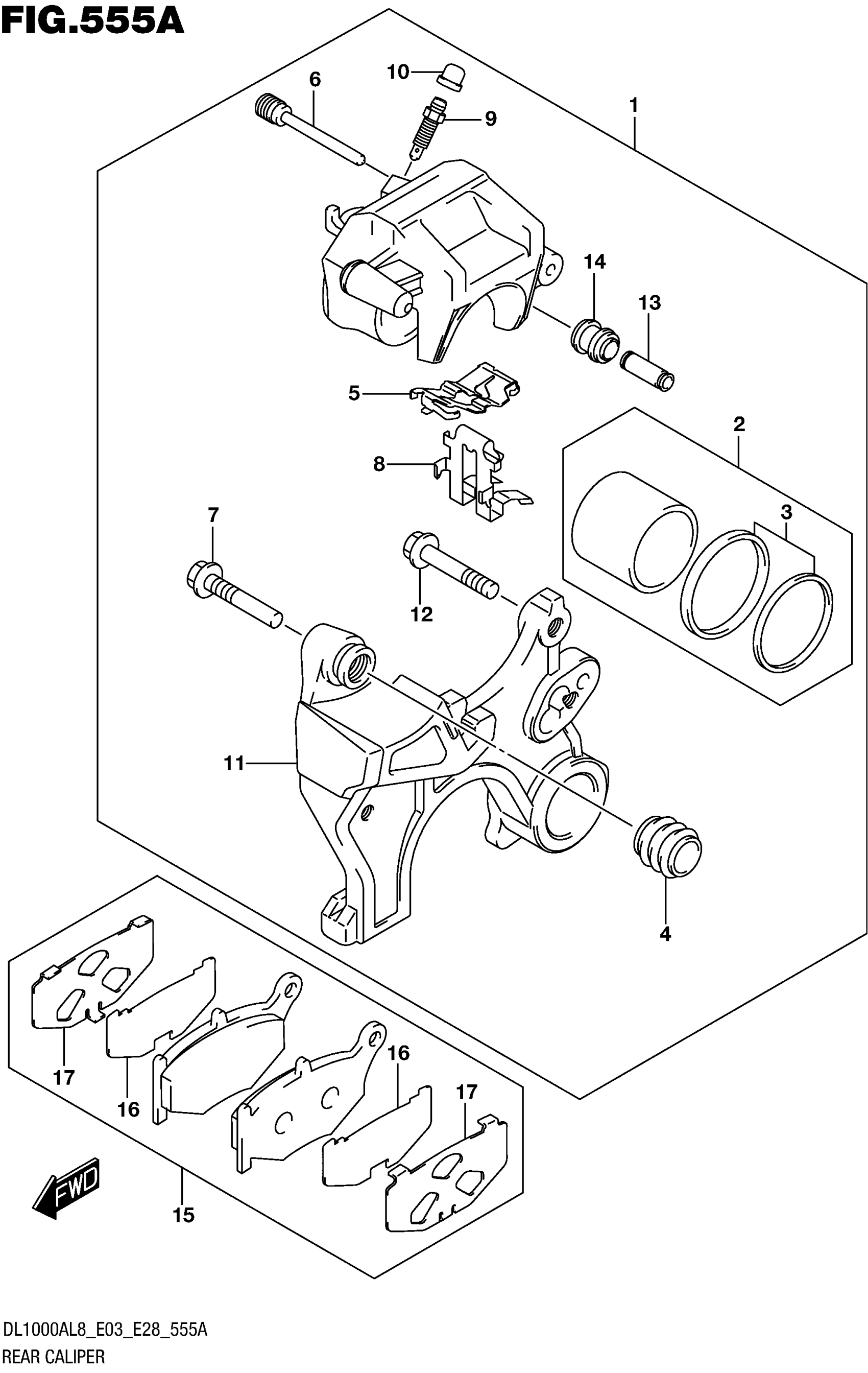

Suzuki DL1000XAL8 (2018) REAR CALIPER Diagram
