2018 Suzuki DL1000XAL8 Front Caliper Diagram

← All diagrams

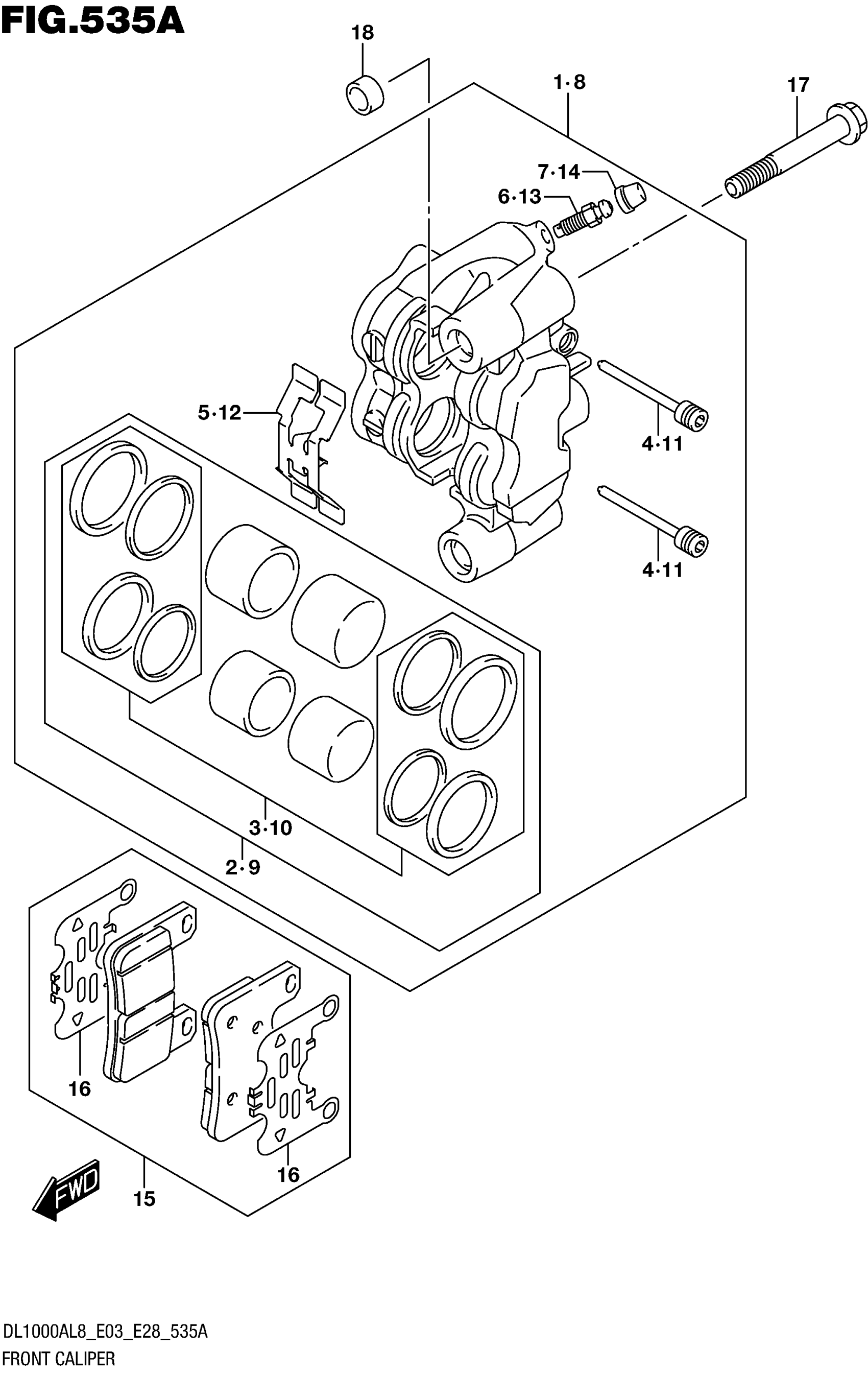

Find the part on the Front Caliper diagram for your 2018 Suzuki DL1000XAL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki DL1000XAL8 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,FR RH

59100-31J00-999

1
Out of stock

2

.PISTON SET

59100-31810

1
Out of stock

3

..SEAL SET, PISTON

59101-47810

1
Out of stock

4

.PIN, PAD

59141-41G10

2

$26.91

In stock

5

.SPRING, PAD

59151-29G00

1

$12.80

In stock

6

.BLEEDER

59121-18410

1
Out of stock

7

.CAP BLEEDER PLUG

55156-66310

1
Out of stock

8

CALIPER ASSY,FR LH

59300-31J00-999

1
Out of stock

9

.PISTON SET

59100-31810

1
Out of stock

10

..SEAL SET, PISTON

59101-47810

1
Out of stock

11

.PIN, PAD

59141-41G10

2

$26.91

In stock

12

.SPRING, PAD

59151-29G00

1

$12.80

In stock

13

.BLEEDER

59121-18410

1
Out of stock

14

.CAP BLEEDER PLUG

55156-66310

1
Out of stock

15

PAD & SHIM SET

59100-31820

2
Out of stock

16

.SHIM

59171-31J00

4
Out of stock

17

BOLT (10X70)

09103-10392

4
Out of stock

18

PIN, CALIPER

59151-41G00

4

$11.94

In stock
