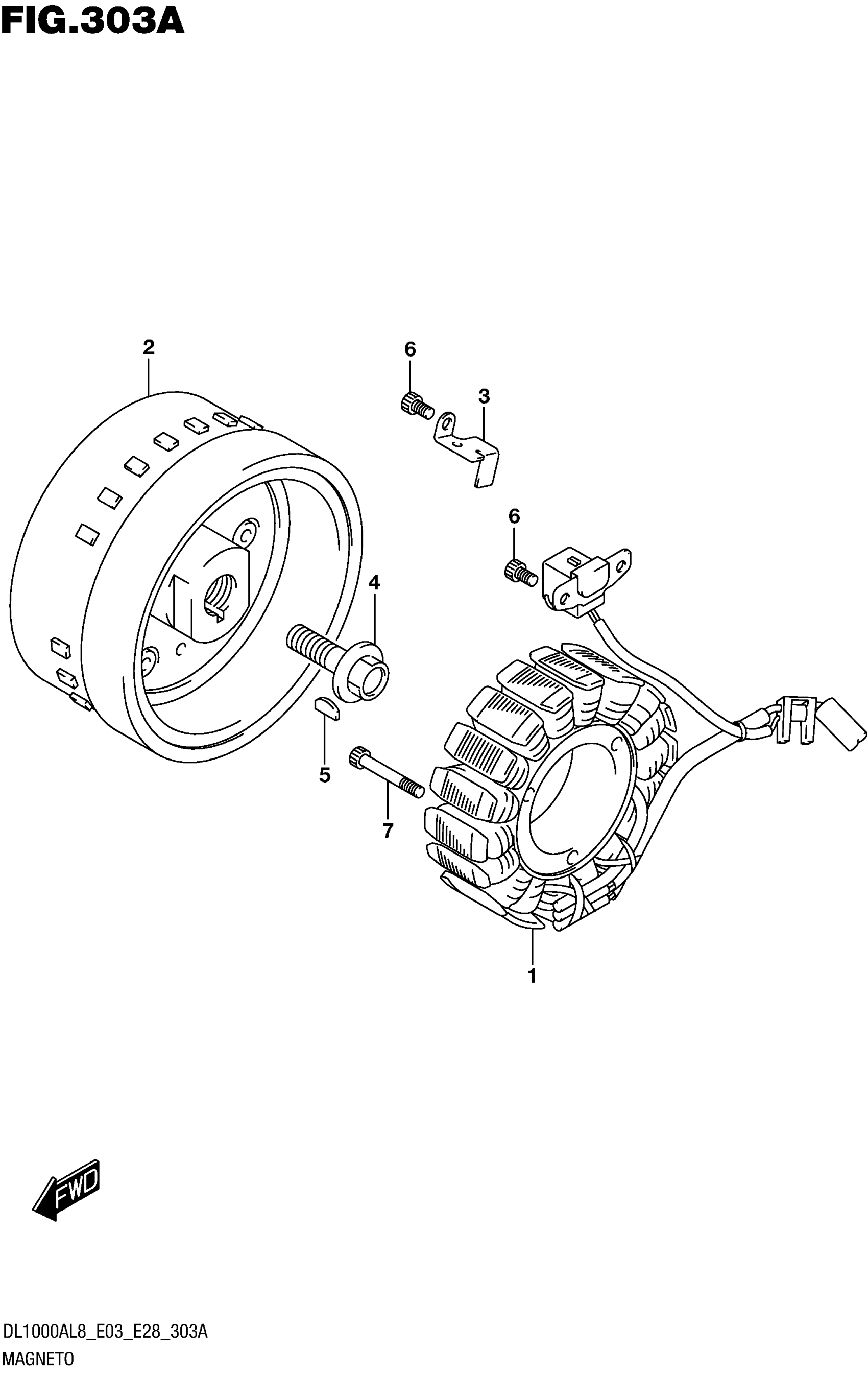

Suzuki DL1000XAL8 (2018) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-31J00

$547.28

2

ROTOR ASSY

32102-31J00

Unavailable

3

CLAMP, MAGNETO

32371-13E30

$5.00

4

BOLT (14X43)

09103-14001

$11.82

5

KEY

09420-04008

$3.42

6

BOLT

07130-0512A

$2.19

7

BOLT (6X40)

09106-06120

Unavailable
