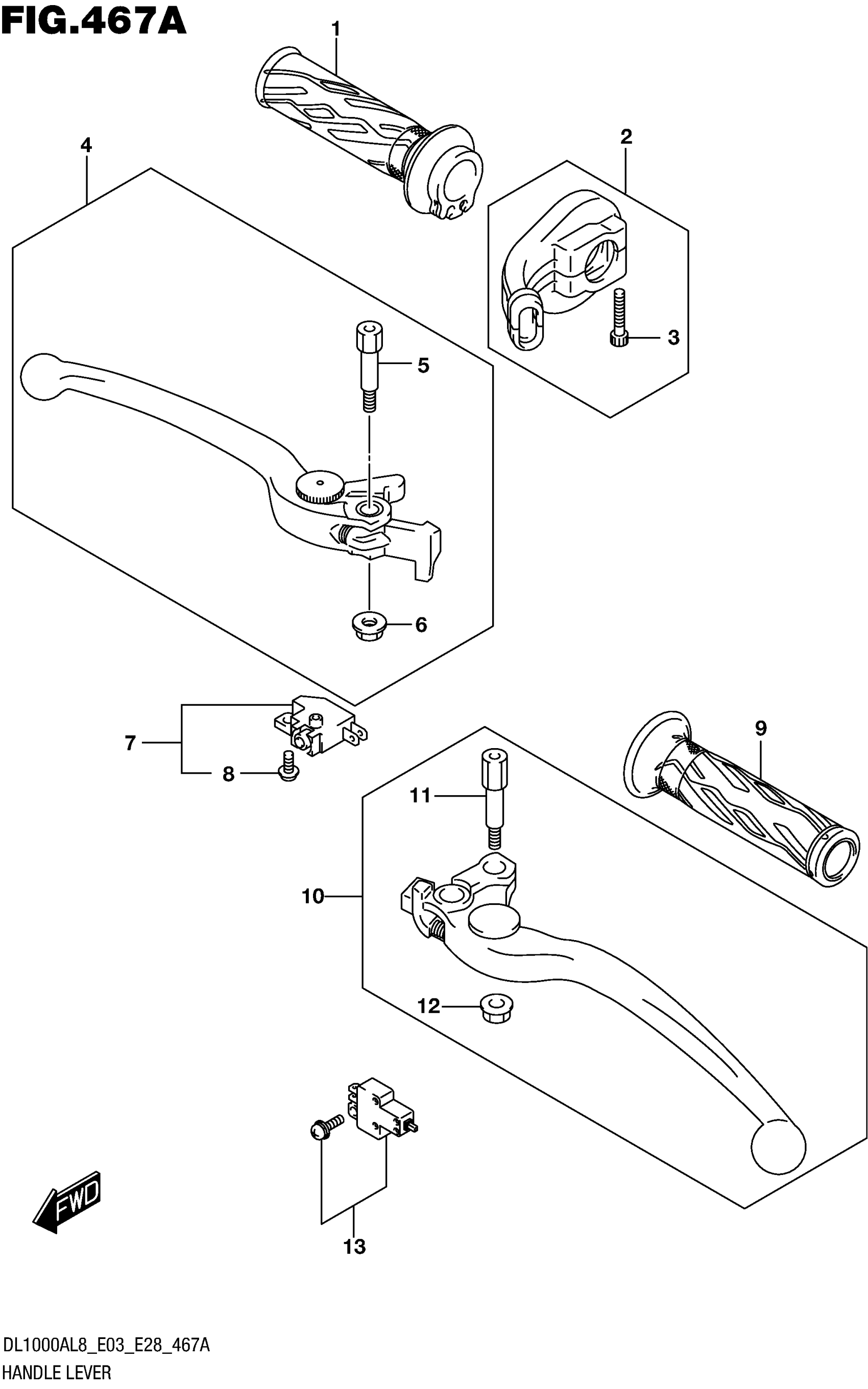

Suzuki DL1000XAL8 (2018) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$20.33

2

CASE ASSY,THROT This part replaces 57100-42F00.

57100-42F01

$54.75

3

.BOLT

07130-0525B

$2.52

4

LEVER ASSY, BRAKE

57300-10G50

$73.53

5

.BOLT, BRAKE LEVER PIVOT

57431-06GA0

$22.78

6

.NUT

08316-1606B

$2.93

7

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

8

.SCREW

57465-17C00

$2.19

9

GRIP LH

57211-21H01

$11.13

10

LEVER ASSY, CLUTCH

57500-06G20

$78.25

11

.BOLT

57431-06GB0

Unavailable

12

.NUT

08316-1606B

$2.93

13

SWITCH ASSY,CLUTCH

57560-02FA0

$23.58
