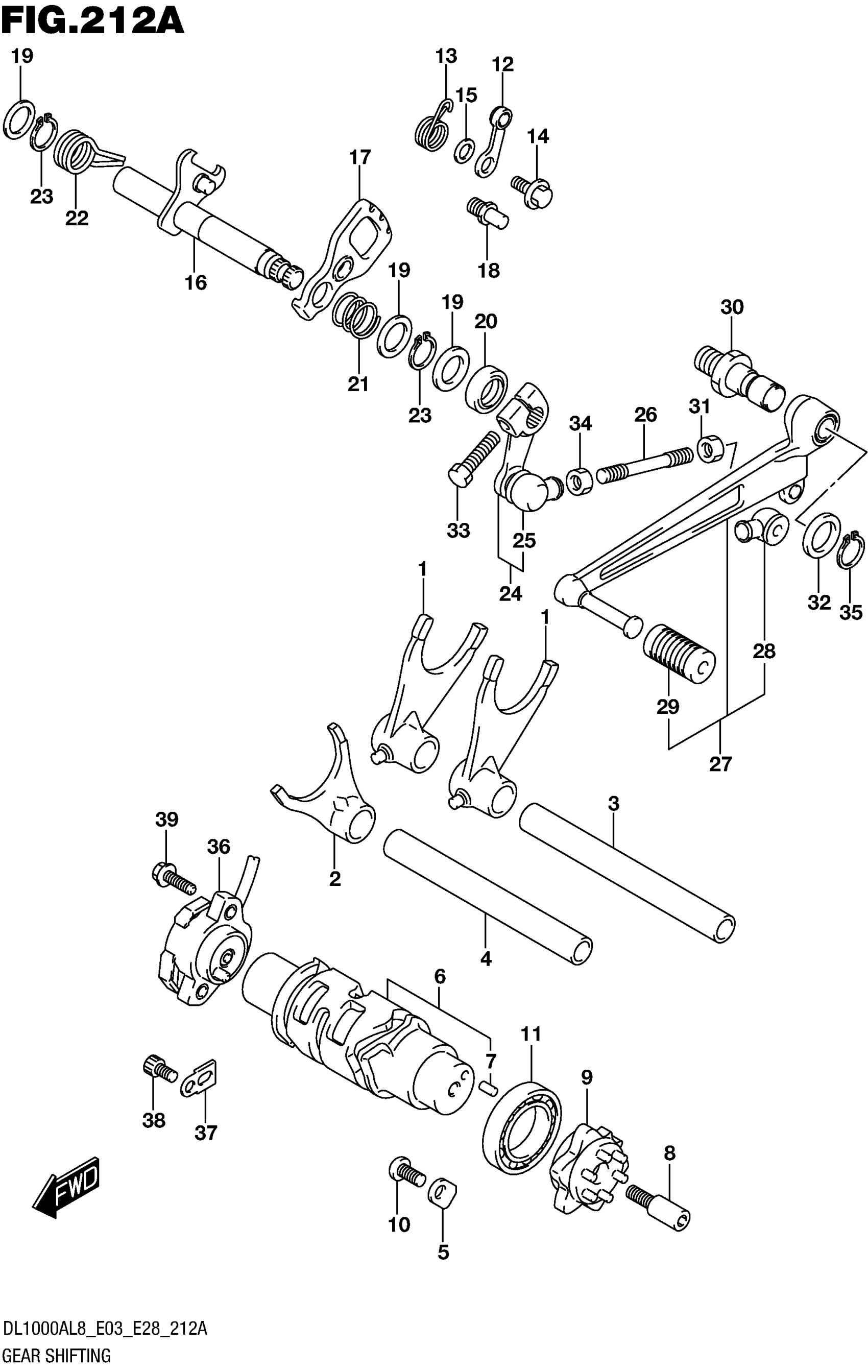

Suzuki DL1000XAL8 (2018) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT

25211-17E02

$72.60

2

FORK, GEAR SHIFT

25231-35F00

$105.82

3

SHAFT, GEAR SHIFT FORK NO.2

25411-02F20

$19.55

4

SHAFT, GEAR SHIFT FORK NO.1

25411-02F20

$19.55

5

RETAINER, SHIFT CAM

24741-21A00

$2.81

6

CAM,GEAR SHIFT

25310-31J00

Unavailable

7

PIN (4X13.8)

04221-04089

$1.49

8

BOLT, GEAR SHIFT CAM PLATE

25312-42F01

$7.95

9

PLATE, GEAR SHIFT

25381-13E30

$56.68

10

SCREW (6X12)

09125-06122

$2.44

11

BEARING

08113-69050

$35.66

12

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$18.03

13

SPRING, STOPPER ARM

25355-38F00

$4.88

14

BOLT (6X14.3)

09111-06041

$2.61

15

WASHER

08211-06141

$1.59

16

SHAFT,GEAR SHIFT

25510-06G10

$111.58

17

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$24.37

18

STOPPER, GEAR SHIFT

25671-01011

$4.48

19

SHIM (14X22X1)

09181-14167

$2.53

20

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

21

SPRING

09440-17009

$1.71

22

SPRING

09444-20001

$5.24

23

CIRCLIP

08331-3114A

$1.91

24

ARM,GEAR SHIFT This part replaces 25520-16G00.

25520-16G01

$45.27

25

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

26

ROD,GEAR SHIFT LINK (L:90)

25525-11C00

$8.33

27

LEVER ASSY,GEAR SHIFT This part replaces 25600-31J00.

25600-31J01

$101.35

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

29

.RUBBER

25652-20C00

$5.44

30

SHAFT, GEAR SHIFT LEVER

25617-03F10

$12.33

31

NUT

09140-06025

$2.05

32

WASHER (12.5X20X1)

09160-12011

$1.54

33

BOLT

01547-0625A

$2.01

34

NUT

08310-0006A

$1.84

35

CIRCLIP

08331-3112A

$1.78

36

SENSOR ASSY,GEA This part replaces 37730-31J00.

37730-31J01

$77.94

37

CLAMP, GEAR SHIFT

31497-45000

$1.92

38

BOLT

07130-0510A

$2.68

39

BOLT (5X16)

09106-05023

$2.92
